Tire Pressure Monitoring System Control Module Connector End View
Tire Pressure Monitoring System Control Module Connector End View

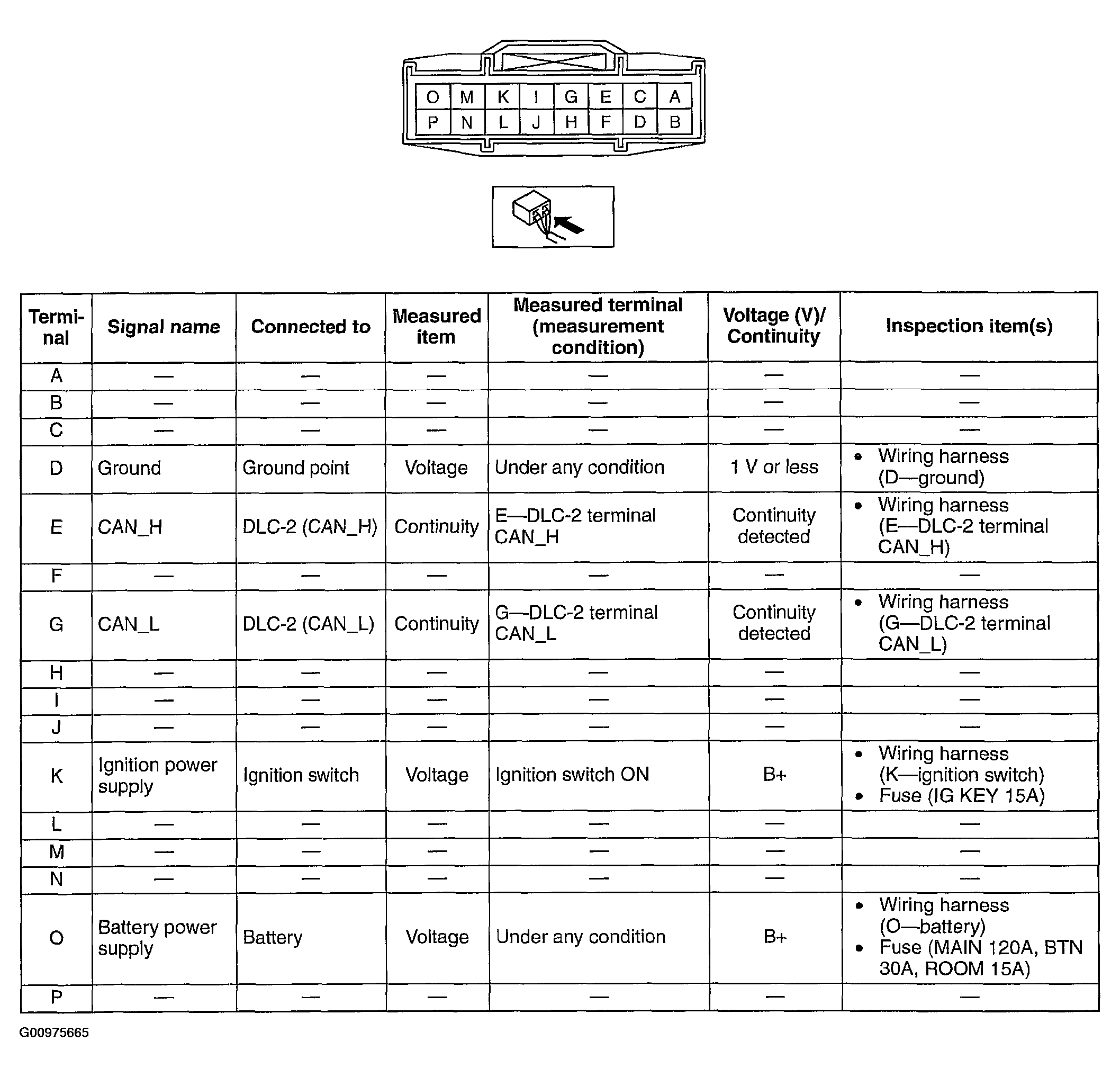

Fig 1: Tire Pressure Monitoring System Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
