Keyless Control Module Connector End View

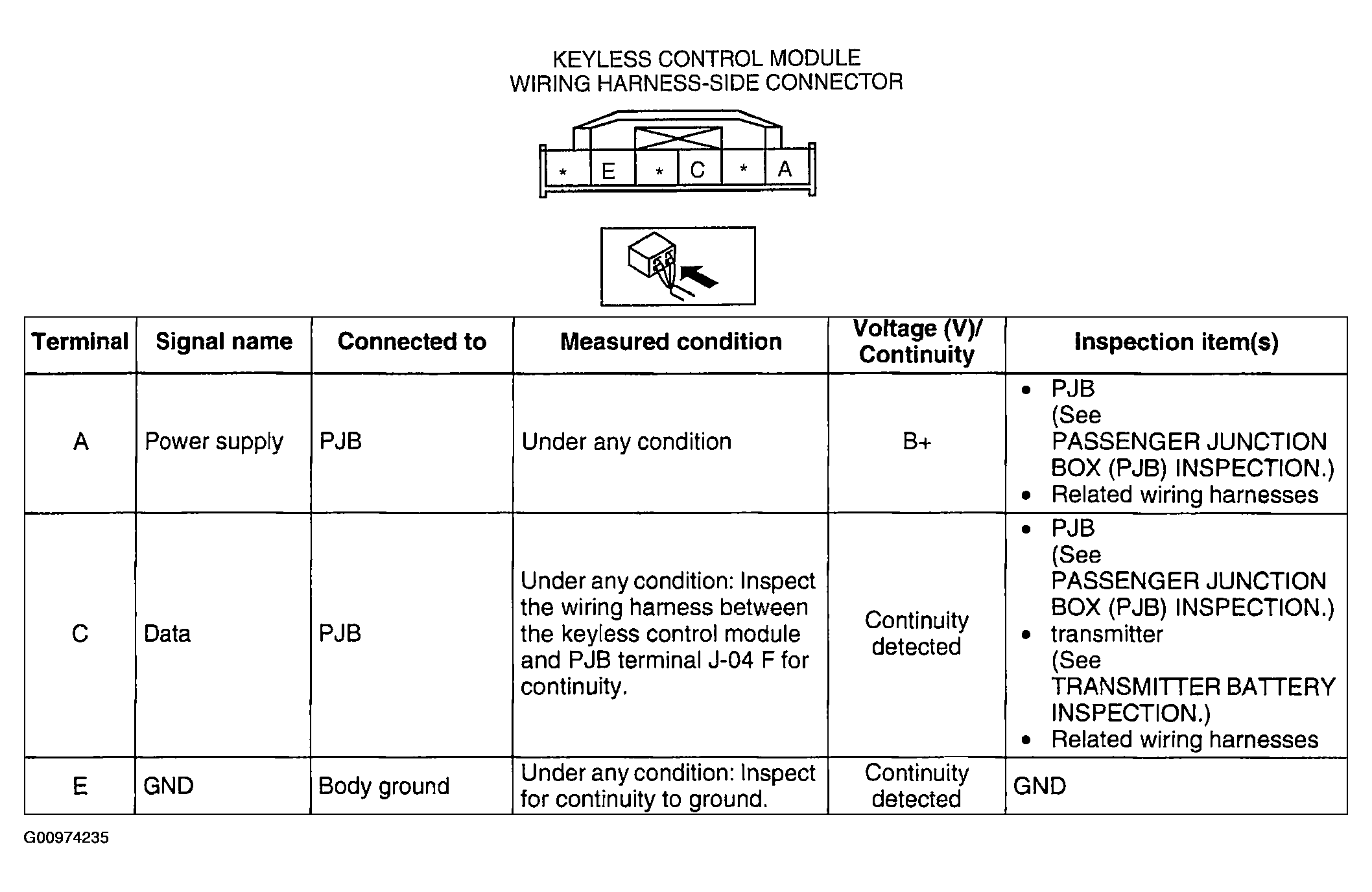

Fig 1: Keyless Control Module Connector End View
G00974235Courtesy of MAZDA MOTORS CORP.

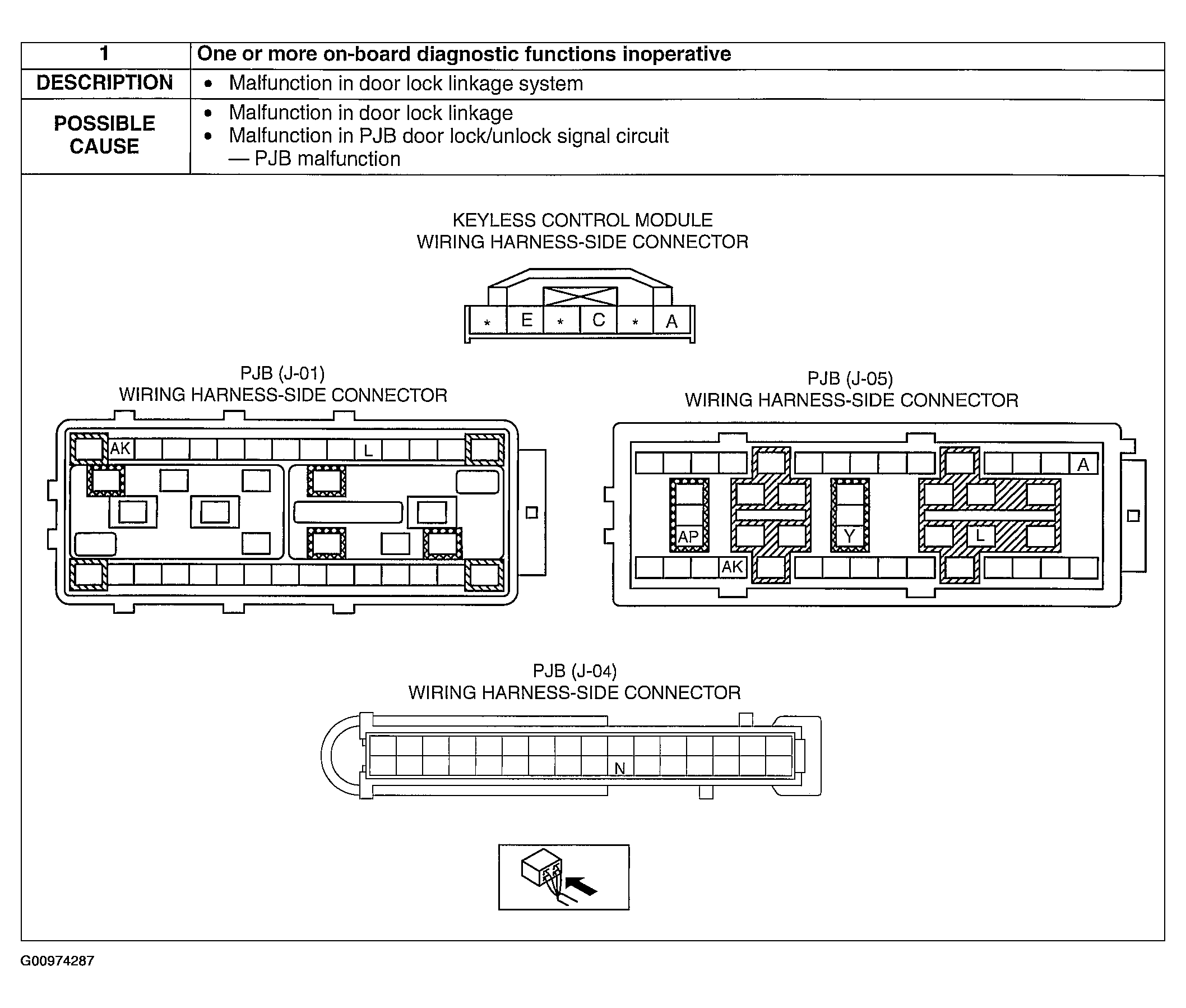

Fig 1: Keyless Control Module Connector End View
G00974287Courtesy of MAZDA MOTORS CORP.
