Climate Control Unit Connector End View

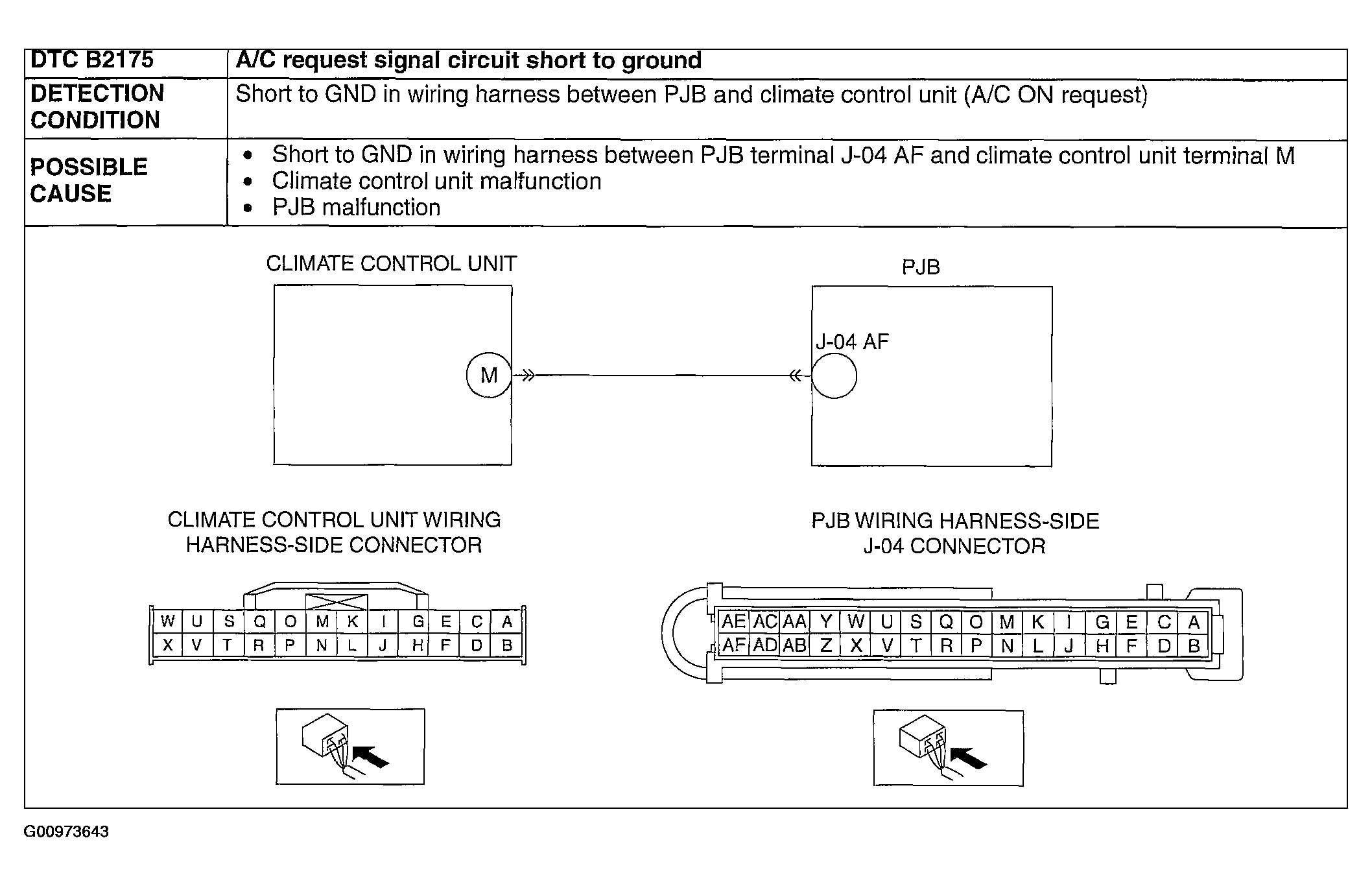

Fig 1: Climate Control Unit Connector End View
G00973643Courtesy of MAZDA MOTORS CORP.


Fig 1: Climate Control Unit Connector End View
G00973588Courtesy of MAZDA MOTORS CORP.

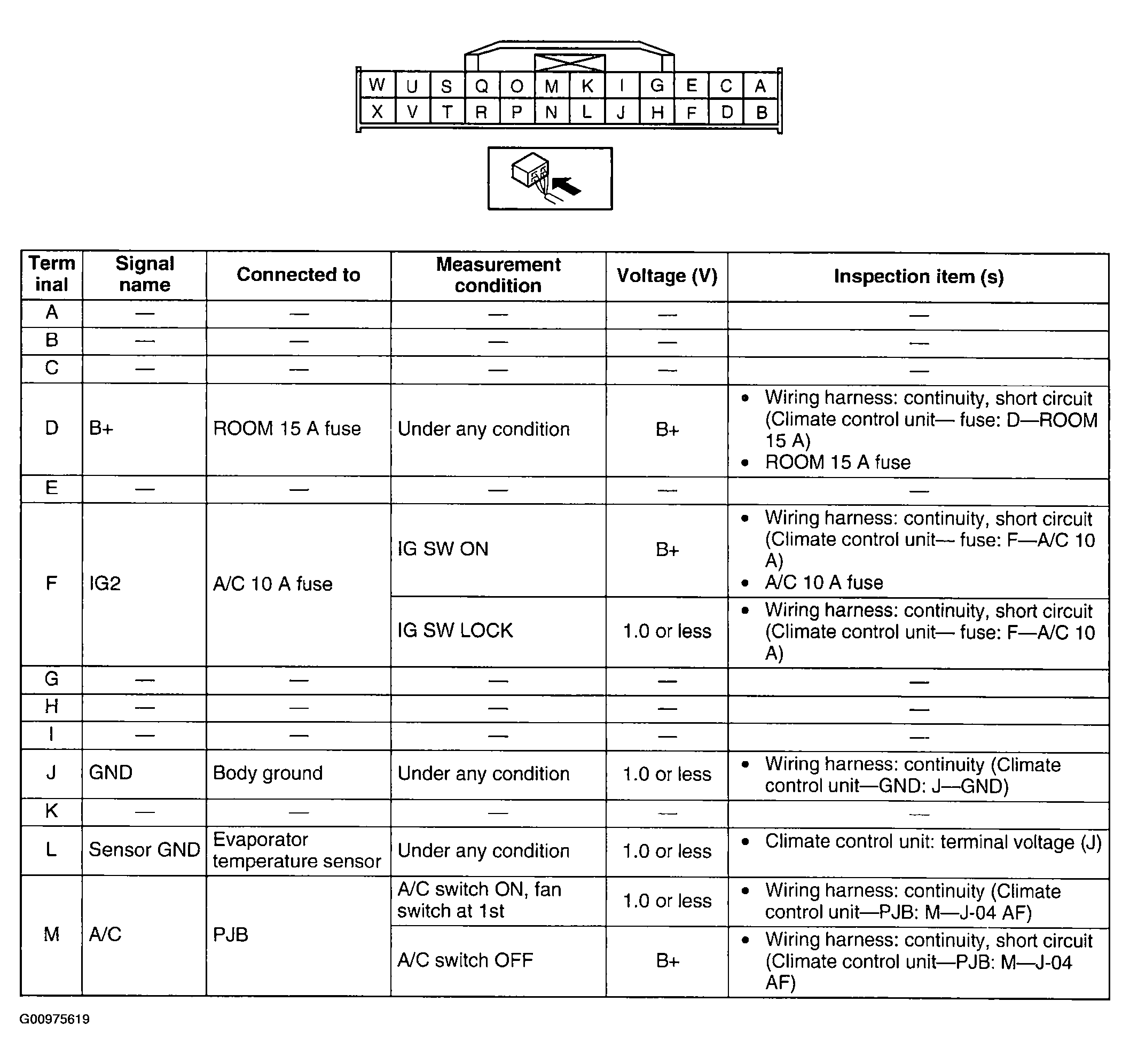

Fig 1: Climate Control Unit Connector End View
G00975619Courtesy of MAZDA MOTORS CORP.

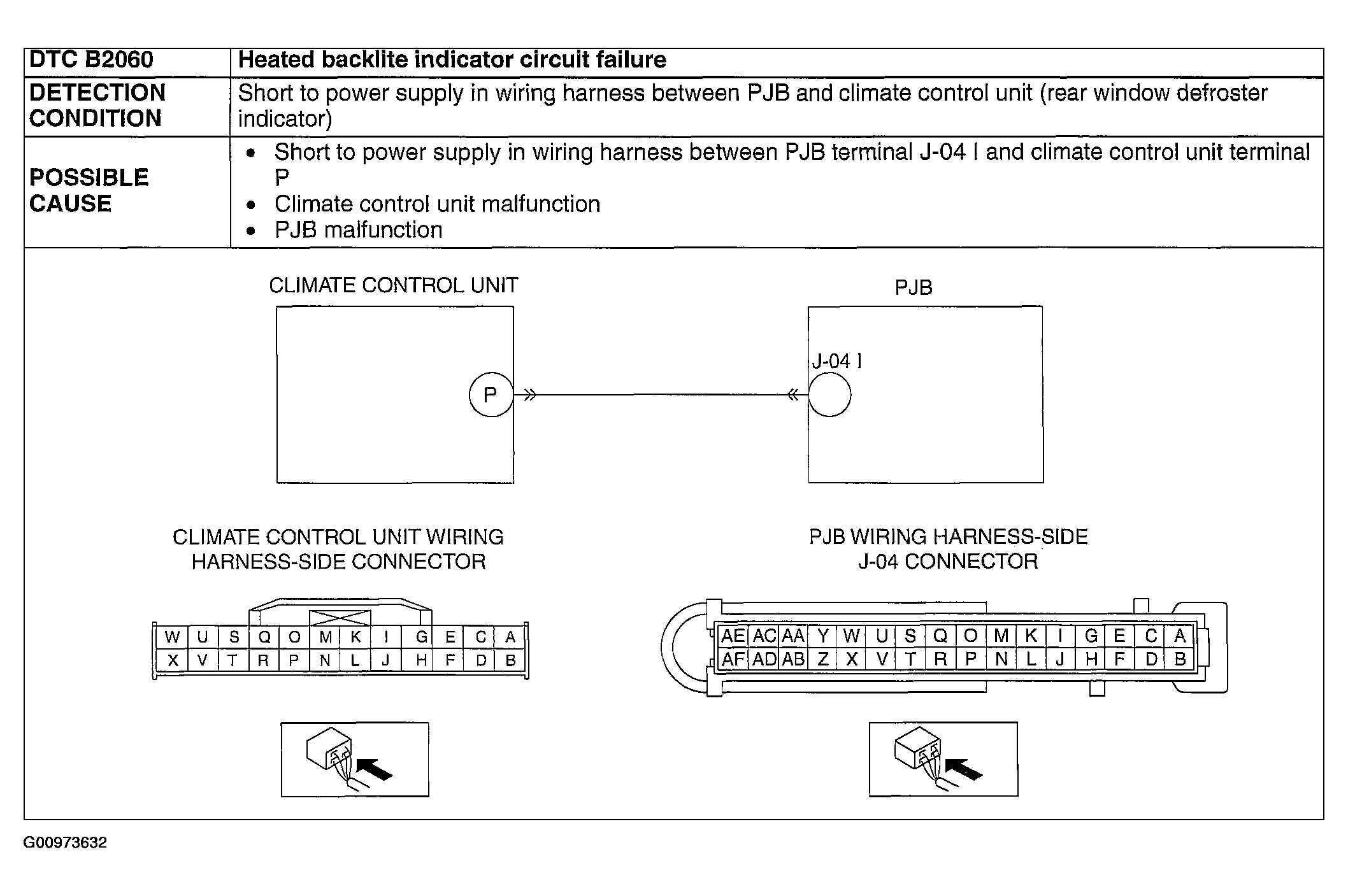

Fig 1: Climate Control Unit Connector End View
G00973632Courtesy of MAZDA MOTORS CORP.
