How To Use This Manual: Symbols

There are eight symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent. These symbols show application points or use of these materials during service.

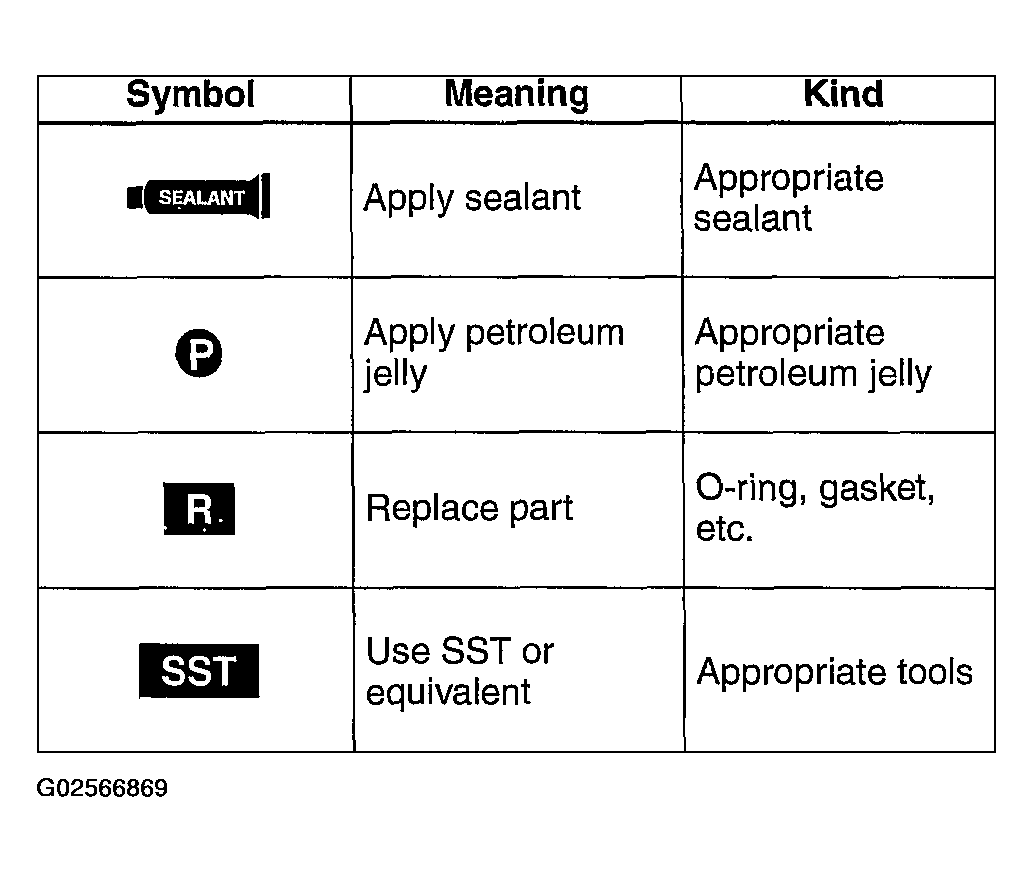

Fig 1: Identifying Symbols (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

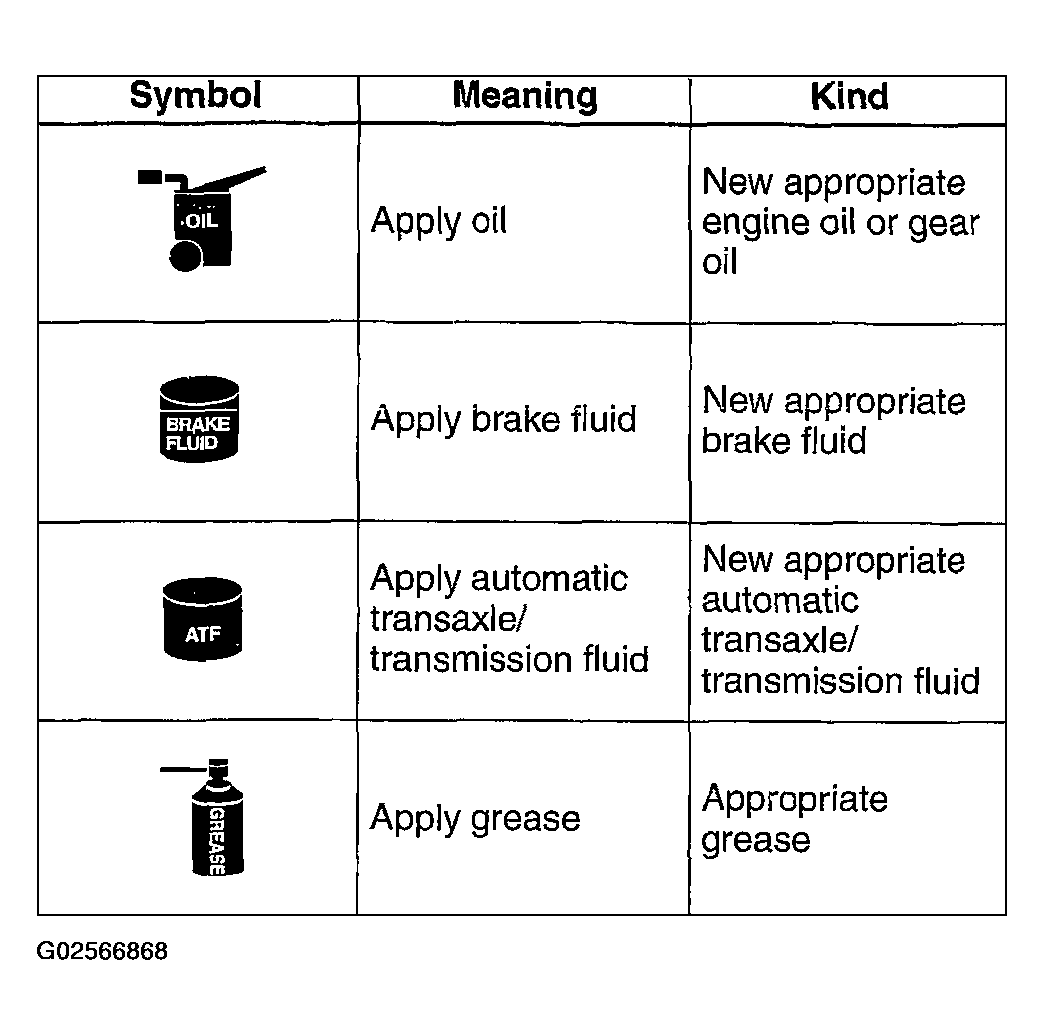

Fig 2: Identifying Symbols (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
