Electrical System: Connectors: Inspection

• When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

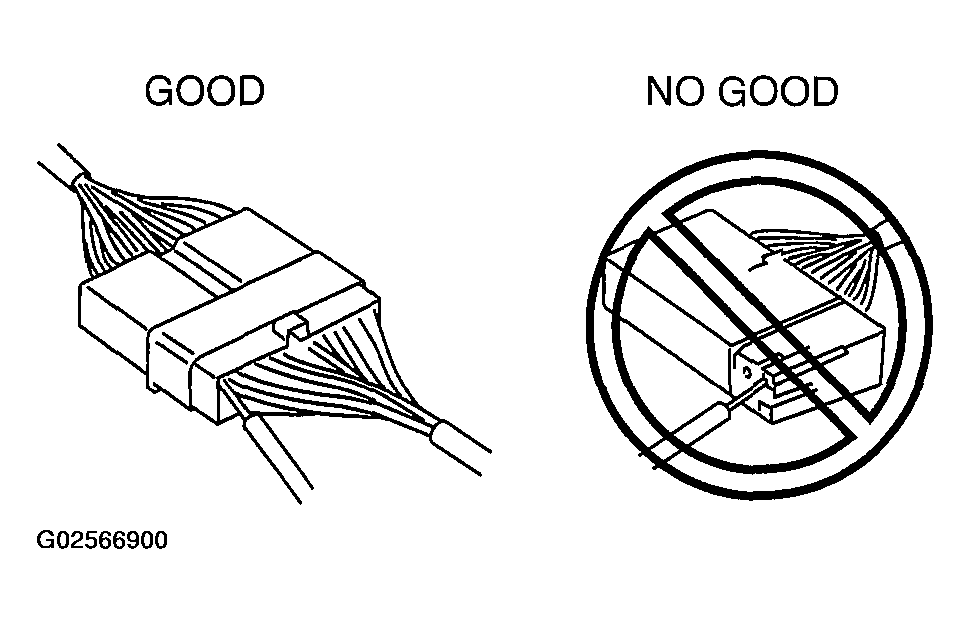

  Fig 1: Inspecting Continuity Or Measuring Voltage Using Tester

  Courtesy of MAZDA MOTORS CORP.
• Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

CAUTION:

• To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.

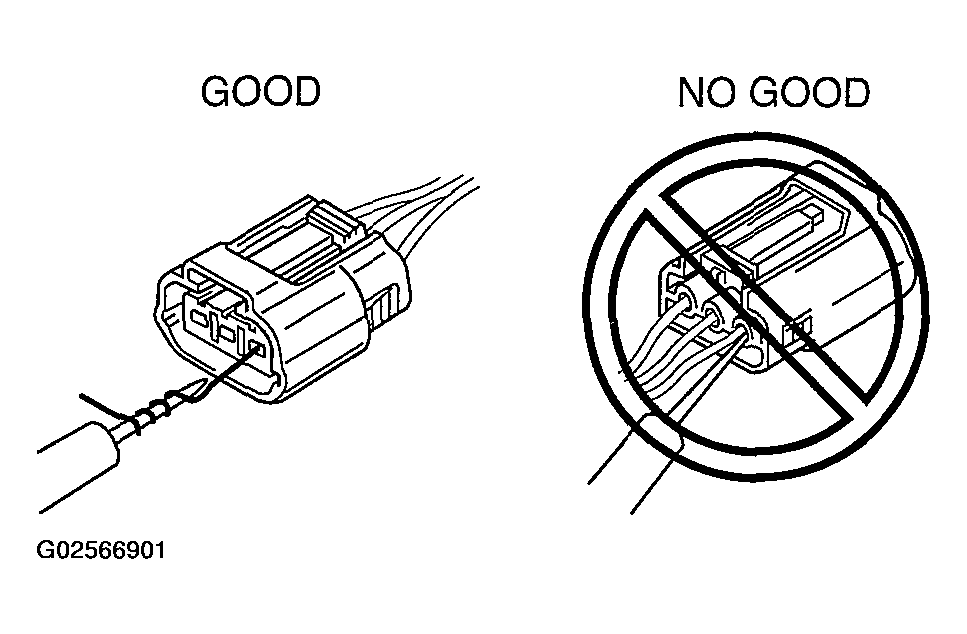

Fig 2: Inspecting Waterproof Connector Terminals Using Tester

Courtesy of MAZDA MOTORS CORP.
