Diagnostic procedure

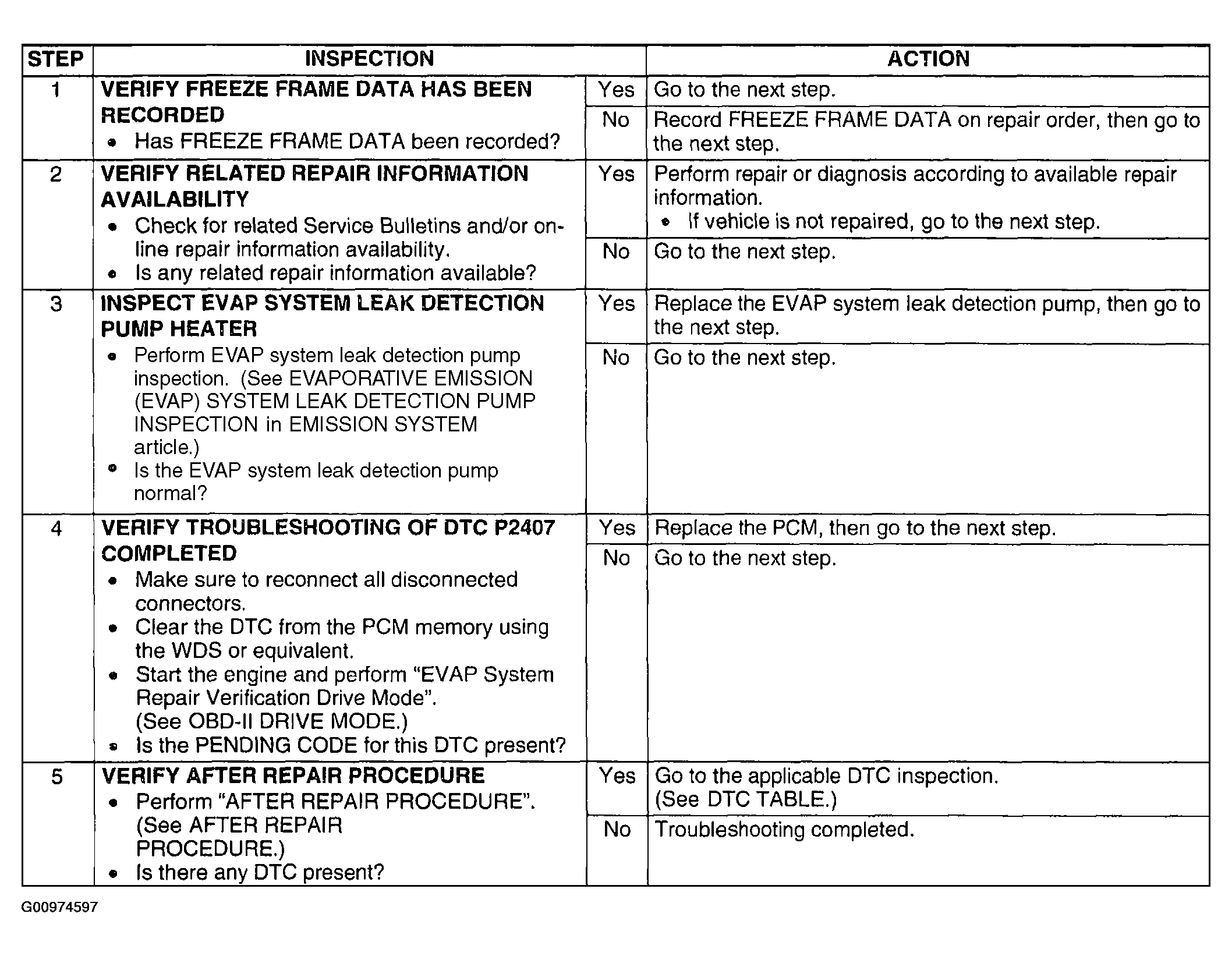

Fig 1: DTC P2407: Diagnostic Procedure Chart (Steps 1-5)
G00974597Courtesy of MAZDA MOTORS CORP.
