Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2405: EVAP System Leak Detection Pump Sense Circuit Low Input >> Diagnostic procedure

Diagnostic procedure

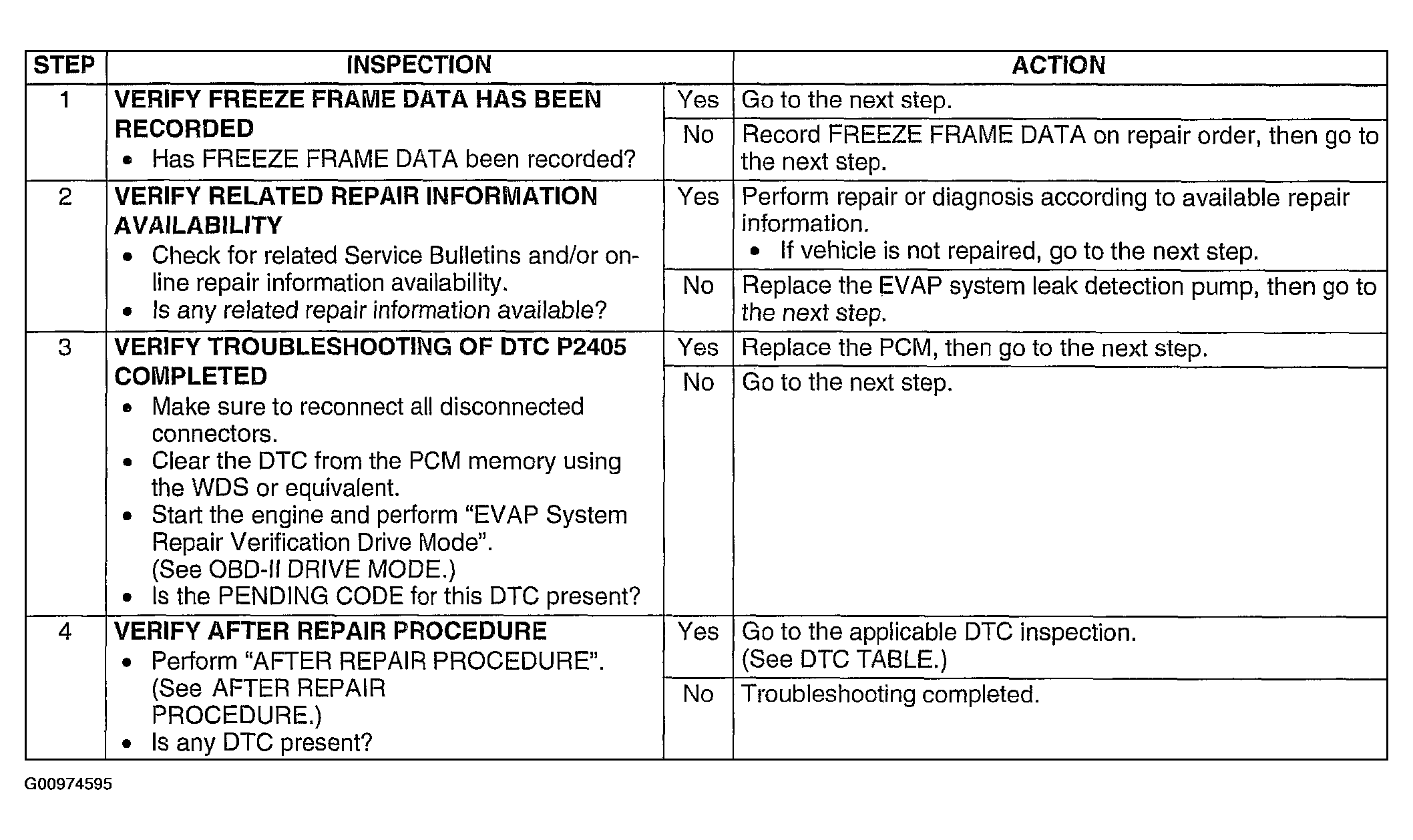

Fig 1: DTC P2405: Diagnostic Procedure Chart (Steps 1-4)
G00974595Courtesy of MAZDA MOTORS CORP.
