DTC P2404: EVAP System Leak Detection Pump Sense Circuit Problem
>>
Diagnostic procedure
Diagnostic procedure

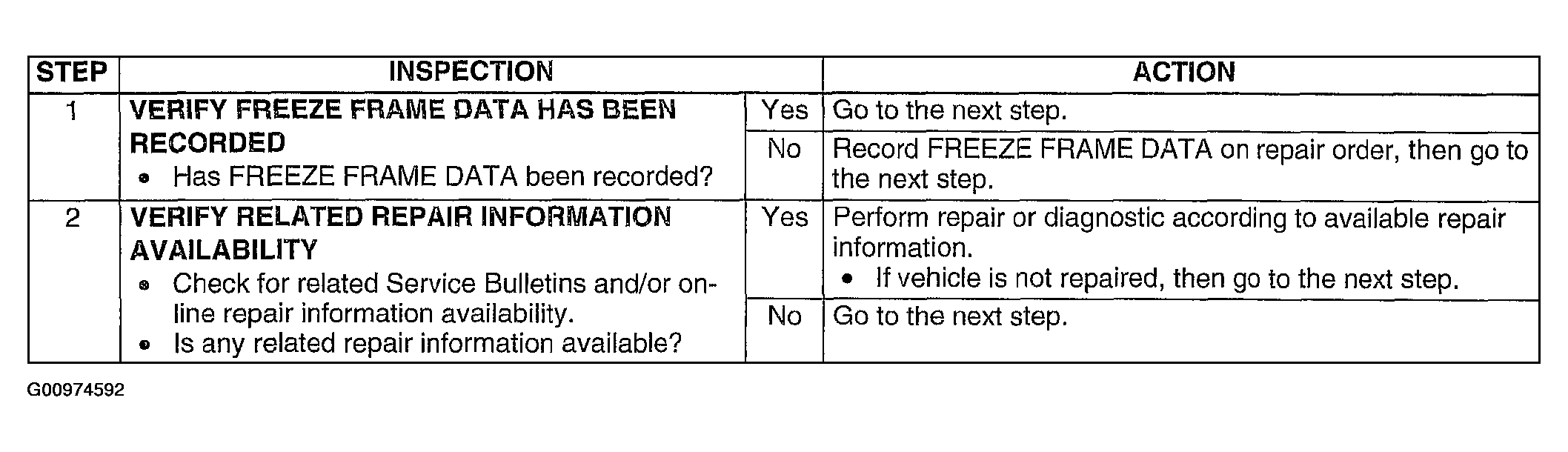

Fig 1: DTC P2404: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

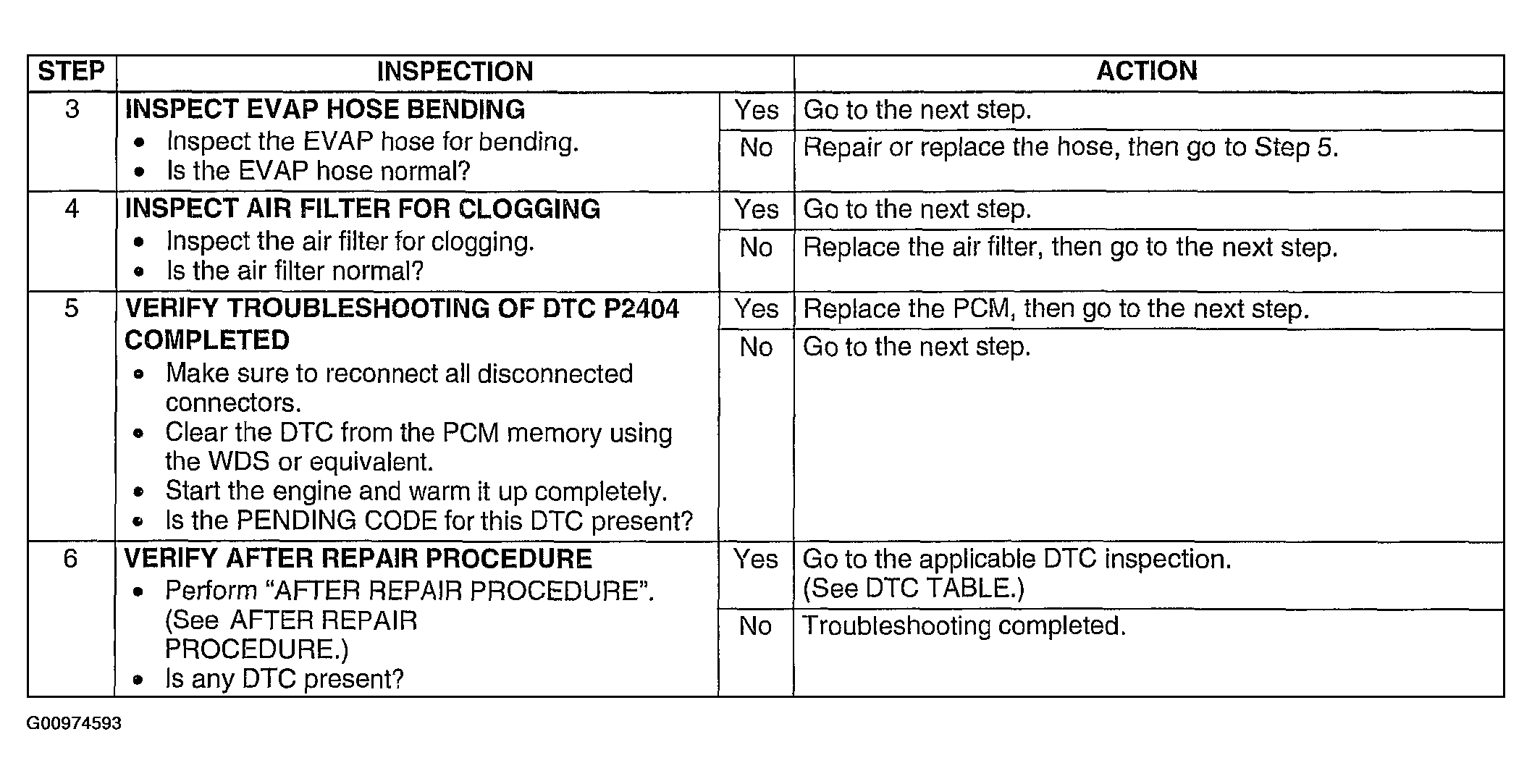

Fig 2: DTC P2404: Diagnostic Procedure Chart (Steps 3-6)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
