Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2402: EVAP System Leak Detection Pump Motor Circuit High >> Notes

DTC P2402: EVAP System Leak Detection Pump Motor Circuit High: Notes

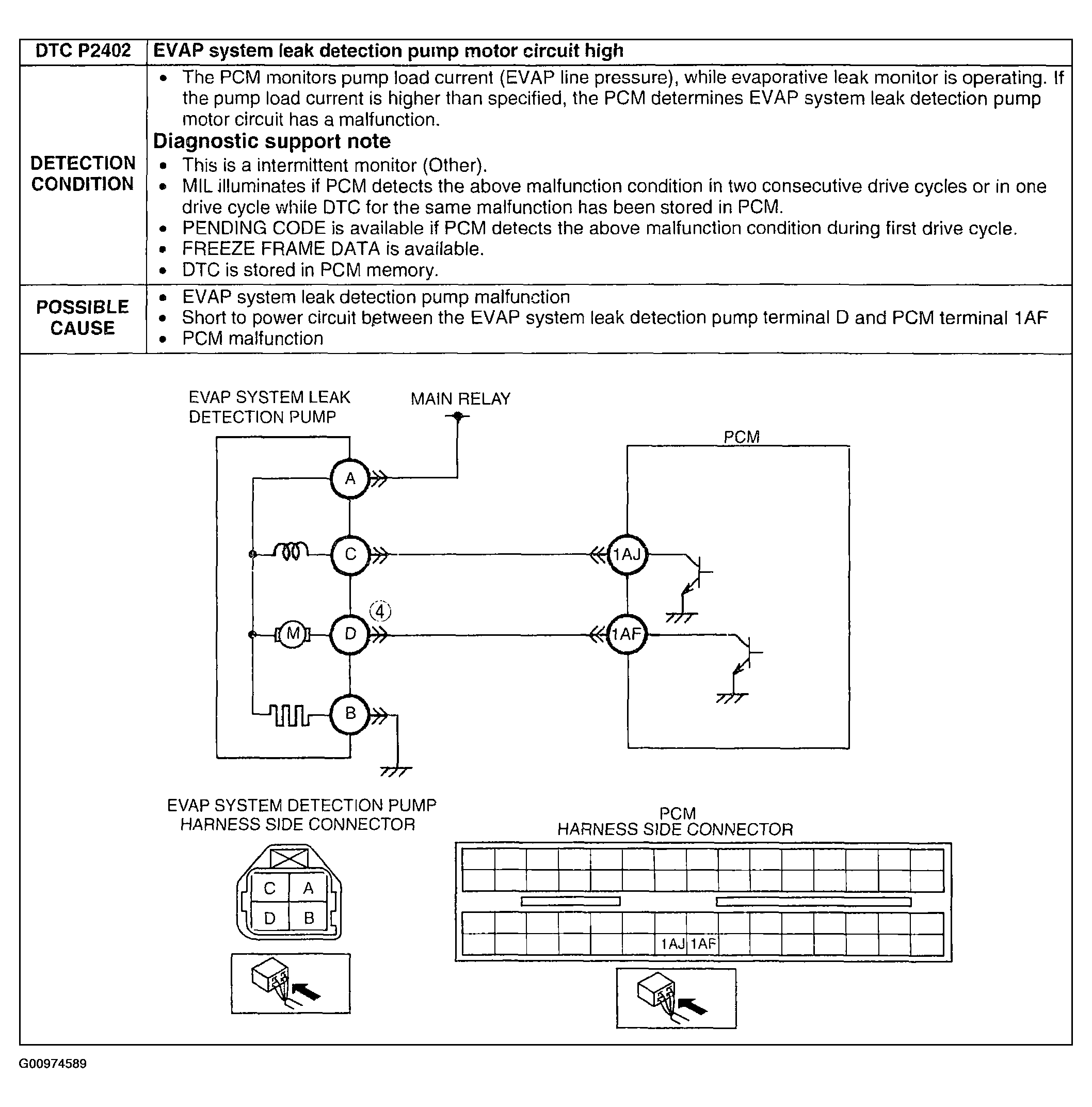

Fig 1: DTC P2402: Detection Condition & Possible Causes Chart

G00974589

Courtesy of MAZDA MOTORS CORP.
