DTC P2401: EVAP System Leak Detection Pump Motor Circuit Low
>>
Diagnostic procedure
Diagnostic procedure
Fig 1: DTC P2401: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.

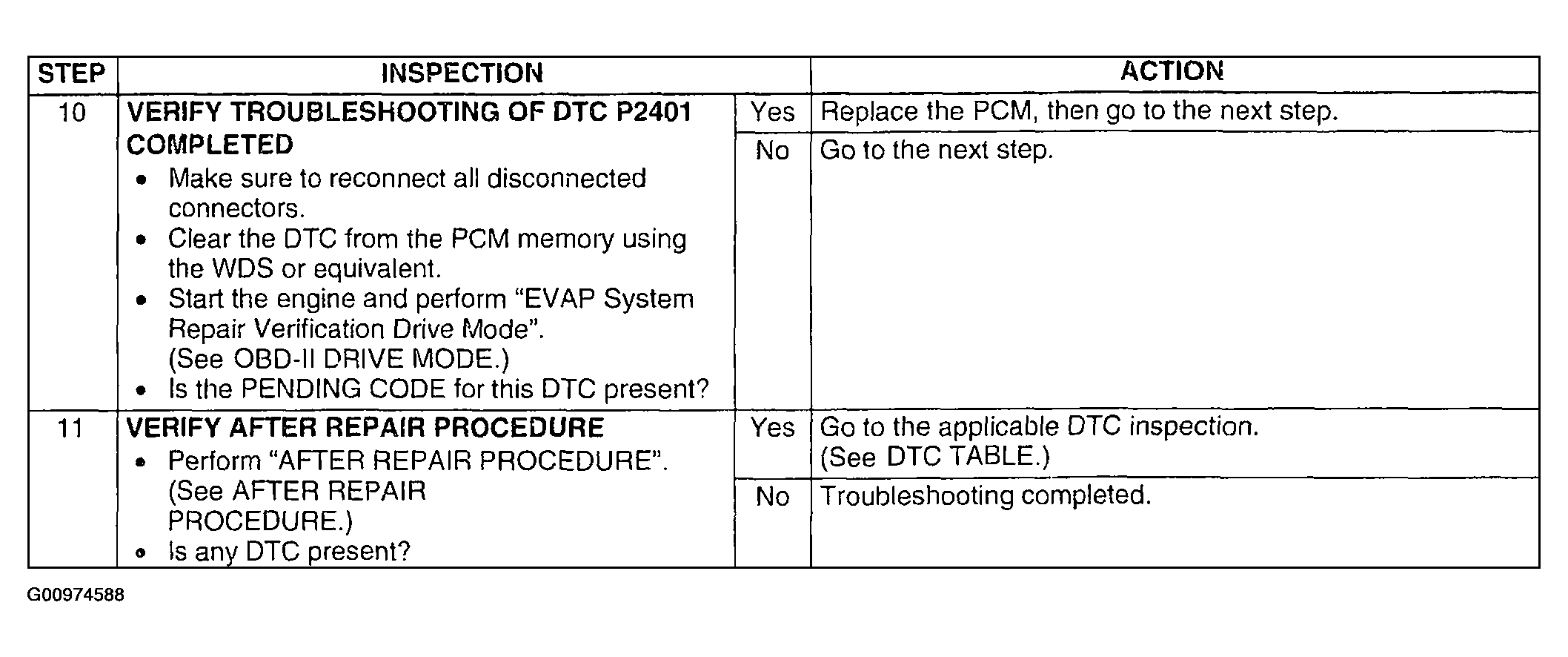

Fig 2: DTC P2401: Diagnostic Procedure Chart (Steps 10 & 11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
