Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2177: Fuel System Too Lean At Off Idle >> Notes

DTC P2177: Fuel System Too Lean At Off Idle: Notes

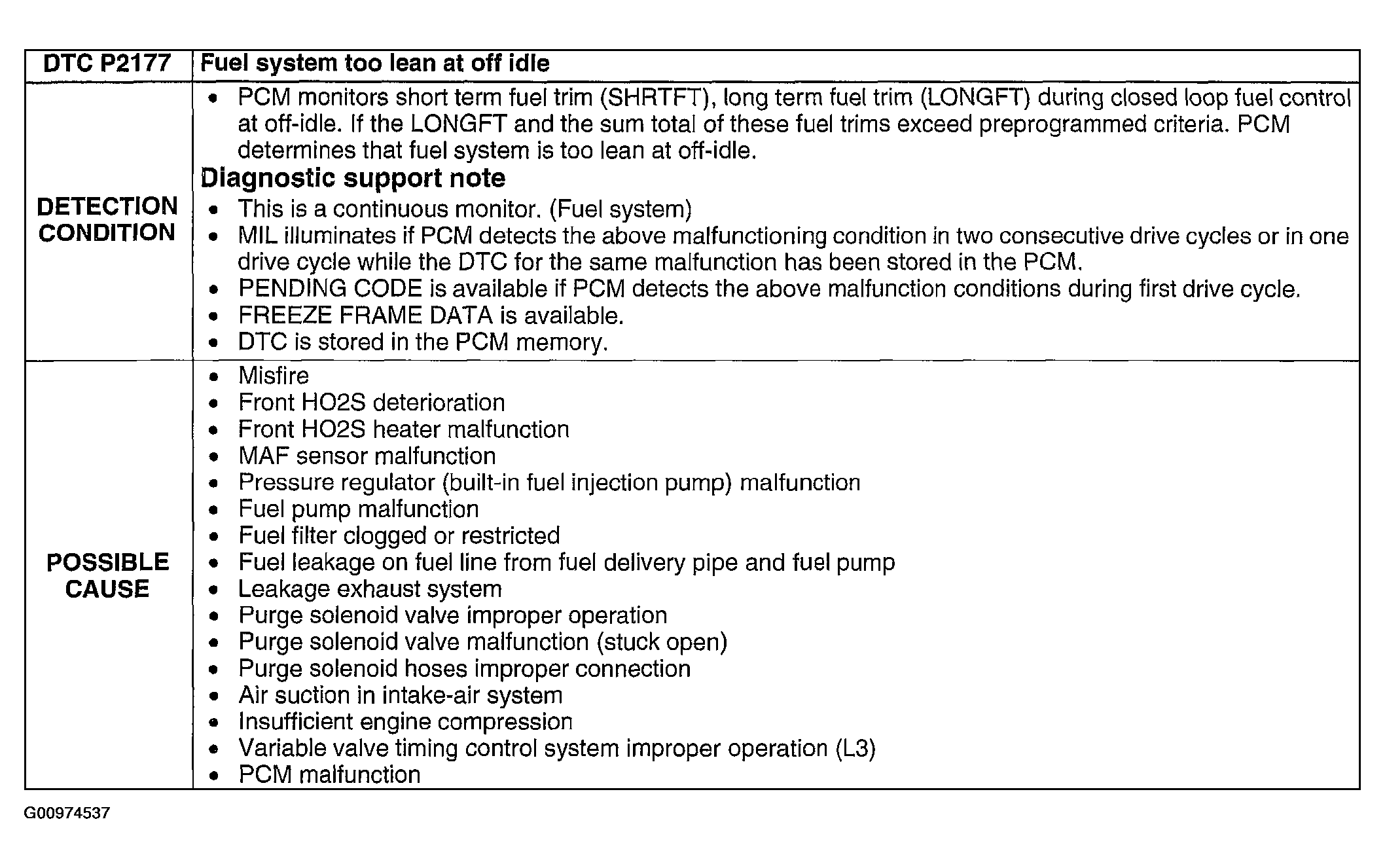

Fig 1: DTC P2177: Detection Condition & Possible Causes Chart

G00974537

Courtesy of MAZDA MOTORS CORP.
