DTC P2128: App Sensor No. 2 Circuit High Input: Notes

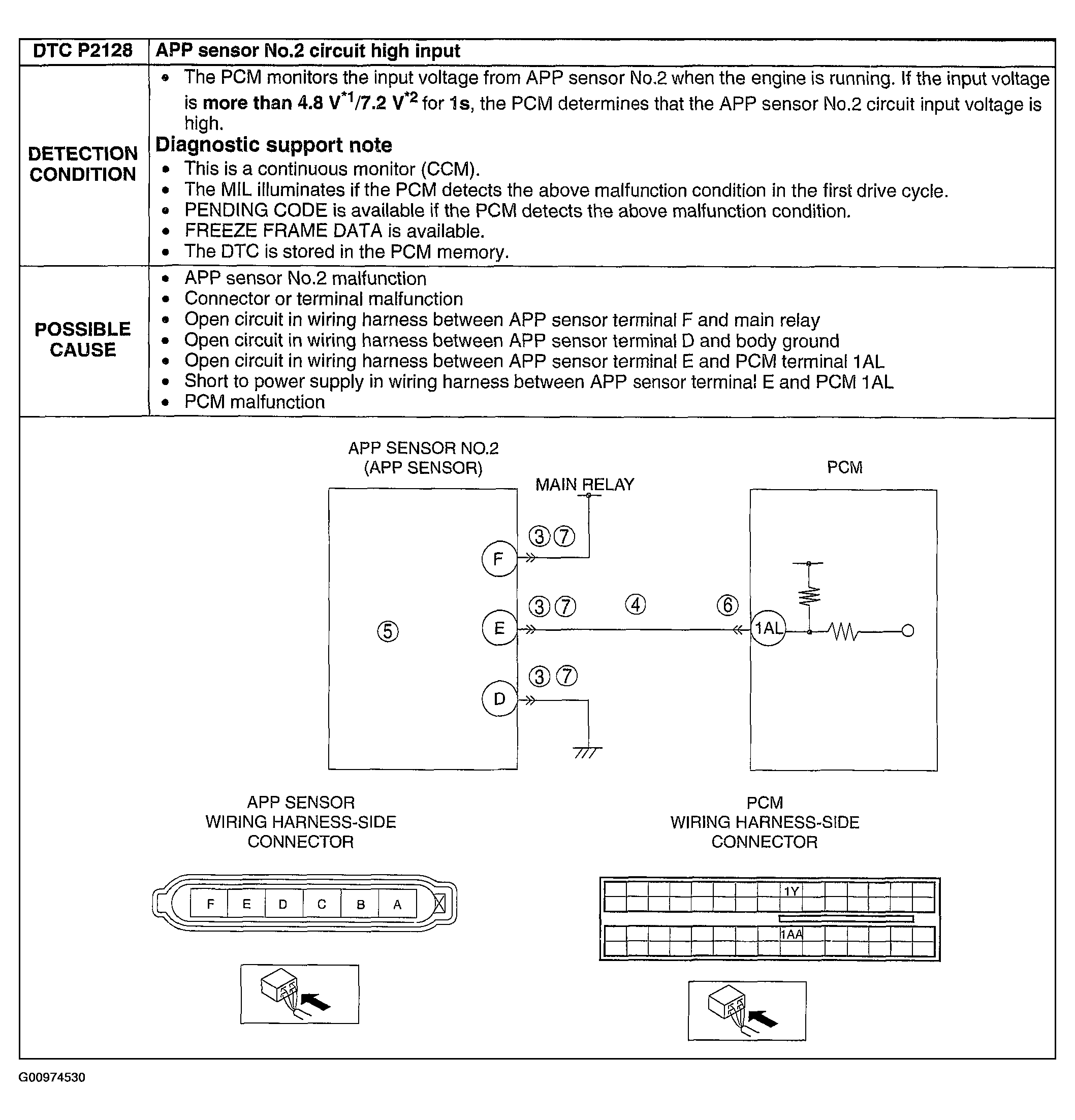

Fig 1: DTC P2128: Detection Condition & Possible Causes Chart

G00974530

Courtesy of MAZDA MOTORS CORP.
