DTC P2128: App Sensor No. 2 Circuit High Input
>>
Diagnostic procedure
Diagnostic procedure

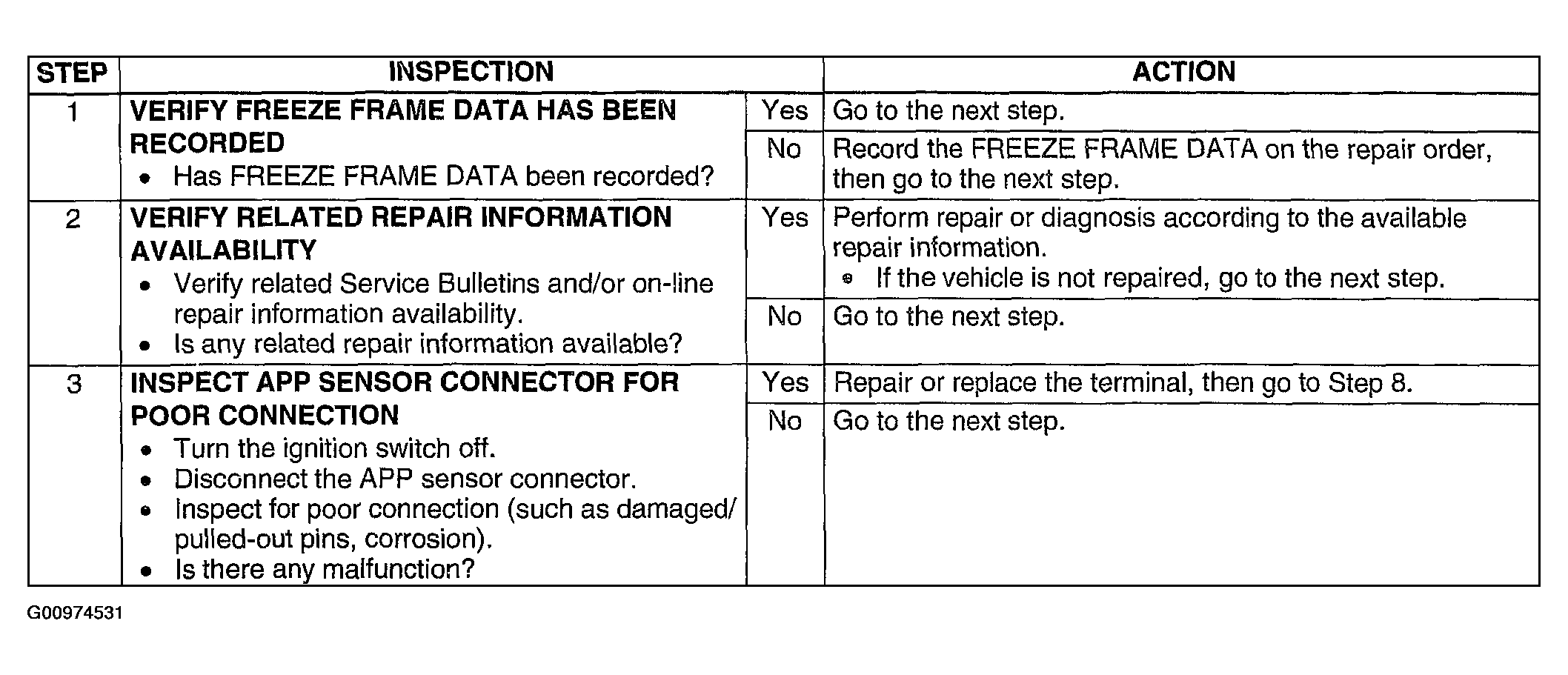

Fig 1: DTC P2128: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

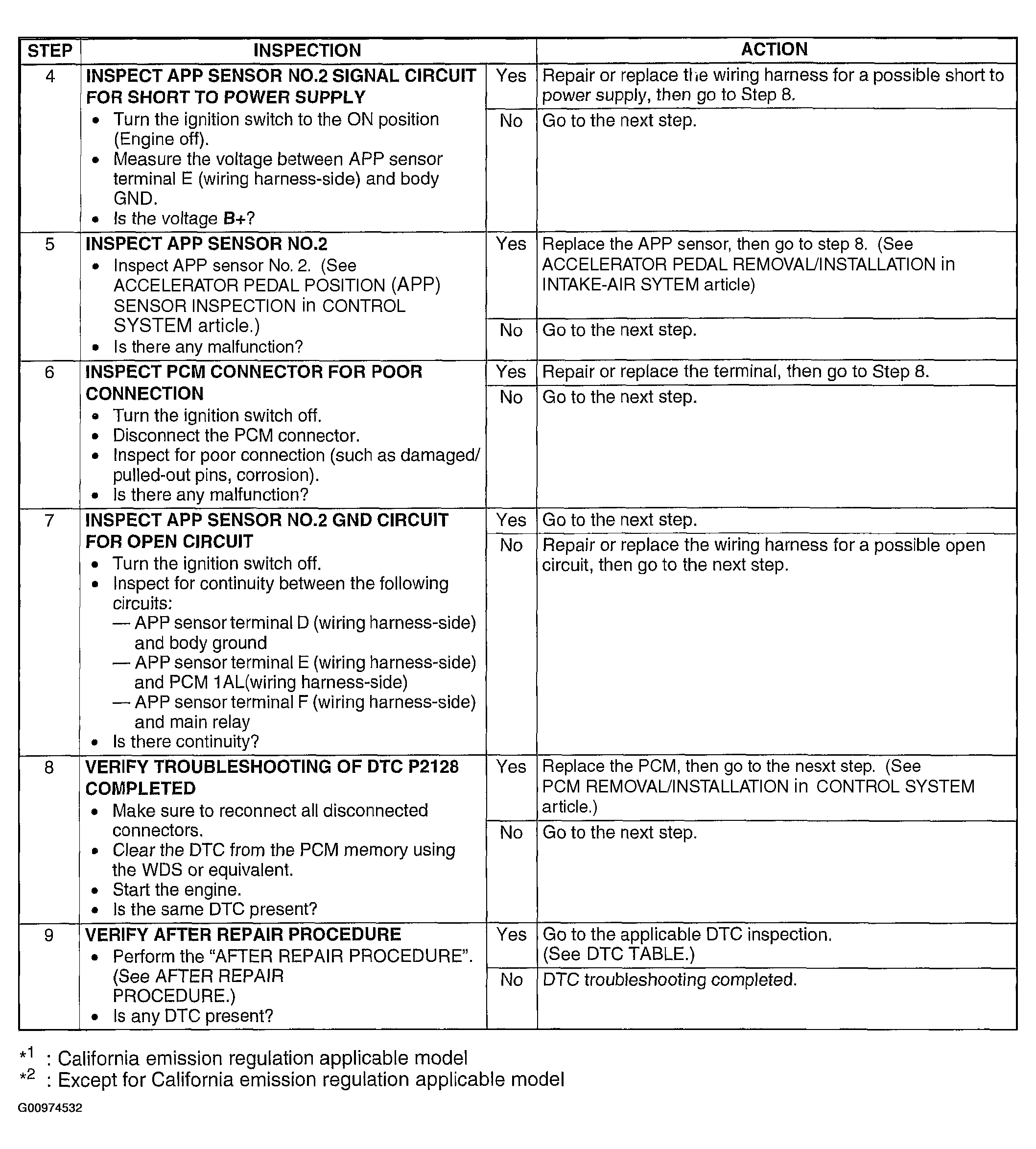

Fig 2: DTC P2128: Diagnostic Procedure Chart (Steps 4-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
