DTC P2122: Accelerator Pedal Position Sensor No. 1 Circuit Low Input
>>
Notes
DTC P2122: Accelerator Pedal Position Sensor No. 1 Circuit Low Input: Notes

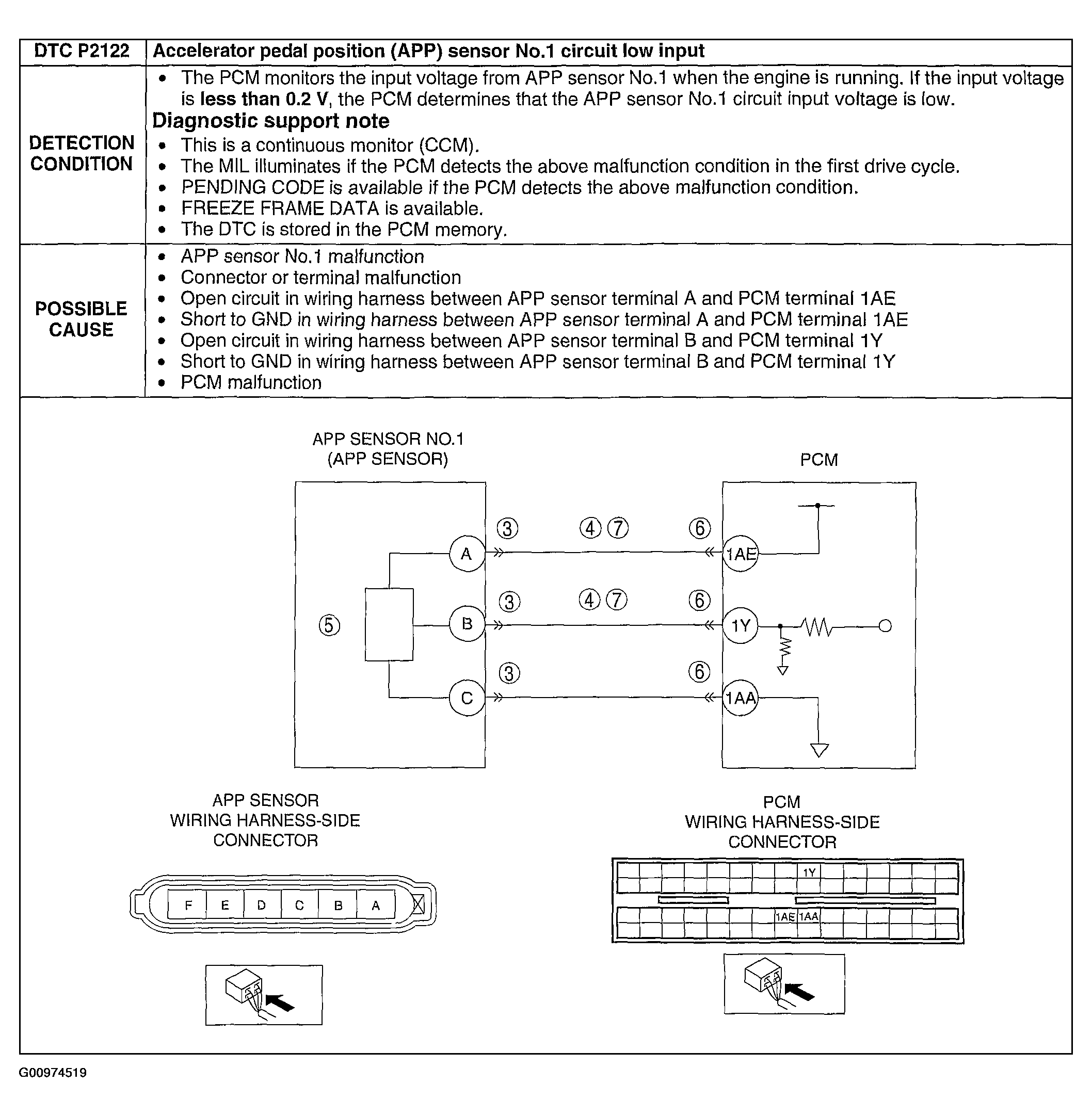

Fig 1: DTC P2122: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
