DTC P2122: Accelerator Pedal Position Sensor No. 1 Circuit Low Input
>>
Diagnostic procedure
Diagnostic procedure

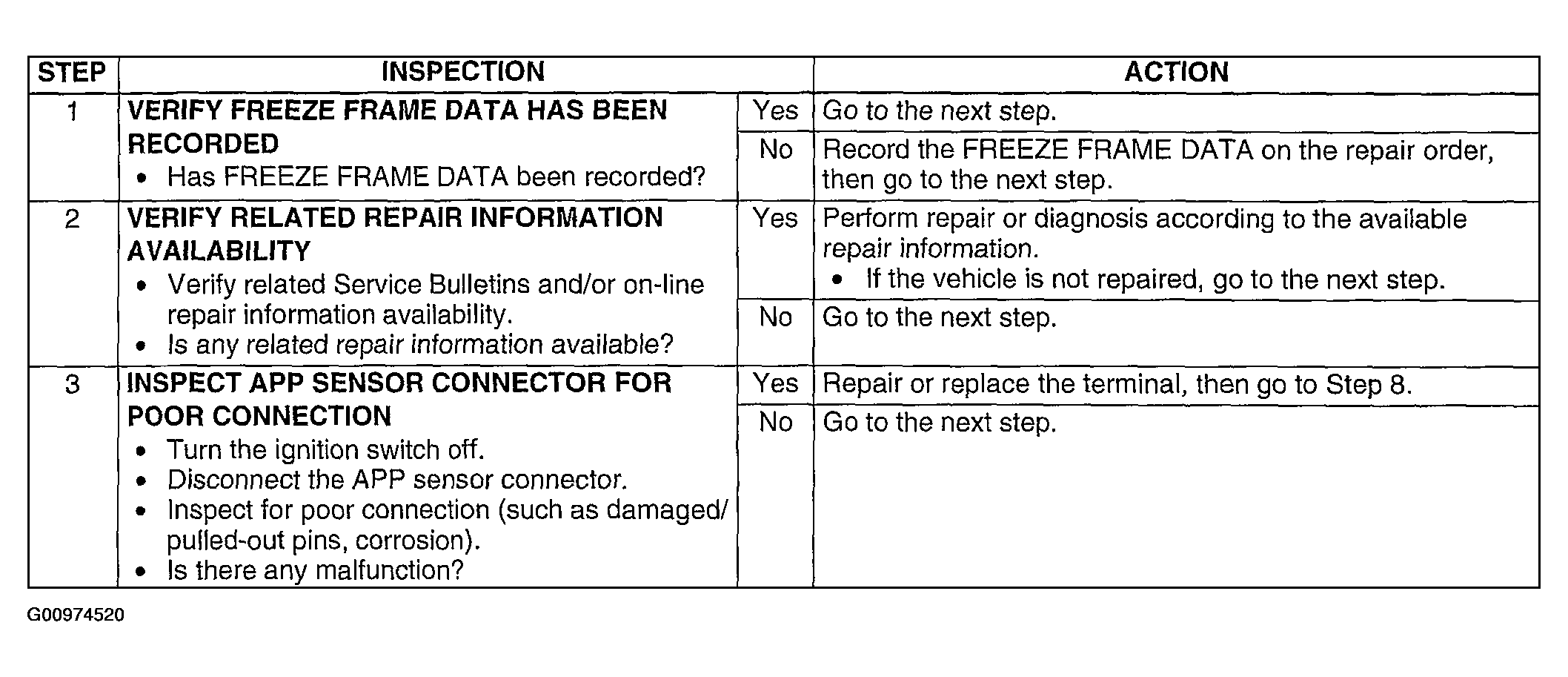

Fig 1: DTC P2122: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

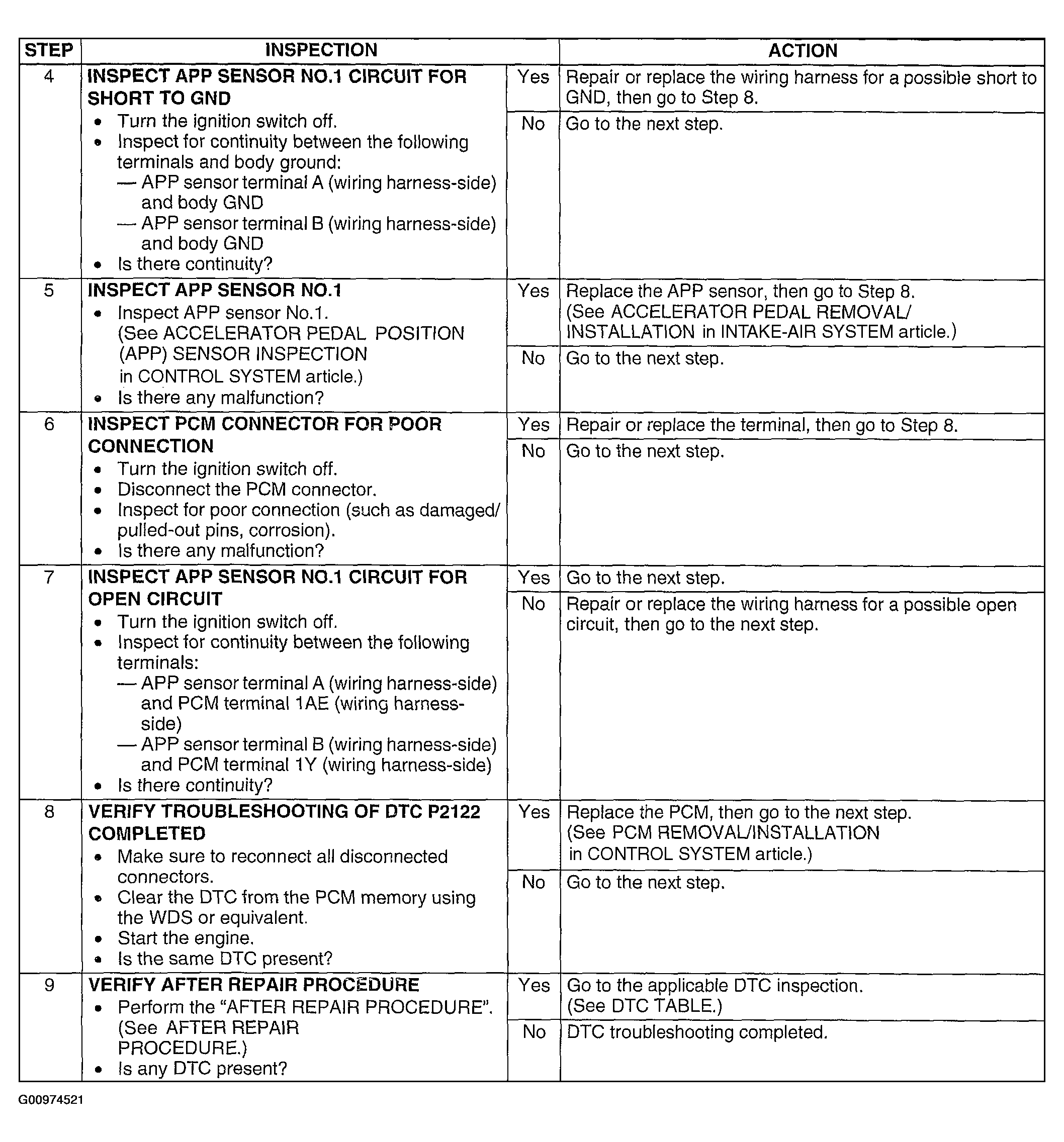

Fig 2: DTC P2122: Diagnostic Procedure Chart (Steps 4-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
