DTC P2112: Throttle Actuator Control System Range/Performance Problem: Notes

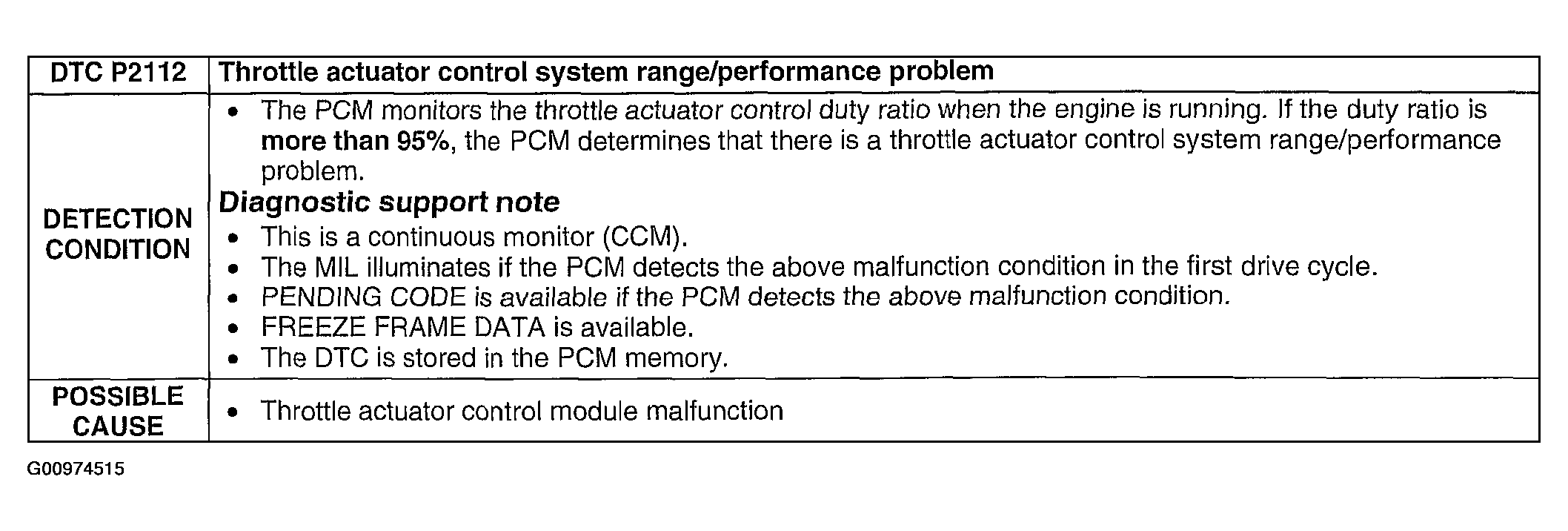

Fig 1: DTC P2112: Detection Condition & Possible Causes Chart

G00974515

Courtesy of MAZDA MOTORS CORP.
