DTC P2112: Throttle Actuator Control System Range/Performance Problem
>>
Diagnostic procedure
Diagnostic procedure

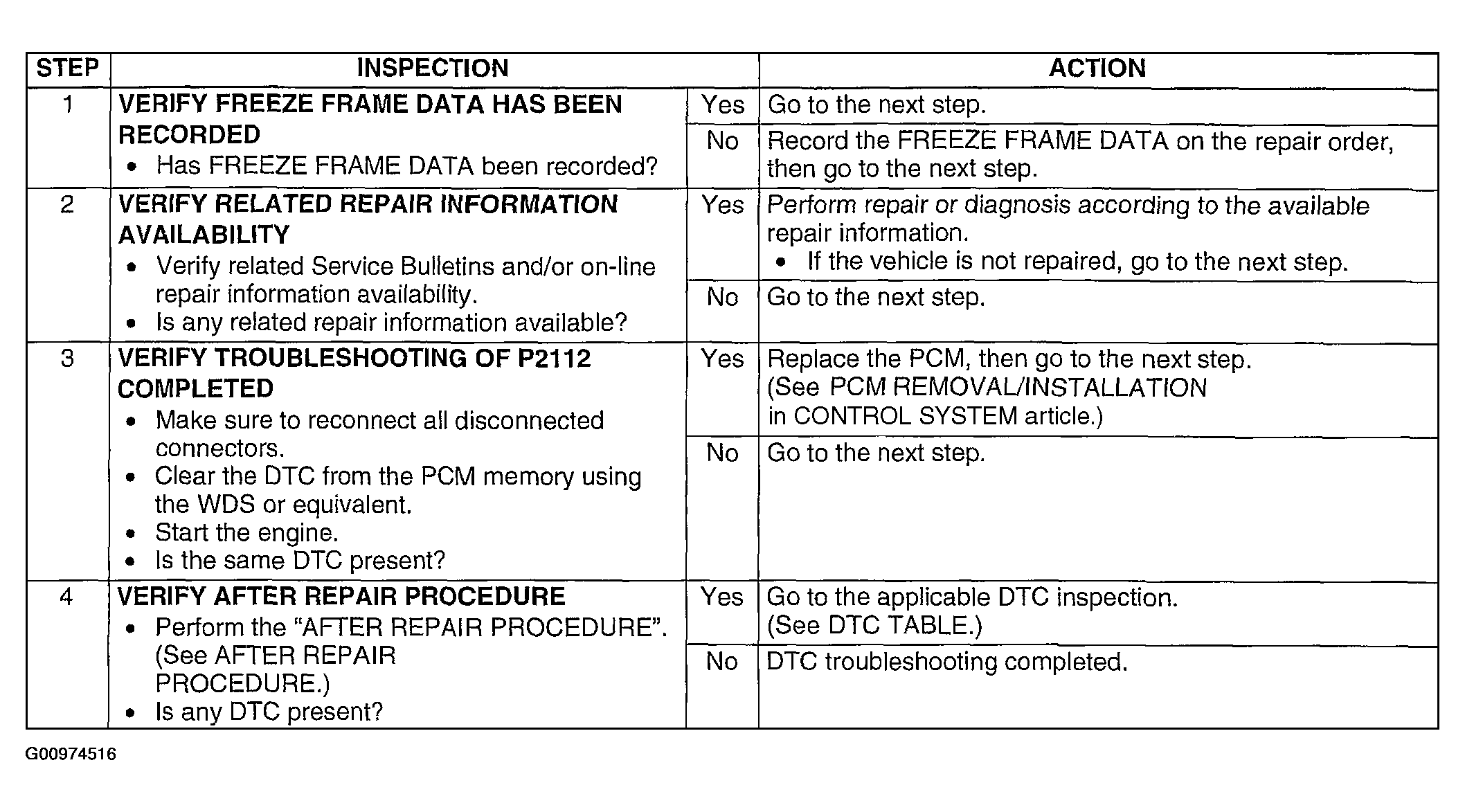

Fig 1: DTC P2112: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
