Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2097: Target A/F Feedback System Too Rich >> Notes

DTC P2097: Target A/F Feedback System Too Rich: Notes

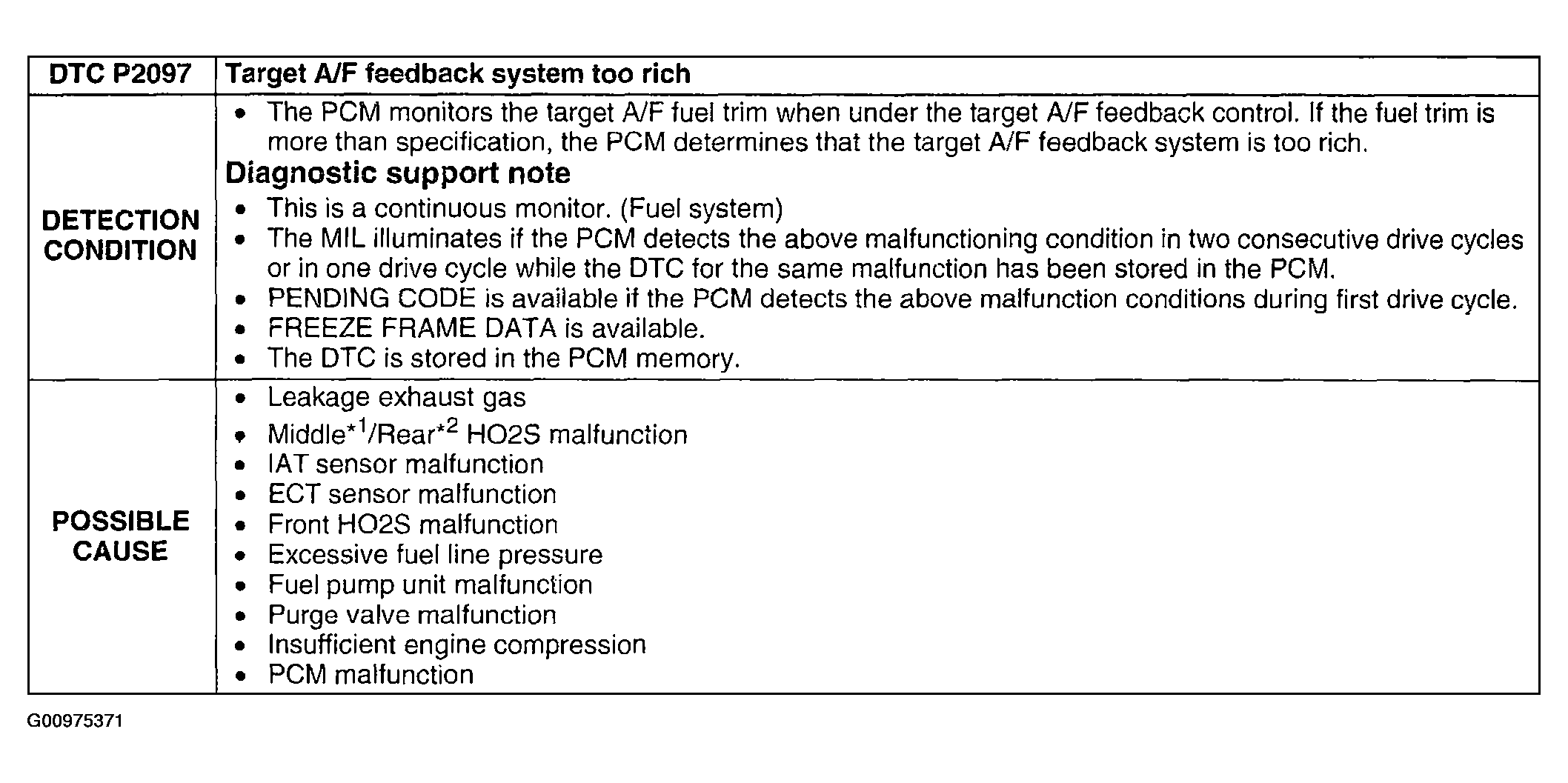

Fig 1: DTC P2097: Detection Condition & Possible Causes Chart

G00975371

Courtesy of MAZDA MOTORS CORP.
