Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2088: Oil Control Valve Circuit Low >> Notes

DTC P2088: Oil Control Valve Circuit Low: Notes

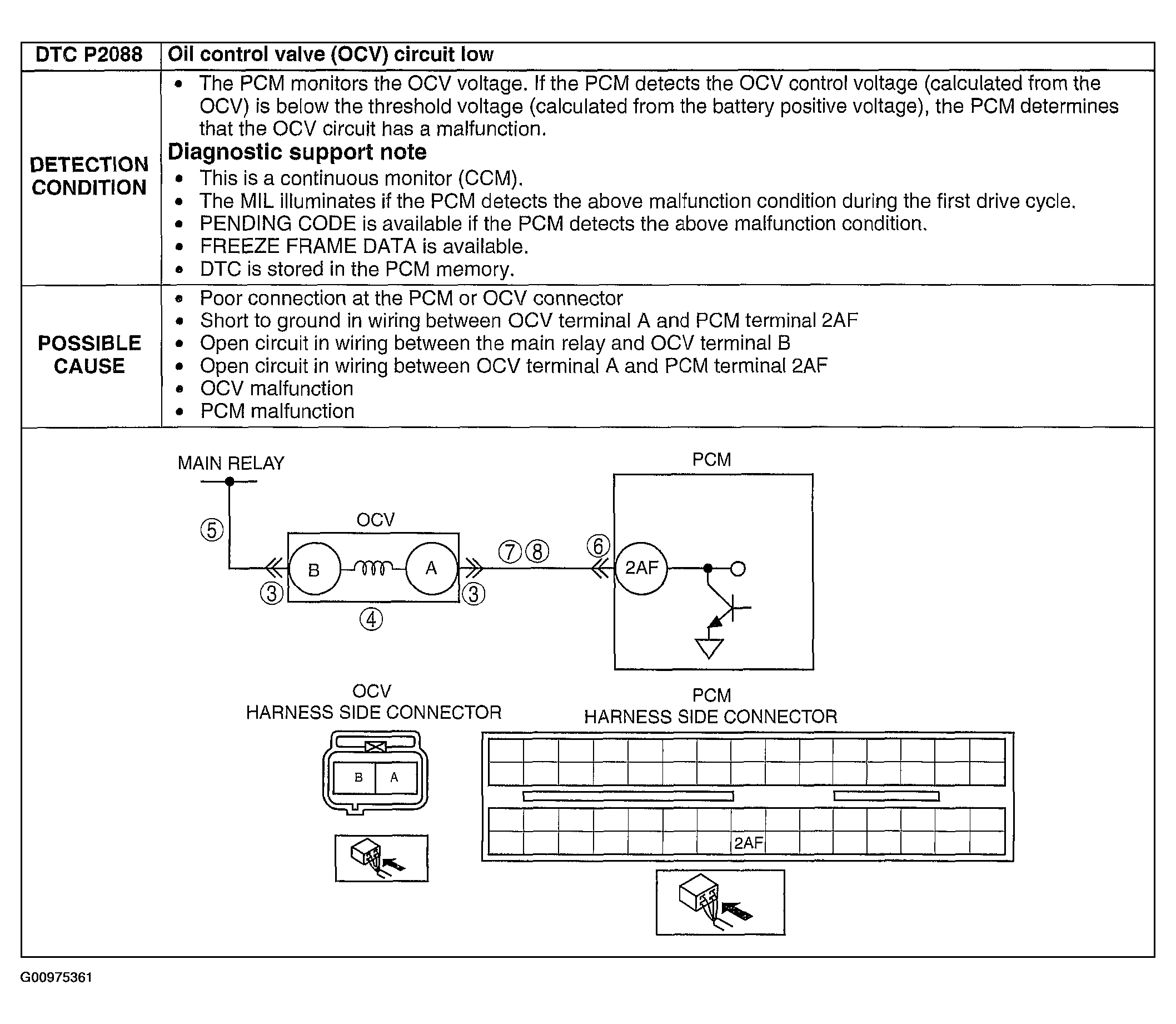

Fig 1: DTC P2088: Detection Condition & Possible Causes Chart

G00975361

Courtesy of MAZDA MOTORS CORP.
