DTC P2004: Variable Tumble Shutter Valve Stuck Open: Notes

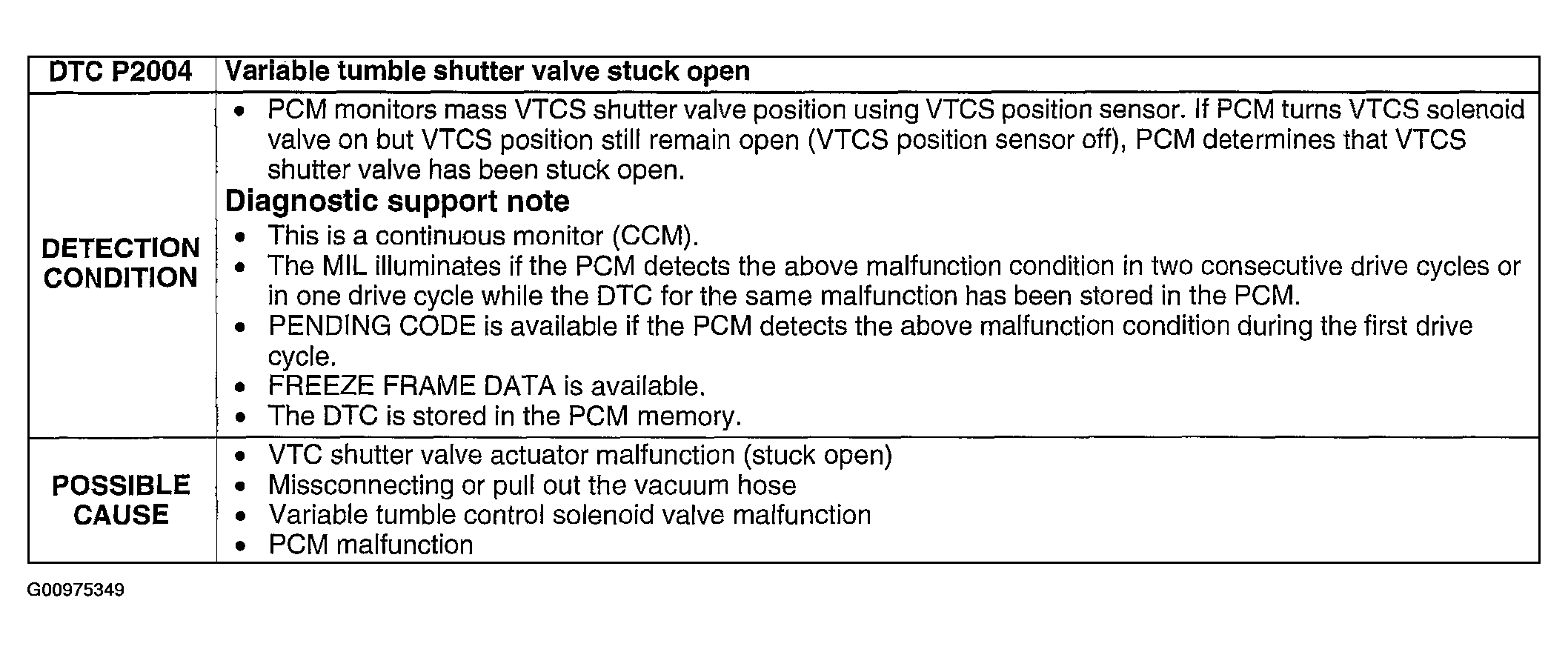

Fig 1: DTC P2004: Detection Condition & Possible Causes Chart

G00975349

Courtesy of MAZDA MOTORS CORP.
