DTC P2004: Variable Tumble Shutter Valve Stuck Open
>>
Diagnostic procedure
Diagnostic procedure

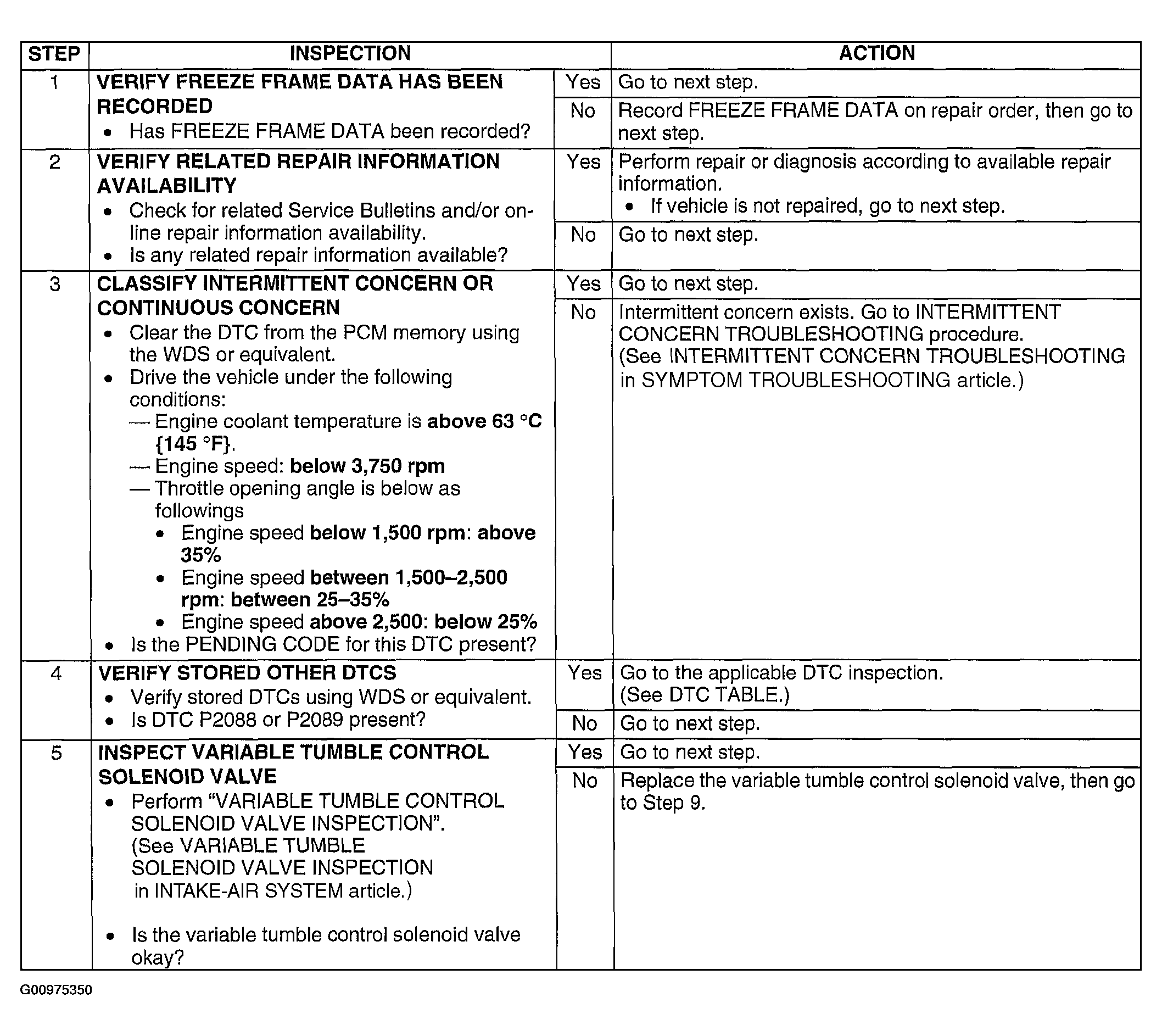

Fig 1: DTC P2004: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

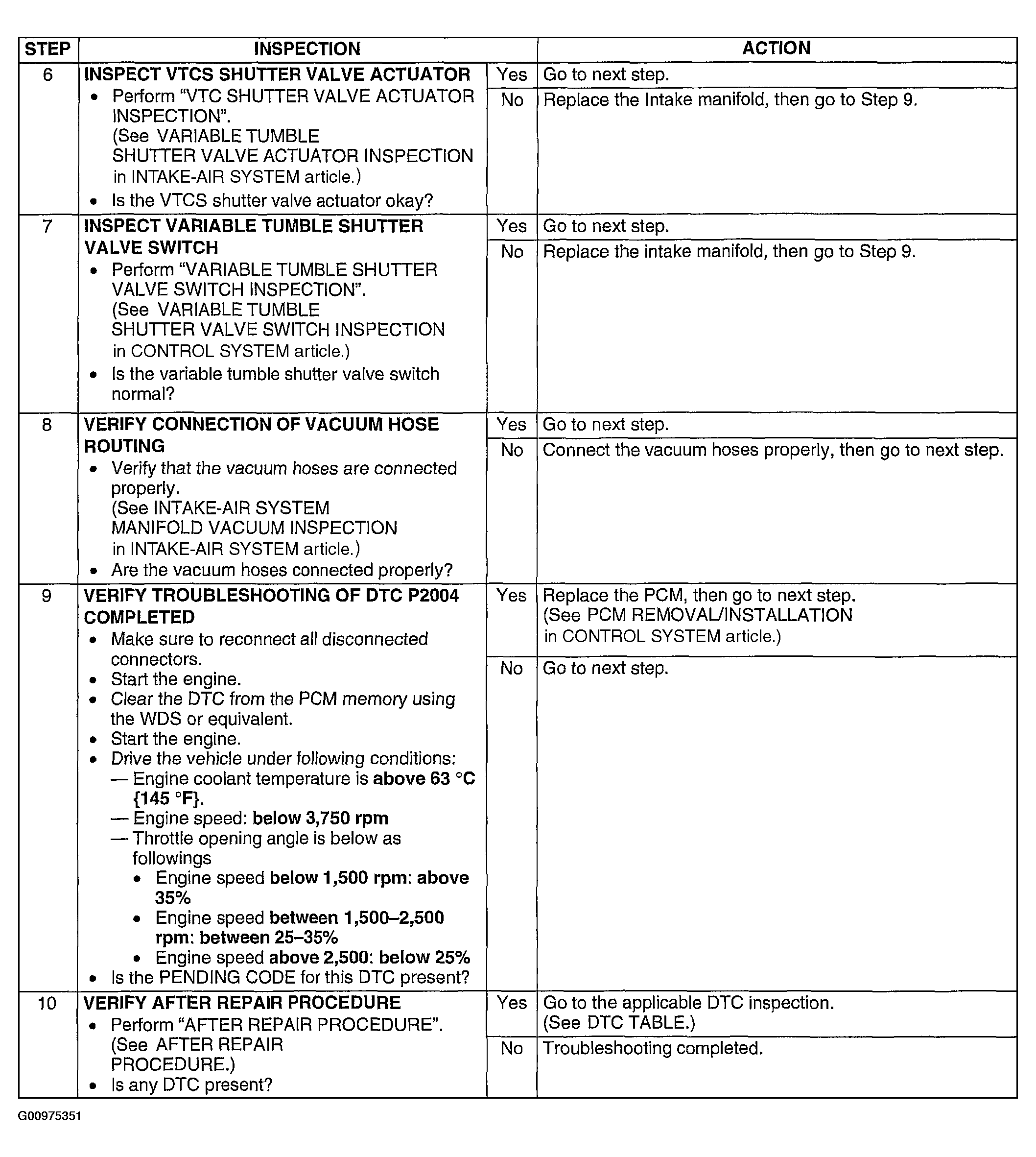

Fig 2: DTC P2004: Diagnostic Procedure Chart (Steps 6-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
