Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0704: Clutch Pedal Position Switch Input Circuit Problem >> Notes

DTC P0704: Clutch Pedal Position Switch Input Circuit Problem: Notes

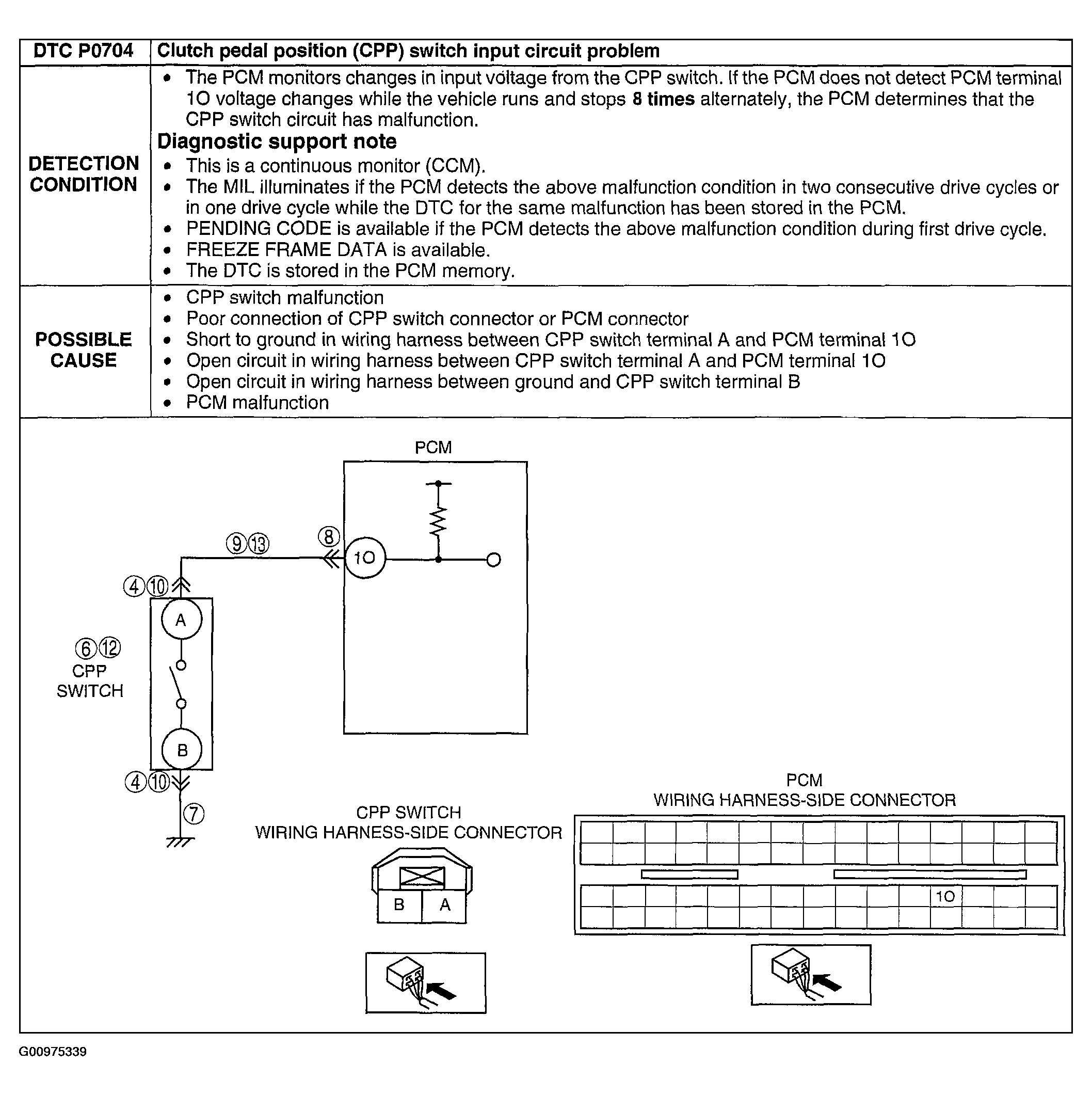

Fig 1: DTC P0704: Detection Condition & Possible Causes Chart

G00975339

Courtesy of MAZDA MOTORS CORP.
