Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0661: Variable Intake-Air Solenoid Valve Circuit Low Input >> Notes

DTC P0661: Variable Intake-Air Solenoid Valve Circuit Low Input: Notes

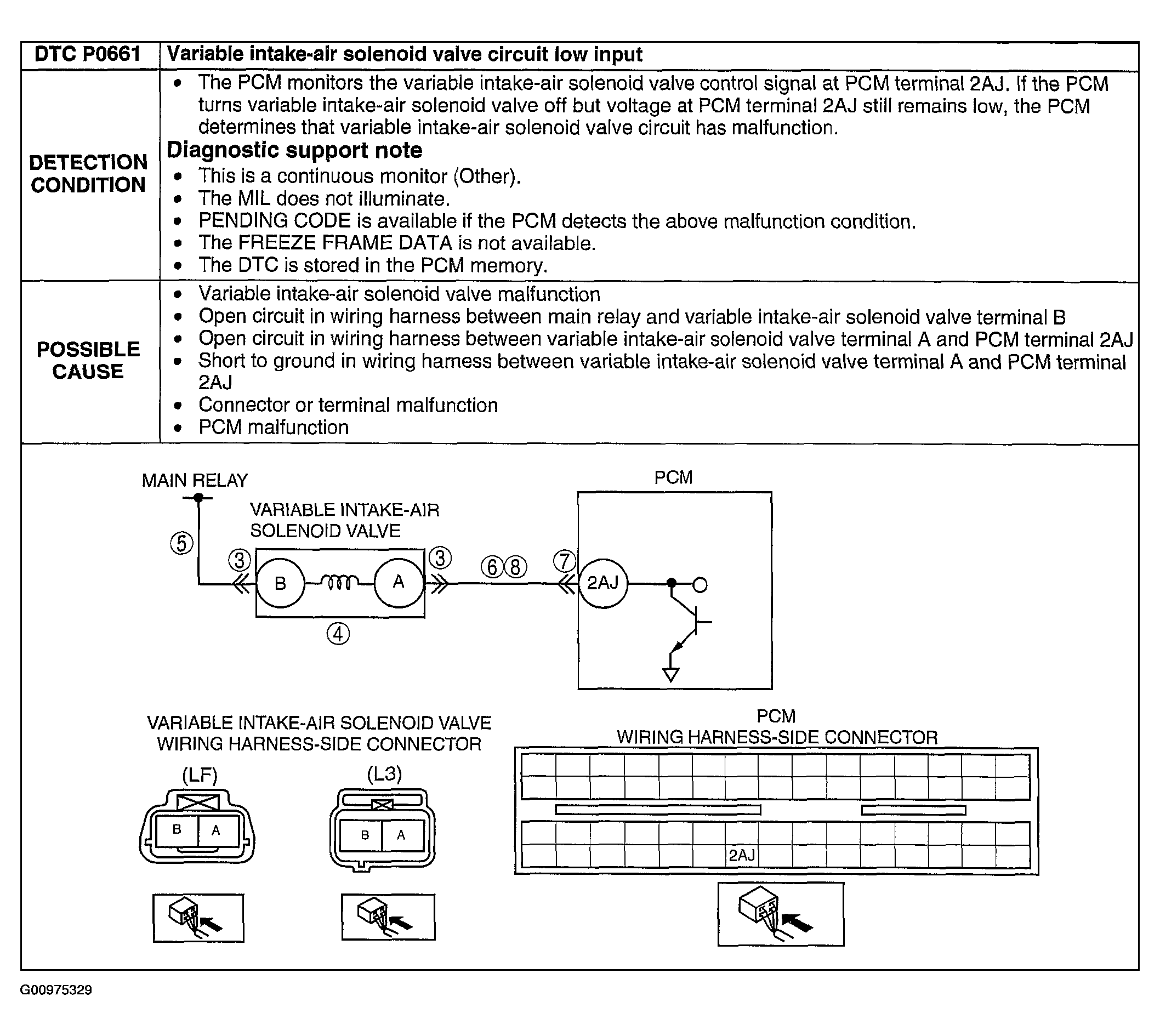

Fig 1: DTC P0661: Detection Condition & Possible Causes Chart

G00975329

Courtesy of MAZDA MOTORS CORP.
