Diagnostic procedure

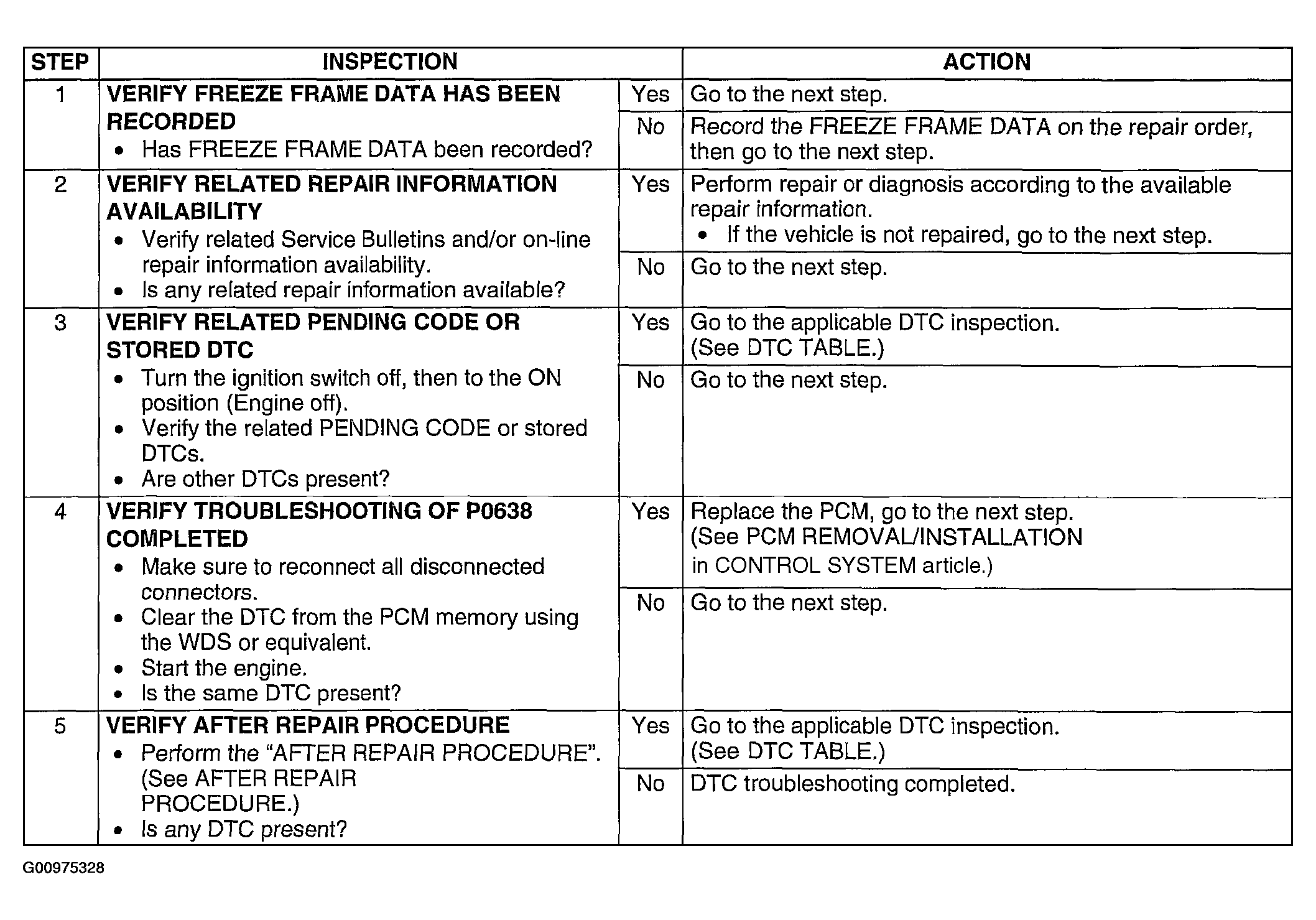

Fig 1: DTC P0638: Diagnostic Procedure Chart (Steps 1-5)
G00975328Courtesy of MAZDA MOTORS CORP.
