DTC P0462: Fuel Gauge Sender Unit Circuit Low Input: Notes

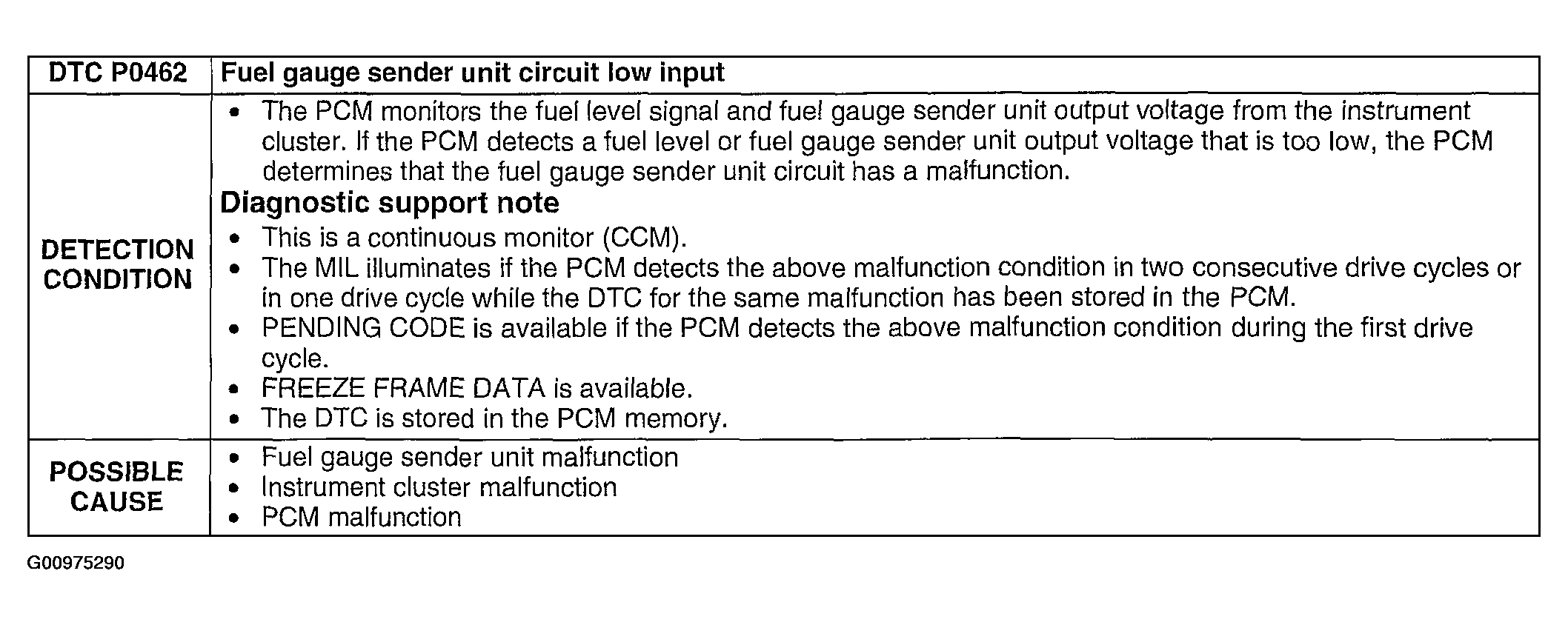

Fig 1: DTC P0462: Detection Condition & Possible Causes Chart

G00975290

Courtesy of MAZDA MOTORS CORP.
