Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0403: EGR Valve (Stepper Motor) Circuit Problem >> Notes

DTC P0403: EGR Valve (Stepper Motor) Circuit Problem: Notes

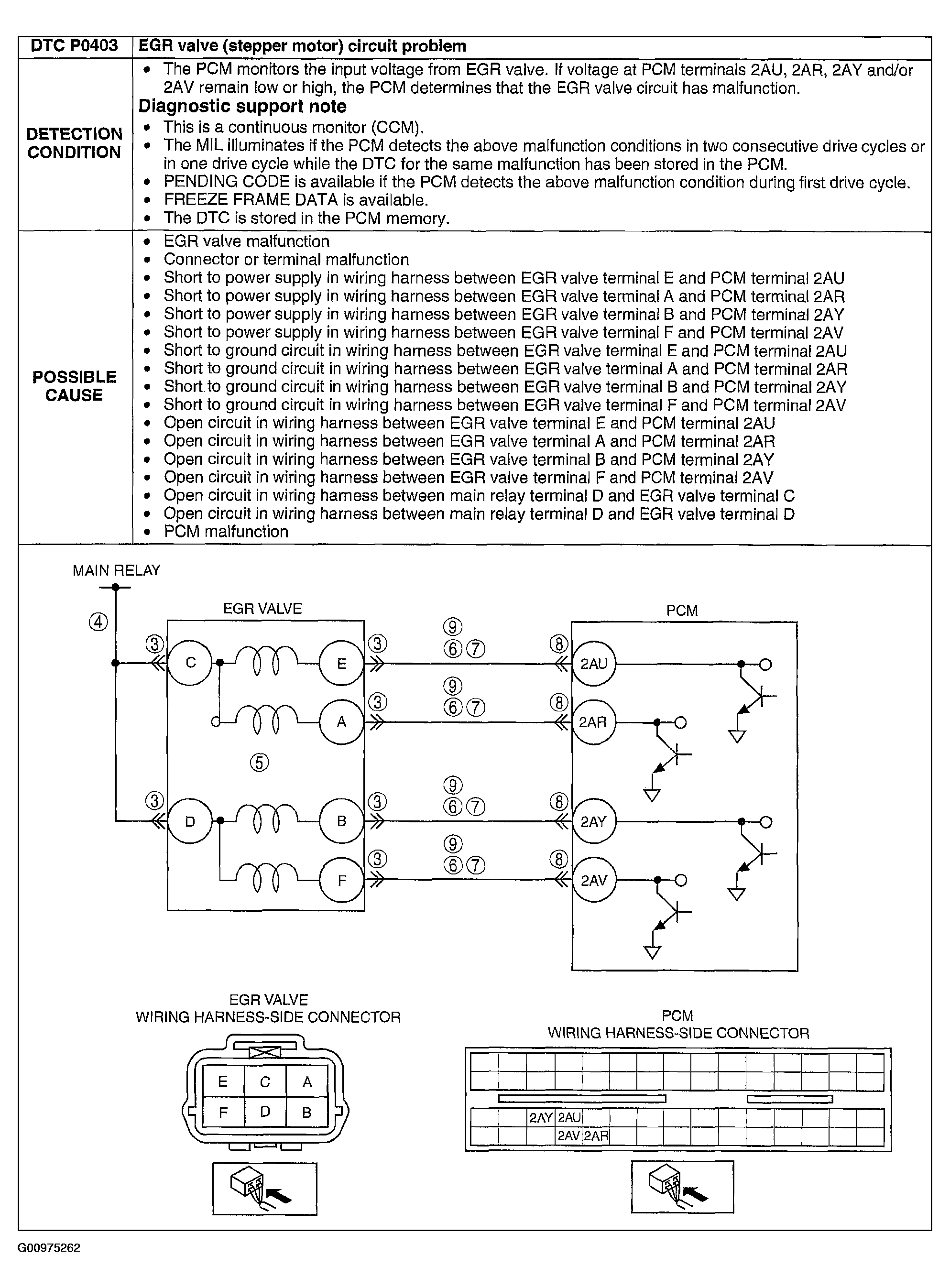

Fig 1: DTC P0403: Detection Condition & Possible Causes Chart

G00975262

Courtesy of MAZDA MOTORS CORP.
