Diagnostic procedure

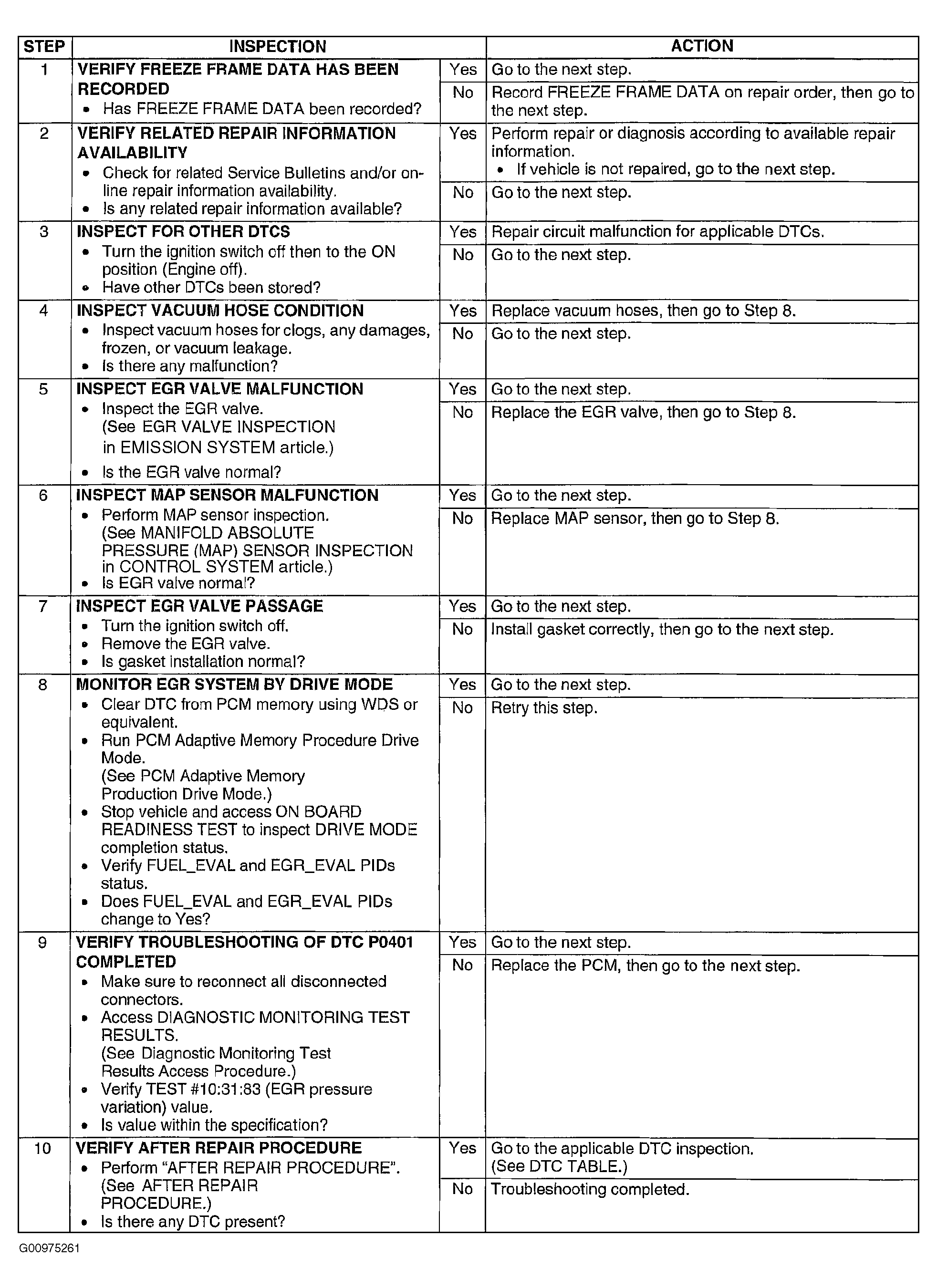

Fig 1: DTC P0401: Diagnostic Procedure Chart (Steps 1-10)
G00975261Courtesy of MAZDA MOTORS CORP.
