DTC P0335: CKP Sensor Circuit Problem
>>
Diagnostic procedure
Diagnostic procedure

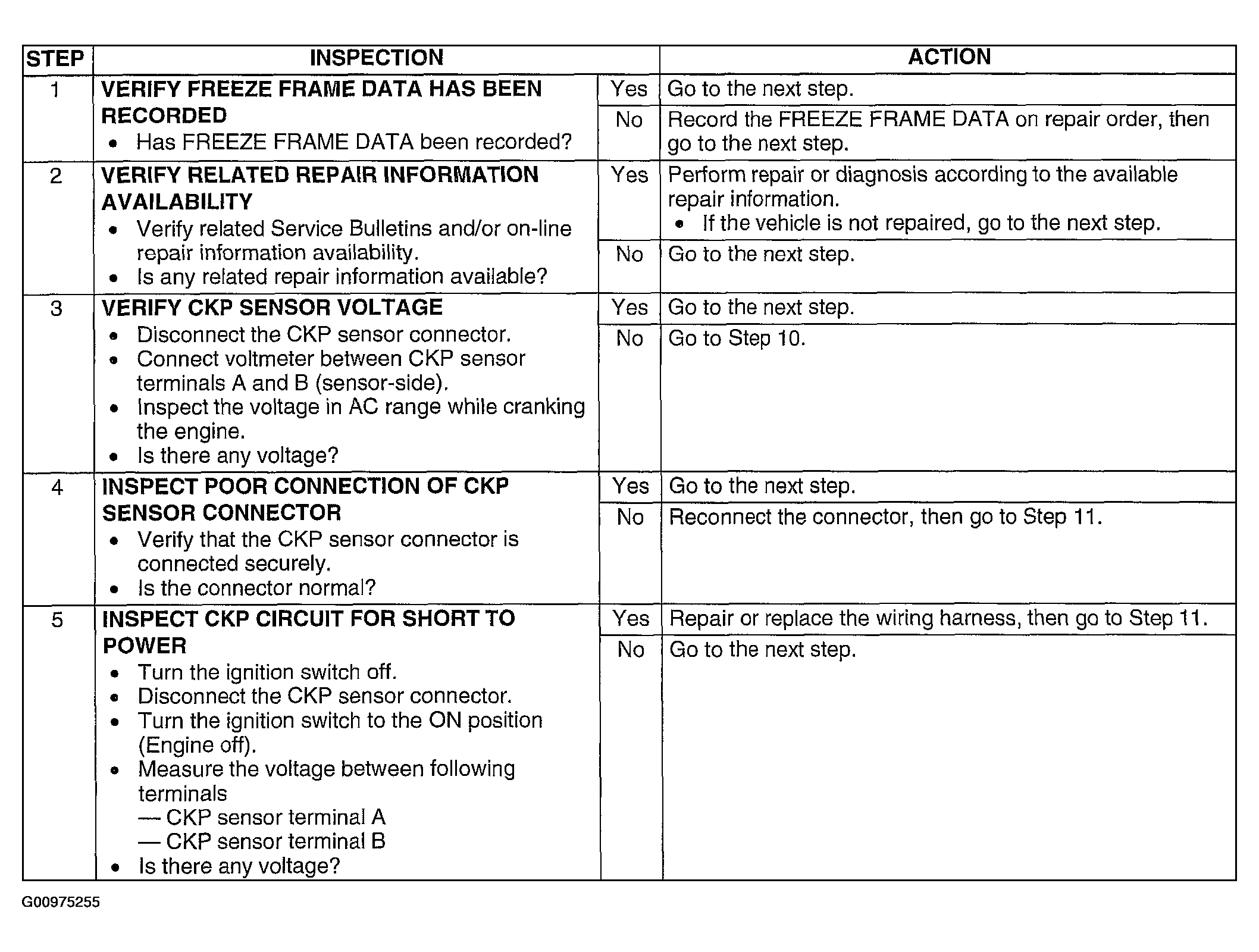

Fig 1: DTC P0335: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

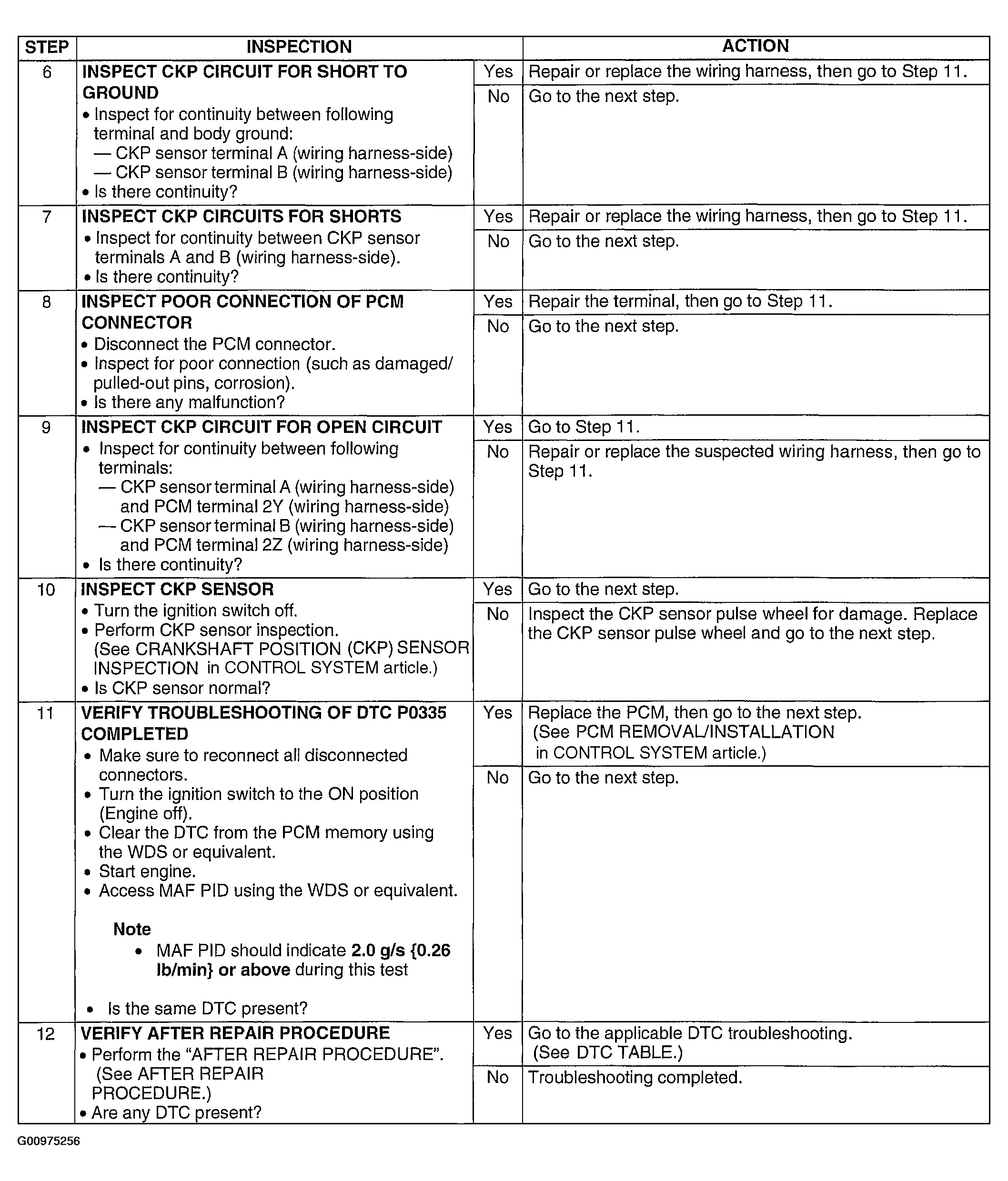

Fig 2: DTC P0335: Diagnostic Procedure Chart (Steps 6-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
