Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0327: KS Circuit Low Input >> Notes

DTC P0327: KS Circuit Low Input: Notes

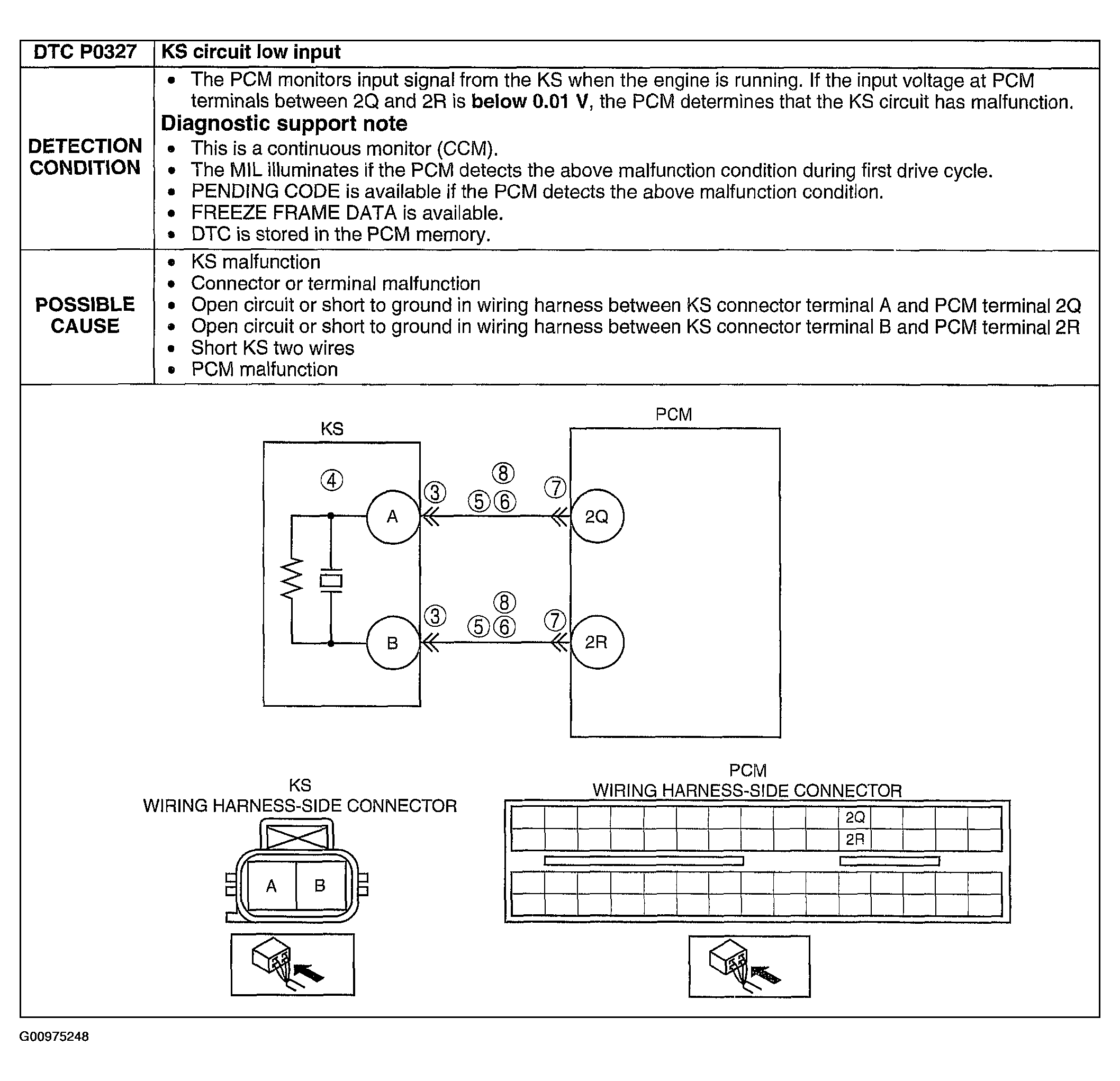

Fig 1: DTC P0327: Detection Condition & Possible Causes Chart

G00975248

Courtesy of MAZDA MOTORS CORP.
