Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0171: Fuel Trim System Too Lean >> Notes

DTC P0171: Fuel Trim System Too Lean: Notes

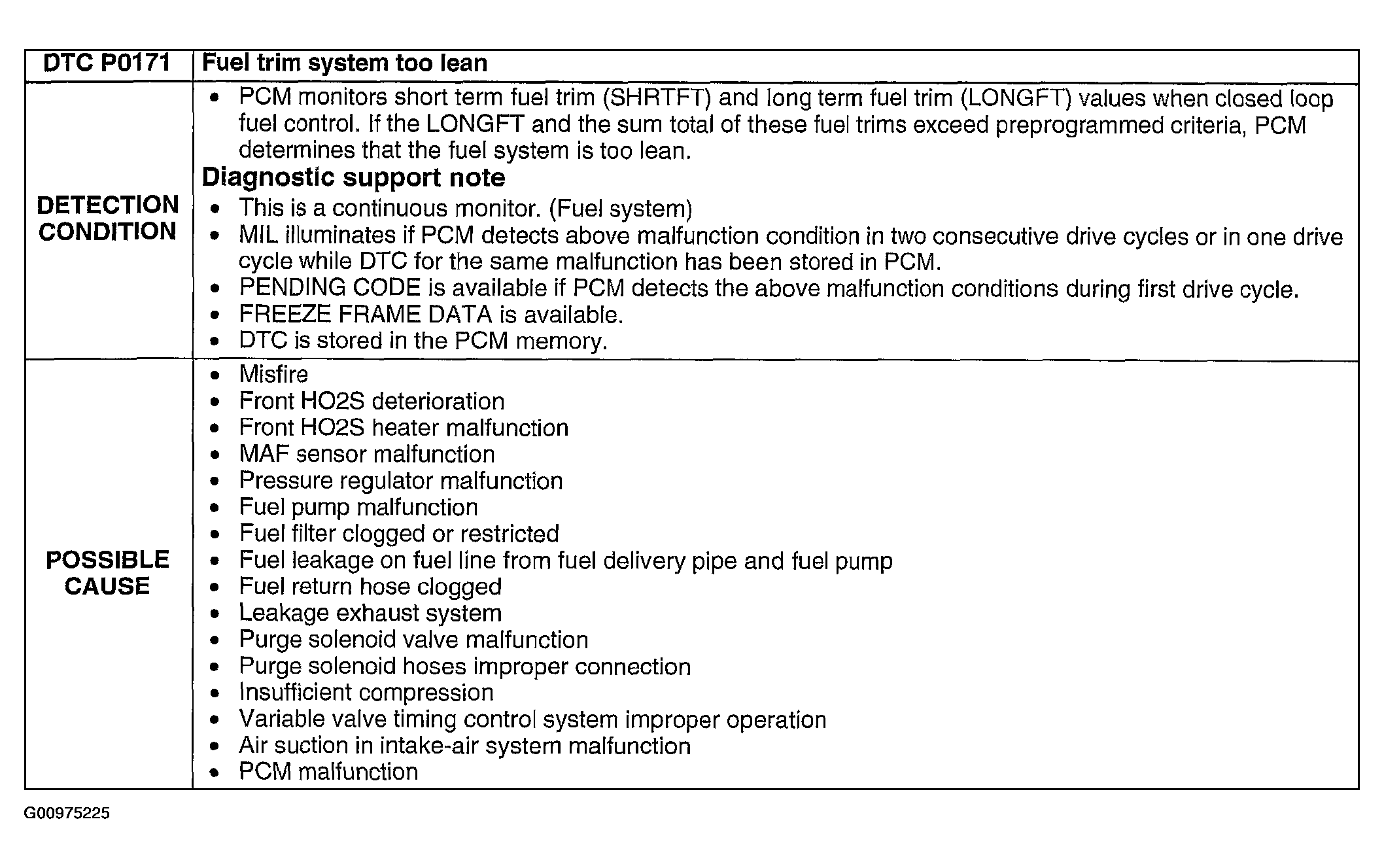

Fig 1: DTC P0171: Detection Condition & Possible Causes Chart

G00975225

Courtesy of MAZDA MOTORS CORP.
