DTC P0139: Middle Ho2S Circuit Problem
>>
Except for California Emission Regulation Applicable Model
Except for California Emission Regulation Applicable Model

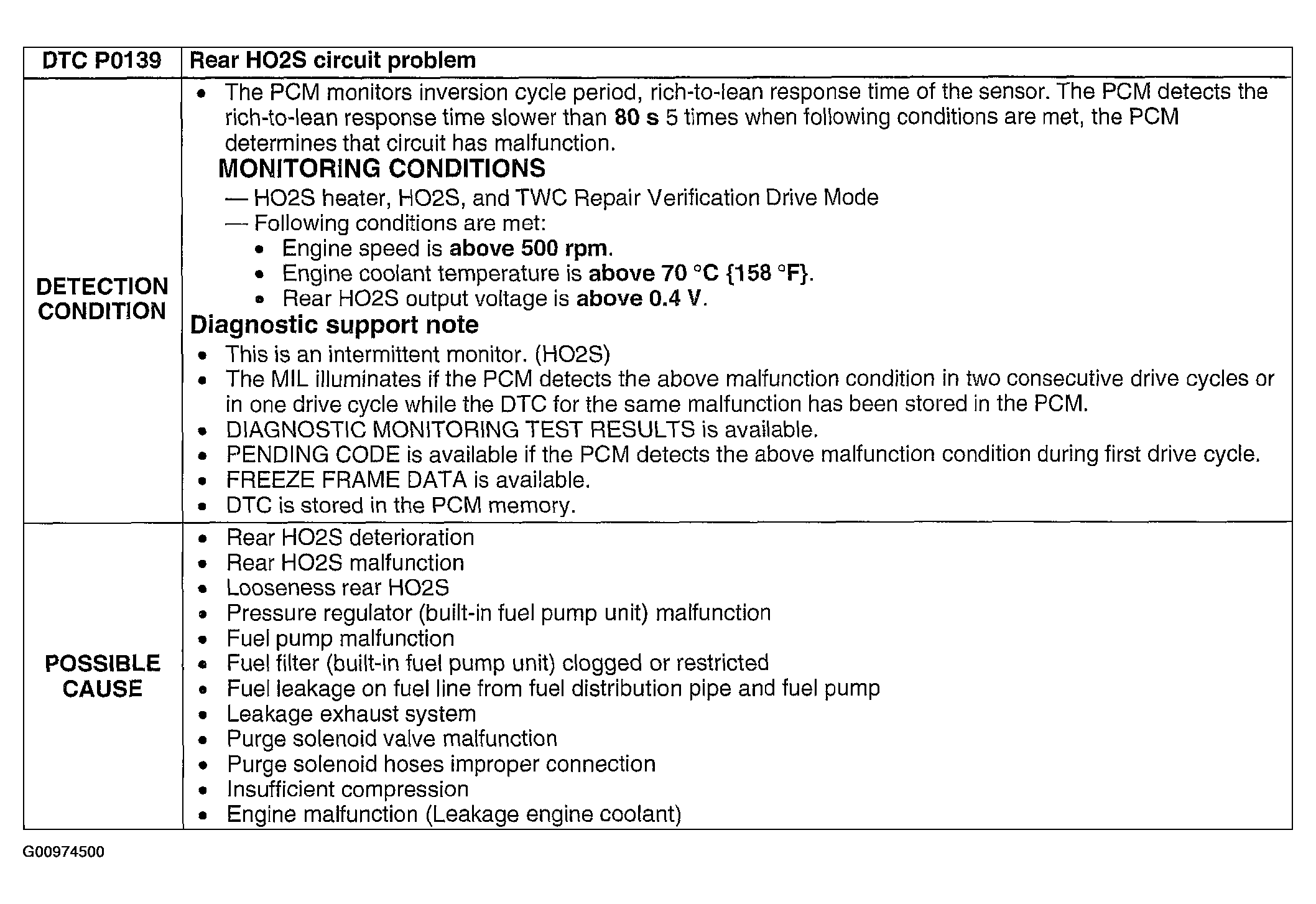

Fig 1: DTC P0139: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
