DTC P0134: Front Ho2S No Activity Detected
>>
Diagnostic Procedure
Diagnostic Procedure

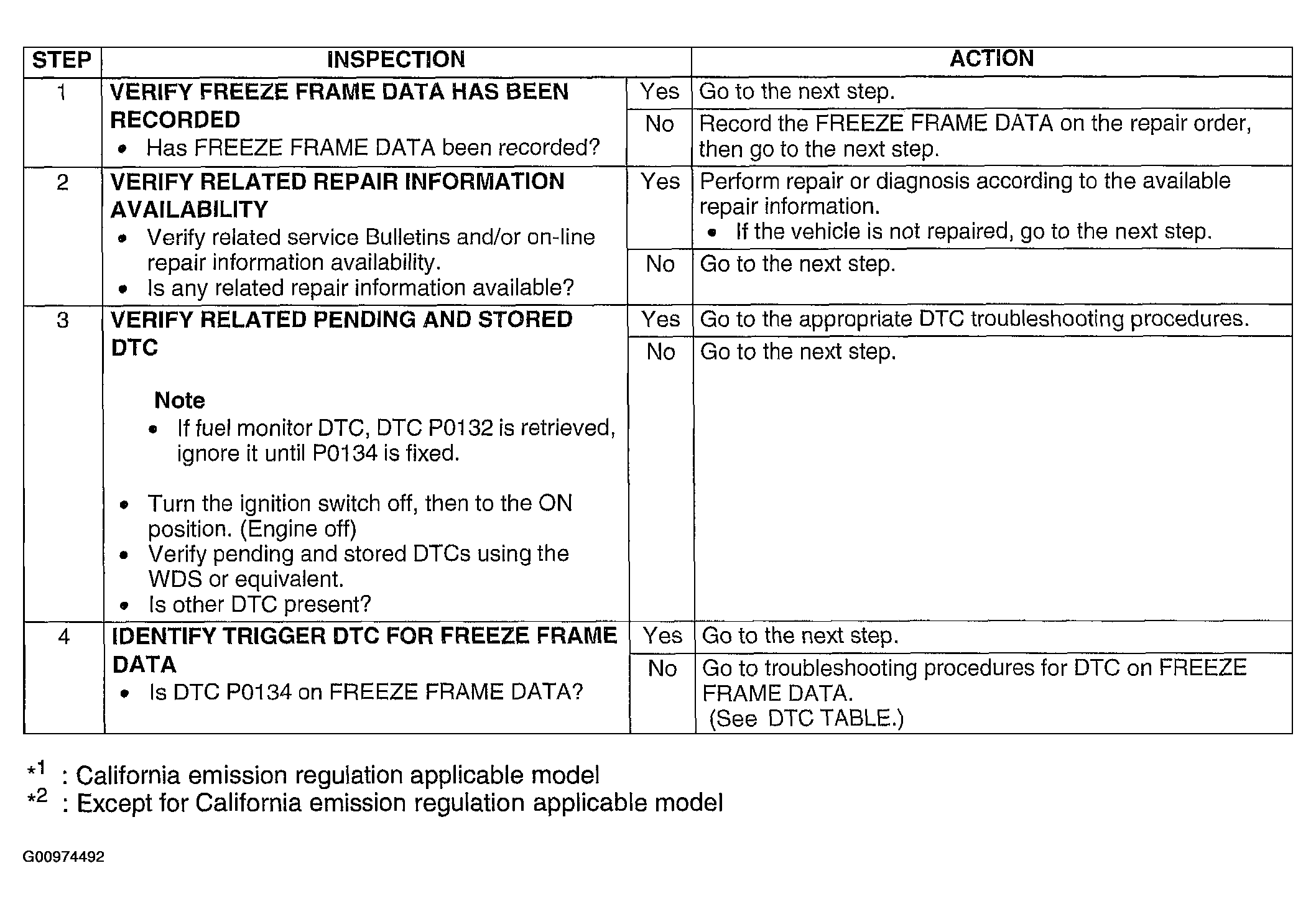

Fig 1: DTC P0134: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

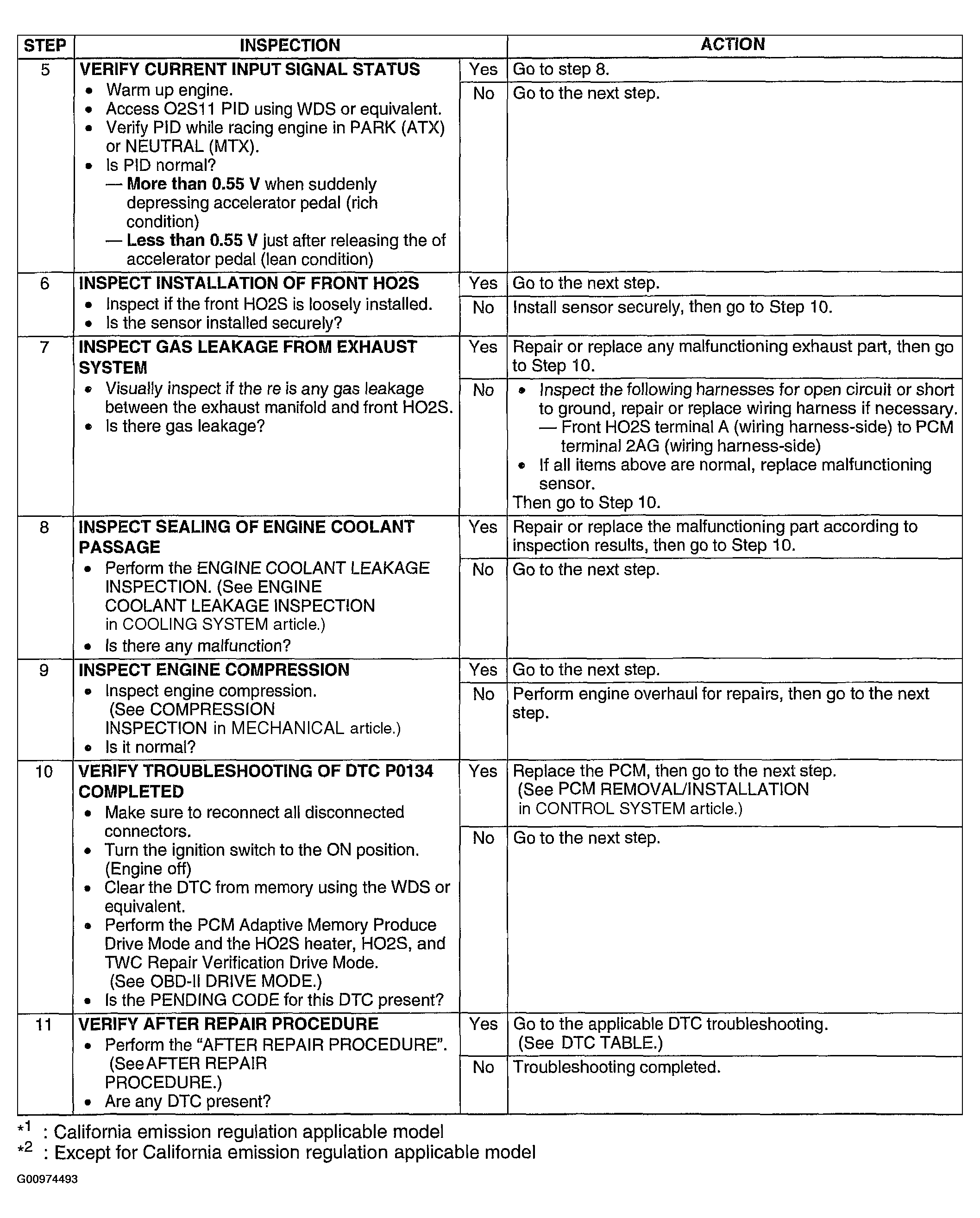

Fig 2: DTC P0134: Diagnostic Procedure Chart (Steps 5-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
