Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0133: Front Ho2S Circuit Problem >> California Emission Regulation Applicable Model

California Emission Regulation Applicable Model

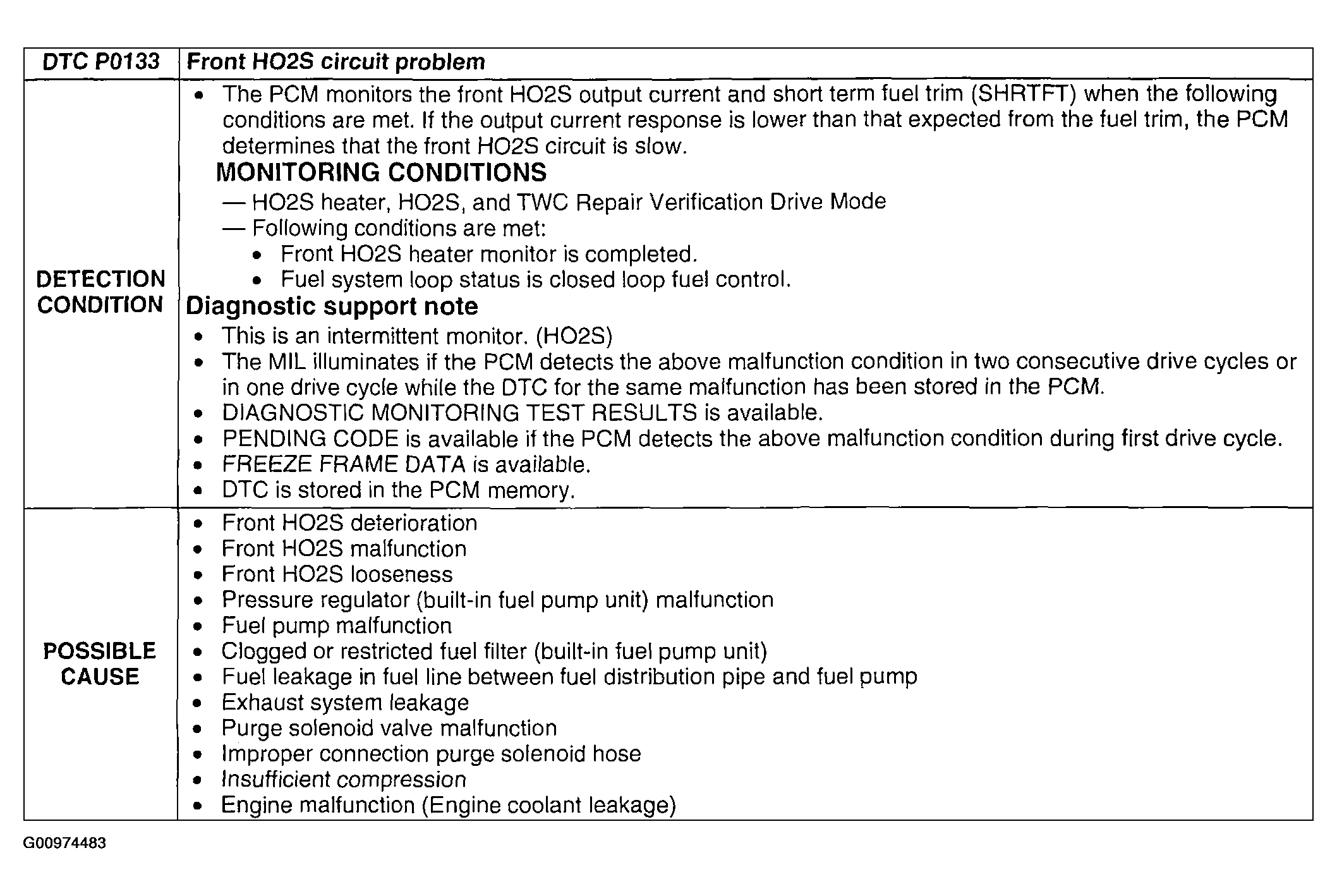

Fig 1: DTC P0133: Detection Condition & Possible Causes Chart

G00974483

Courtesy of MAZDA MOTORS CORP.
