DTC P0132: Front Ho2S Circuit High Input
>>
Diagnostic Procedure
Diagnostic Procedure

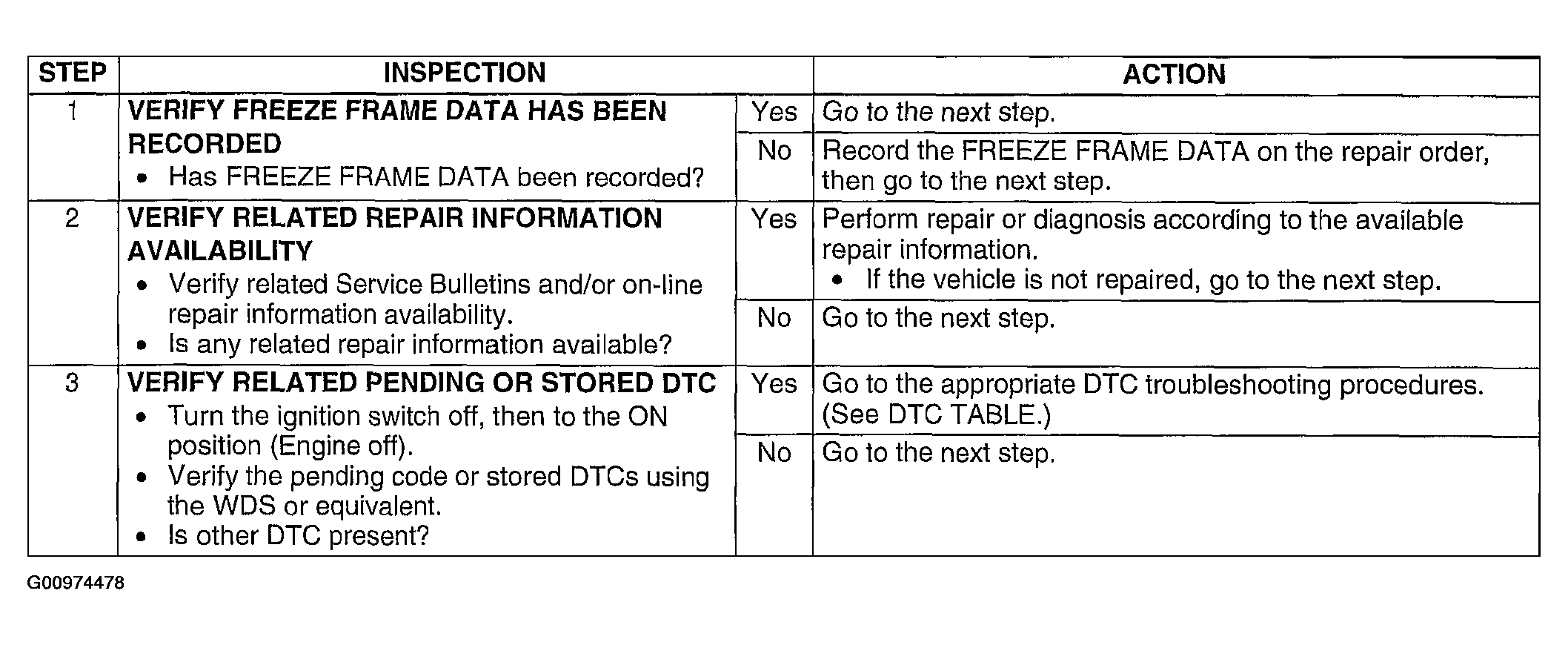

Fig 1: DTC P0132: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

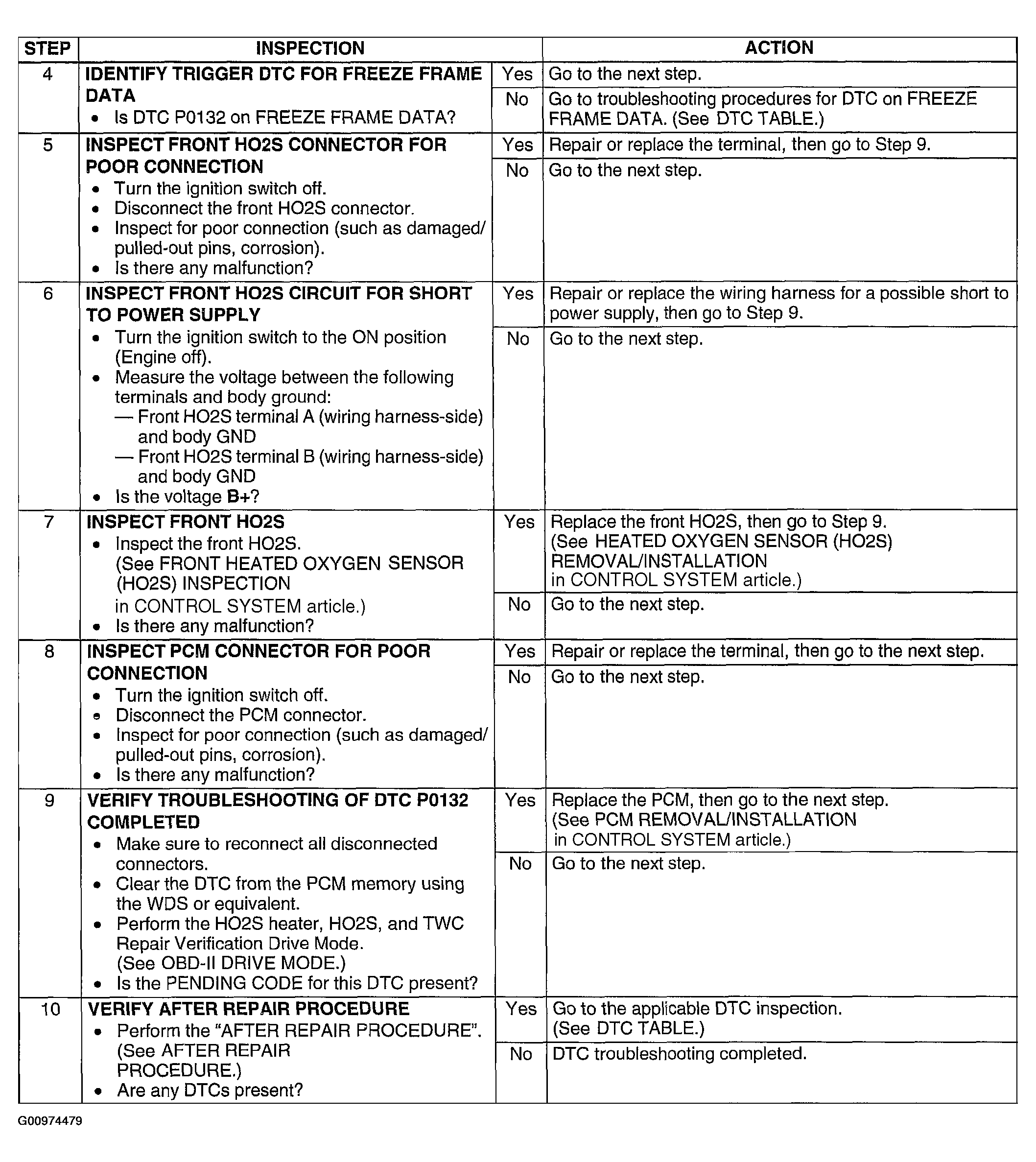

Fig 2: DTC P0132: Diagnostic Procedure Chart (Steps 4-10)
Courtesy of MAZDA MOTORS CORP.

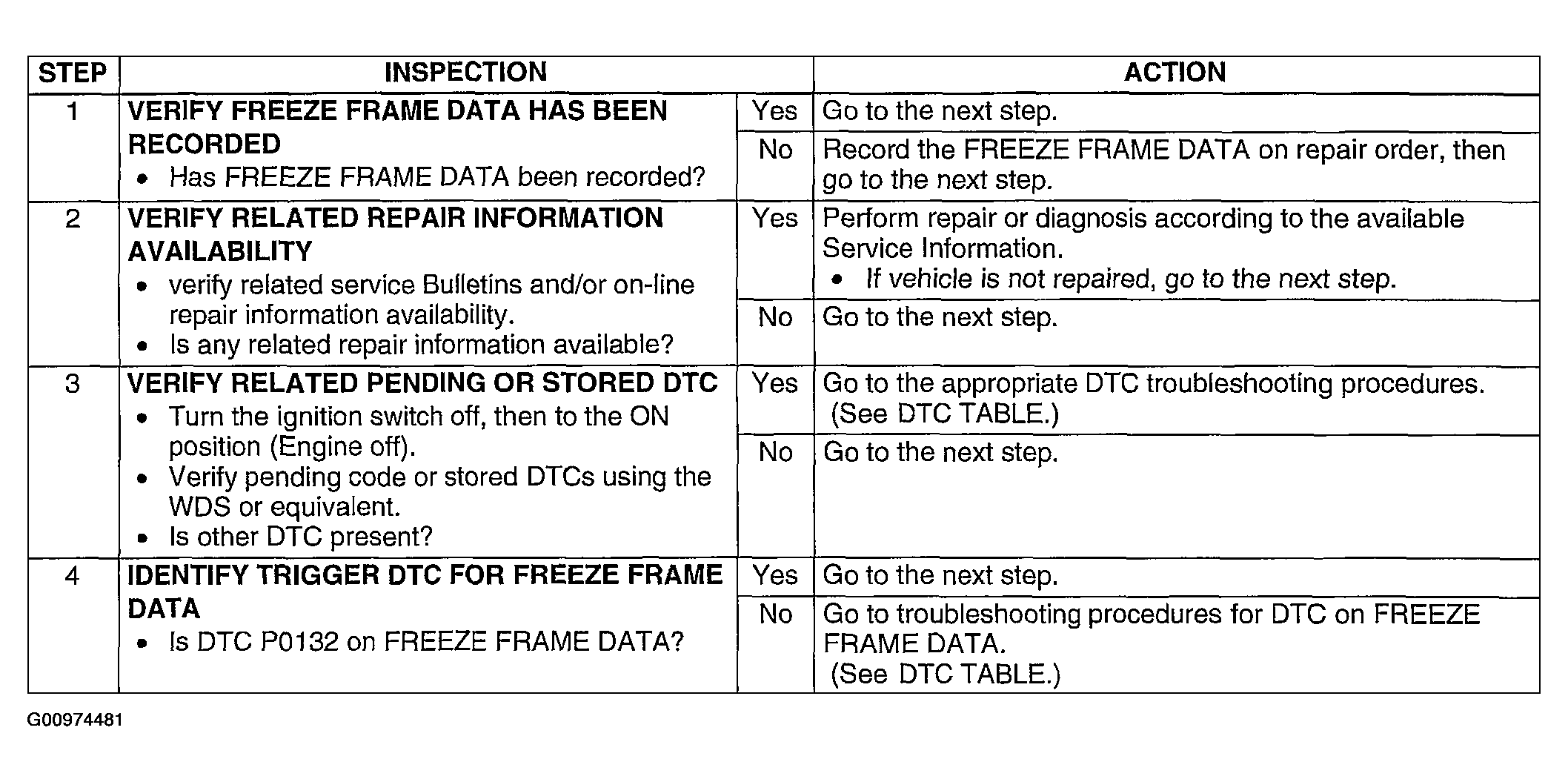

Fig 1: DTC P0132: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

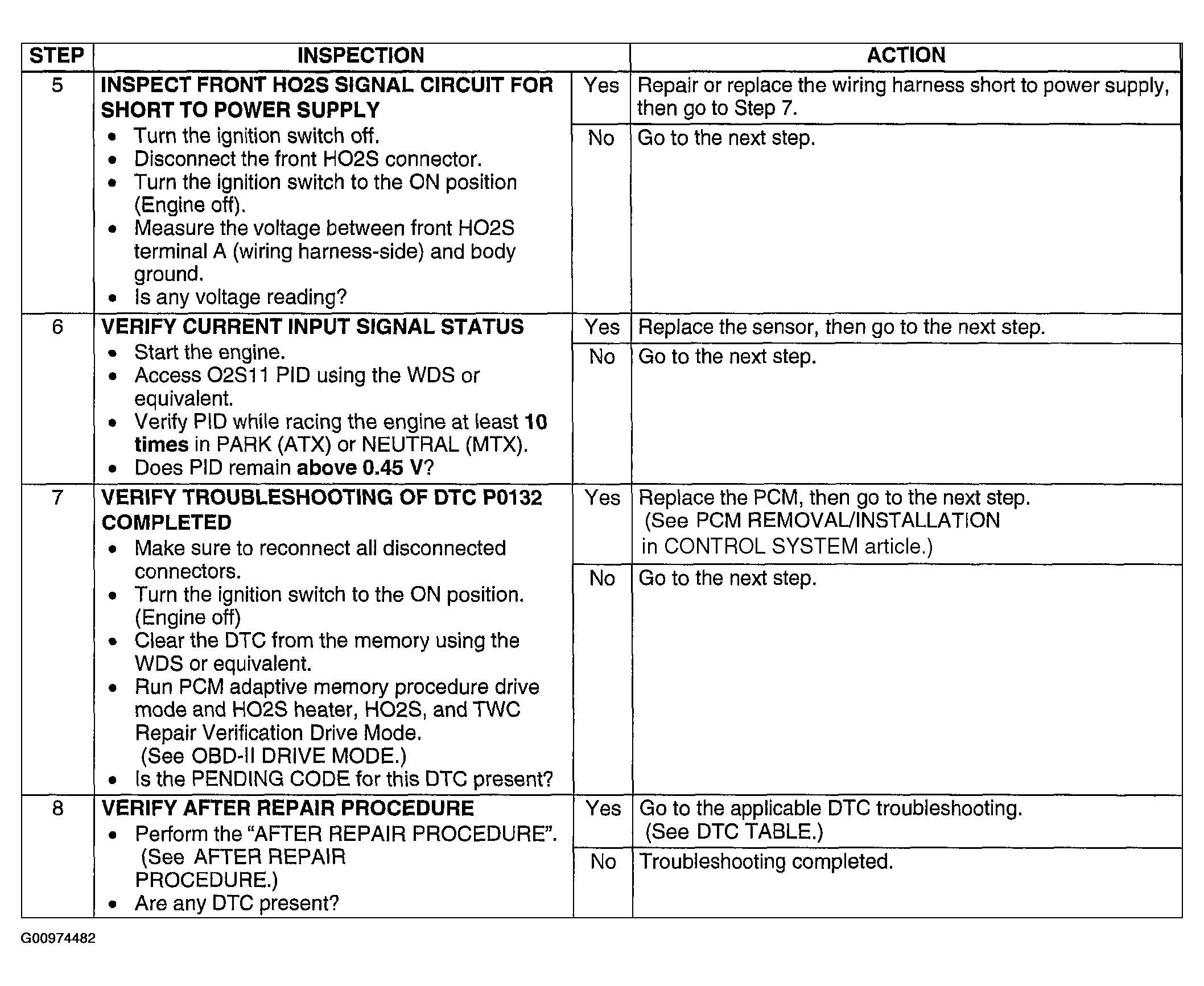

Fig 2: DTC P0132: Diagnostic Procedure Chart (Steps 5-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
