Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0132: Front Ho2S Circuit High Input >> California Emission Regulation Applicable Module

California Emission Regulation Applicable Module

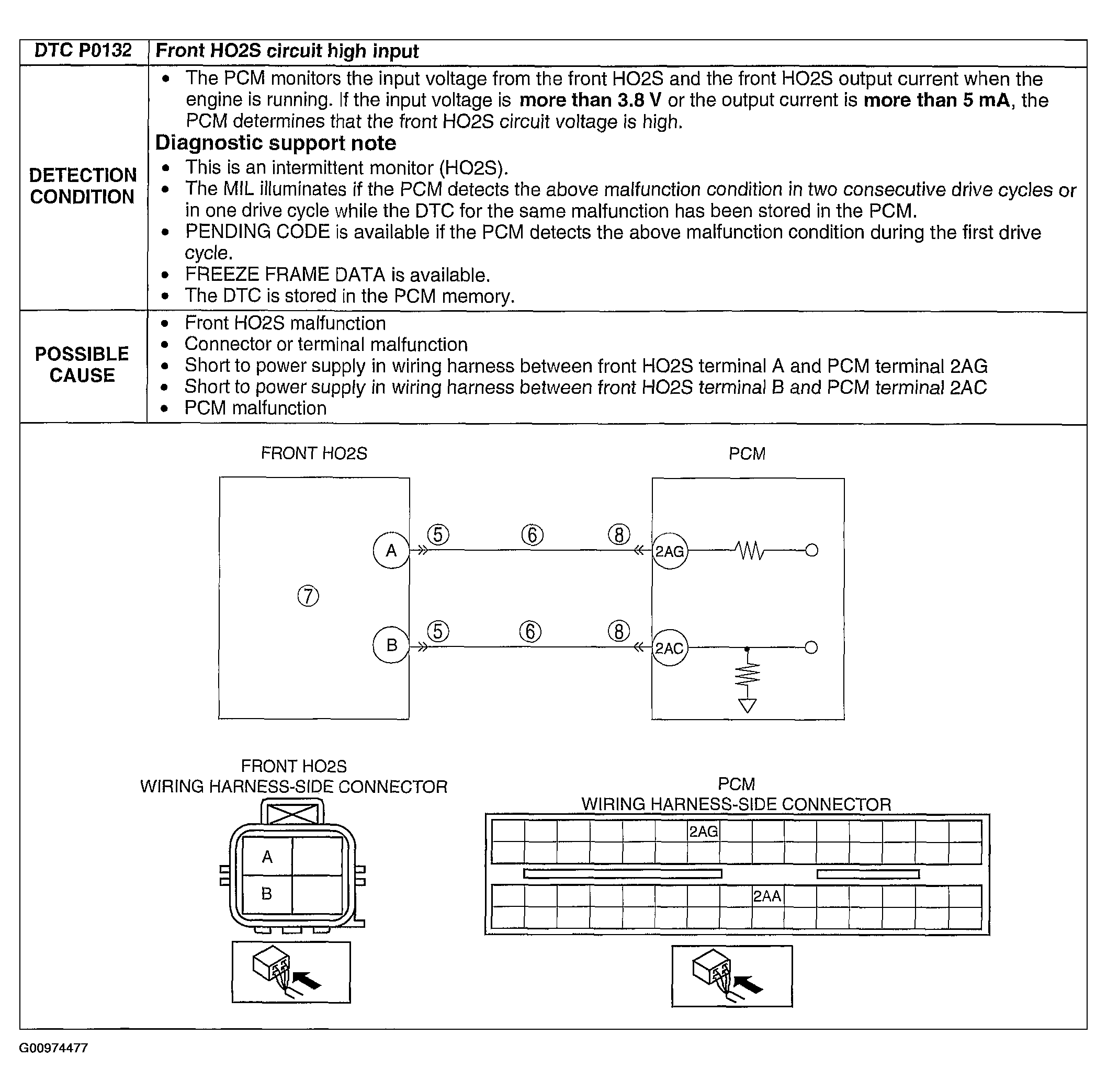

Fig 1: DTC P0132: Detection Condition & Possible Causes Chart

G00974477

Courtesy of MAZDA MOTORS CORP.
