DTC P0131: Front Ho2S Circuit Low Input
>>
Diagnostic Procedure
Diagnostic Procedure

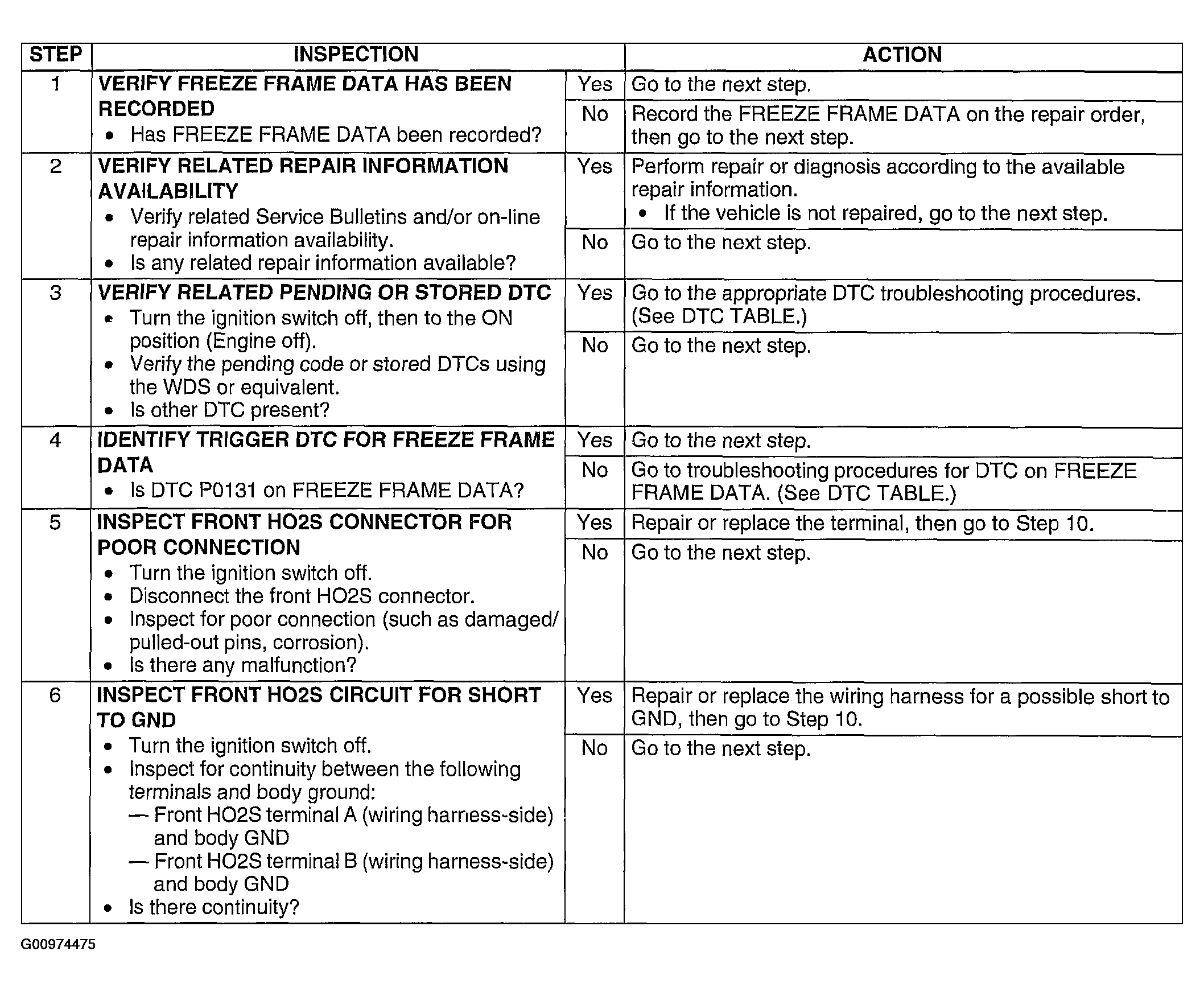

Fig 1: DTC P0131: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

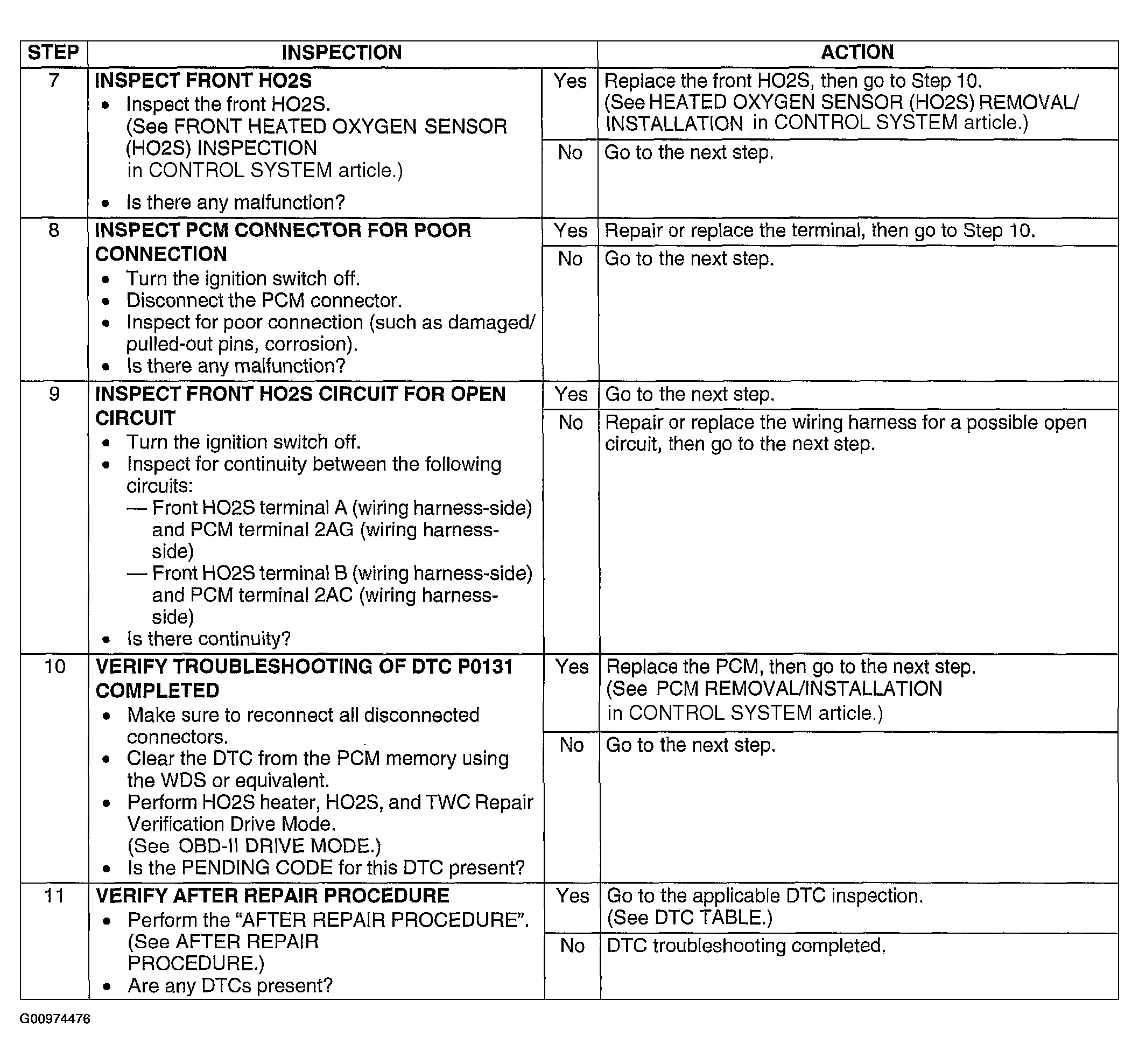

Fig 2: DTC P0131: Diagnostic Procedure Chart (Steps 7-11)
Courtesy of MAZDA MOTORS CORP.
