Home >> Mazda >> 2004 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0122: TP Sensor No. 1 Circuit Low Input >> Notes

DTC P0122: TP Sensor No. 1 Circuit Low Input: Notes

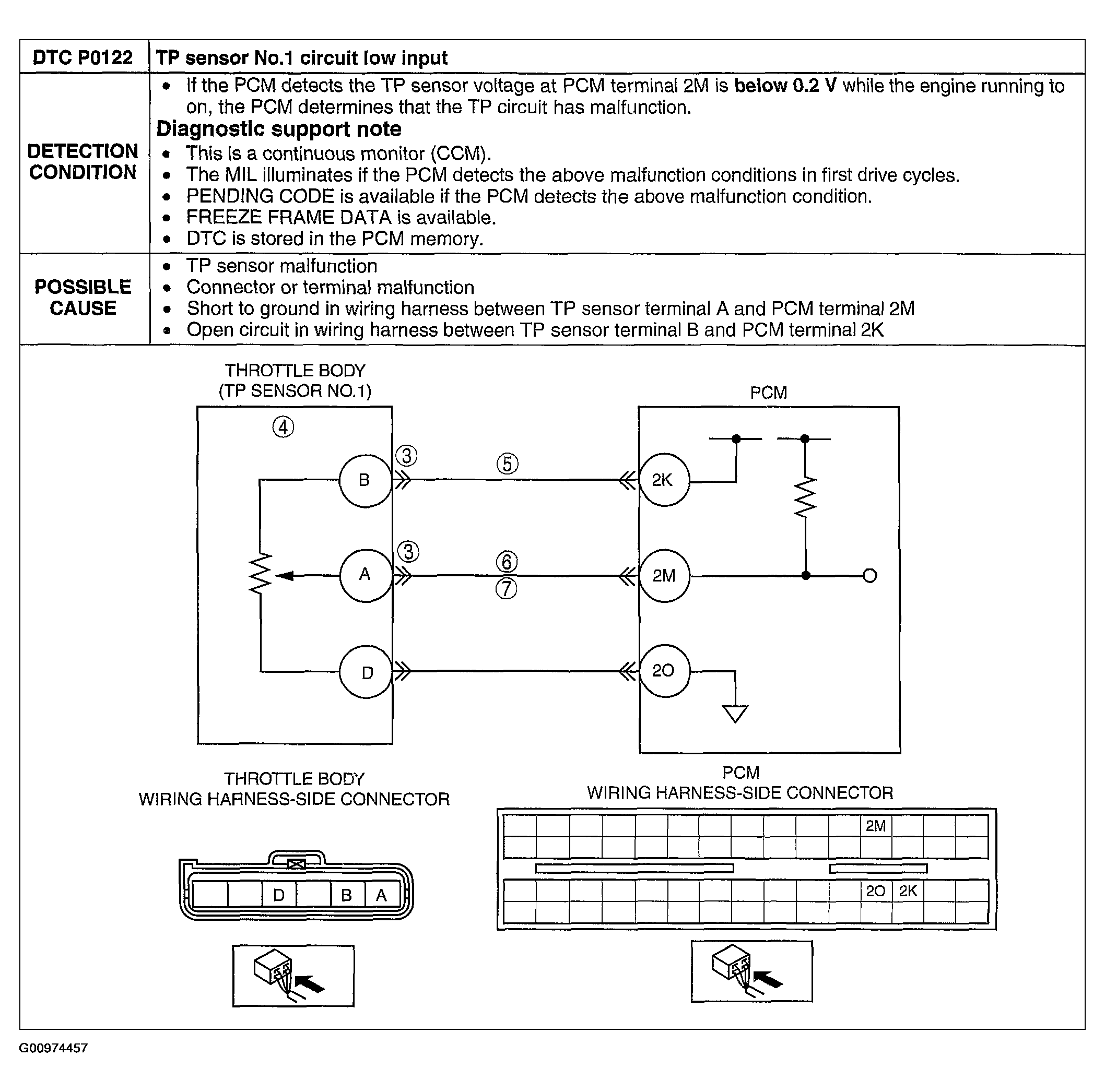

Fig 1: DTC P0122: Detection Condition & Possible Causes Chart

G00974457

Courtesy of MAZDA MOTORS CORP.
