DTC P0118: ECT Sensor Circuit High Input
>>
Diagnostic Procedure
Diagnostic Procedure

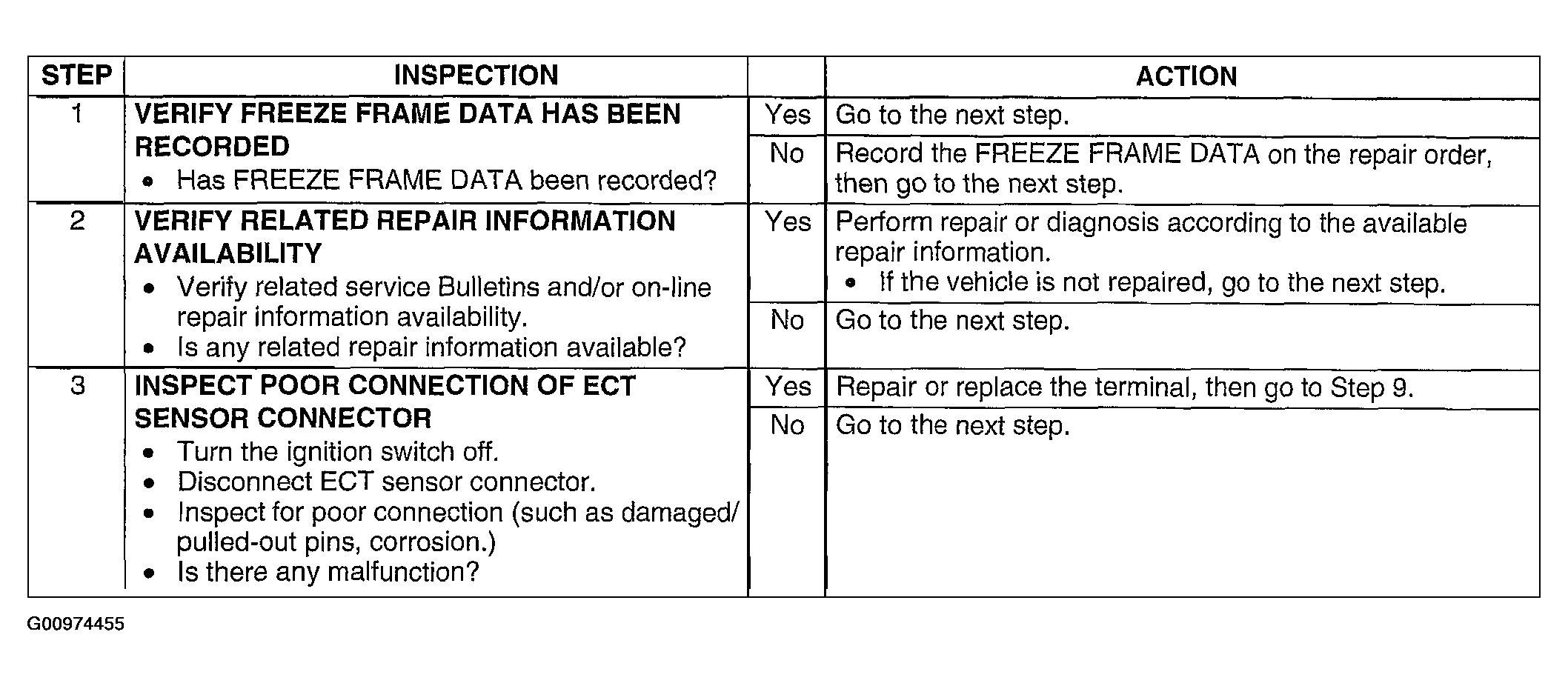

Fig 1: DTC P0118: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

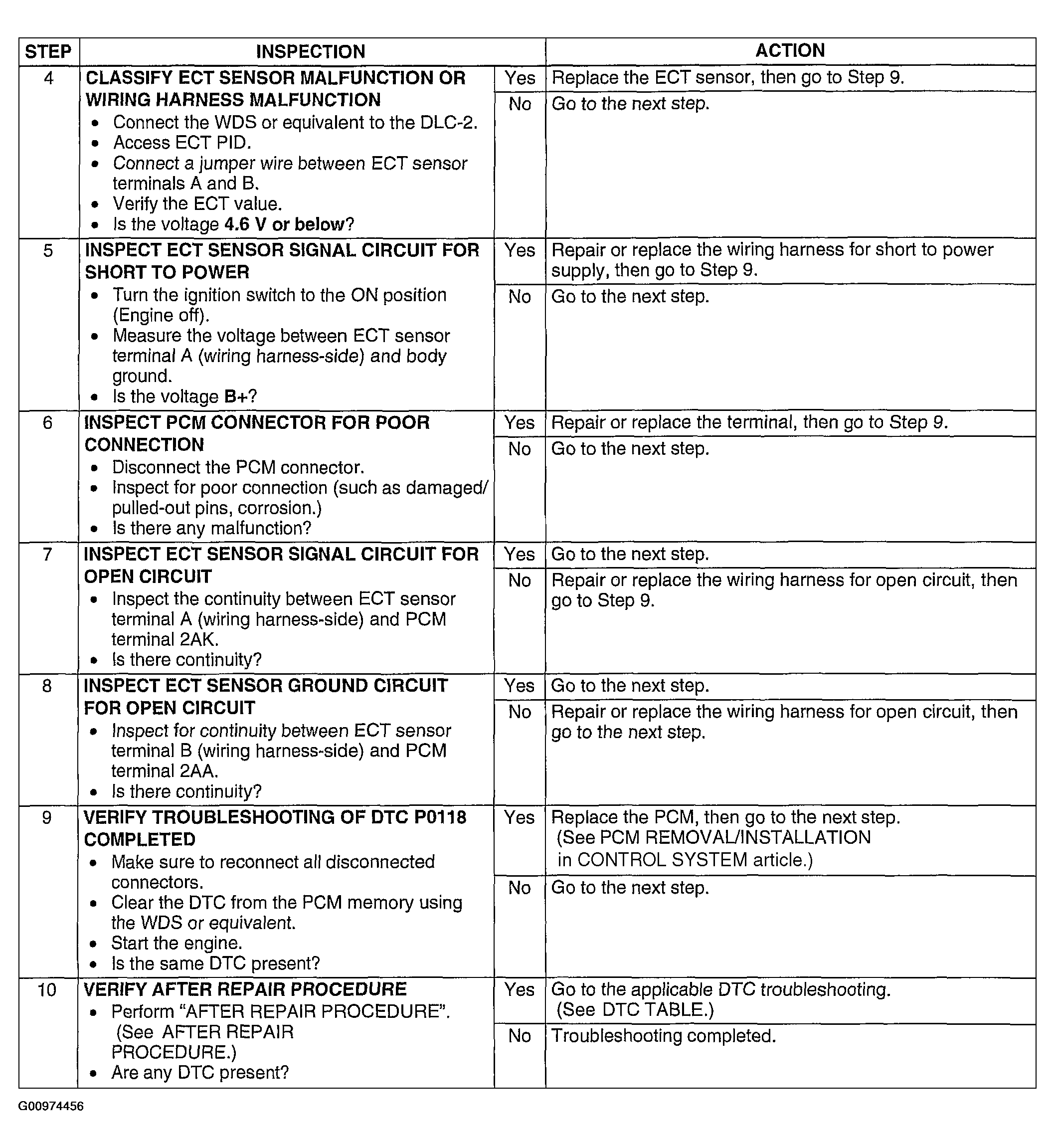

Fig 2: DTC P0118: Diagnostic Procedure Chart (Steps 4-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
