Diagnostic Procedure

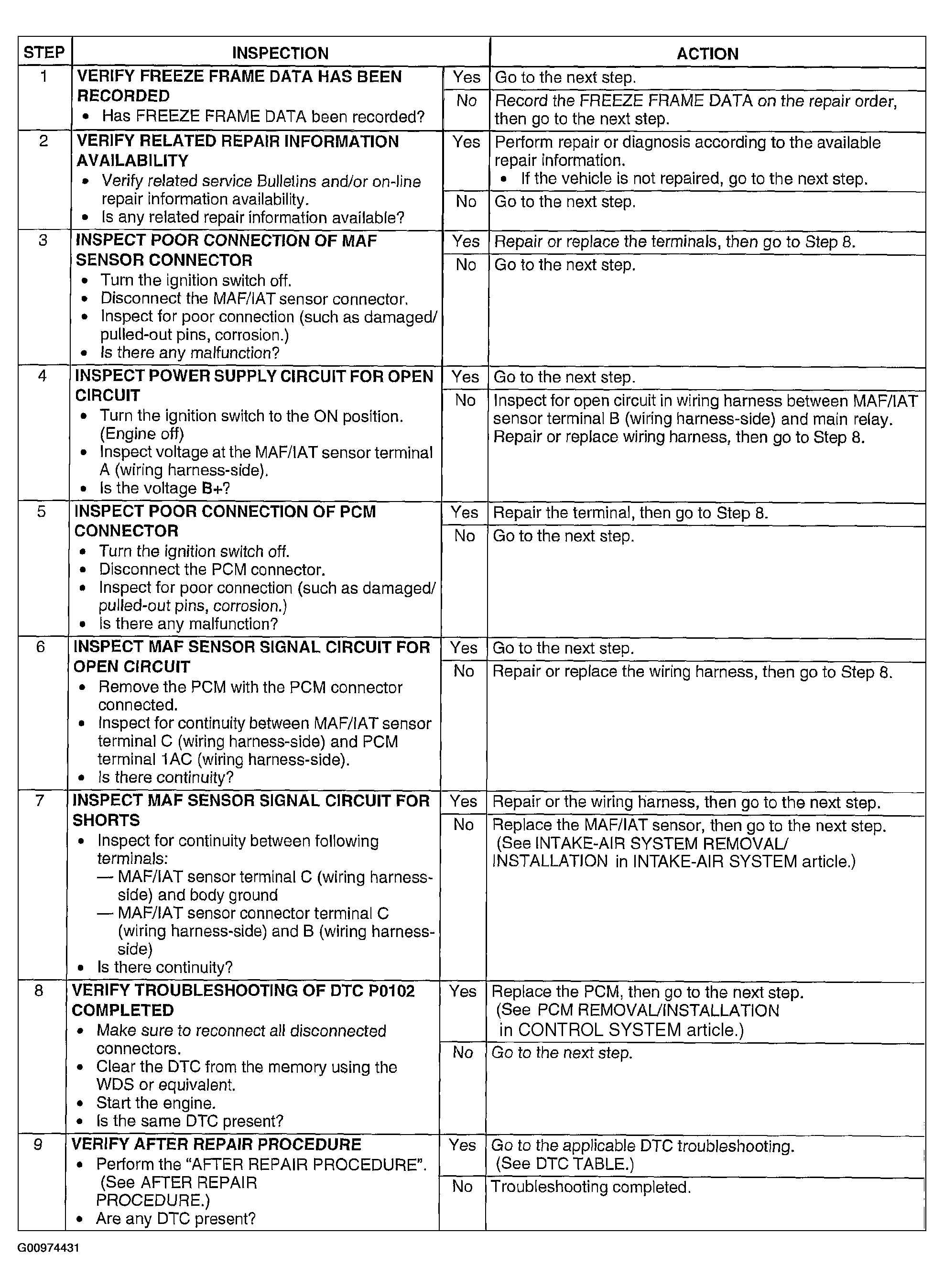

Fig 1: DTC P0102: Diagnostic Procedure Chart (Steps 1-9)
G00974431Courtesy of MAZDA MOTORS CORP.
