DTC P0030: Front Ho2S Heater Control Circuit Problem
>>
Notes
DTC P0030: Front Ho2S Heater Control Circuit Problem: Notes

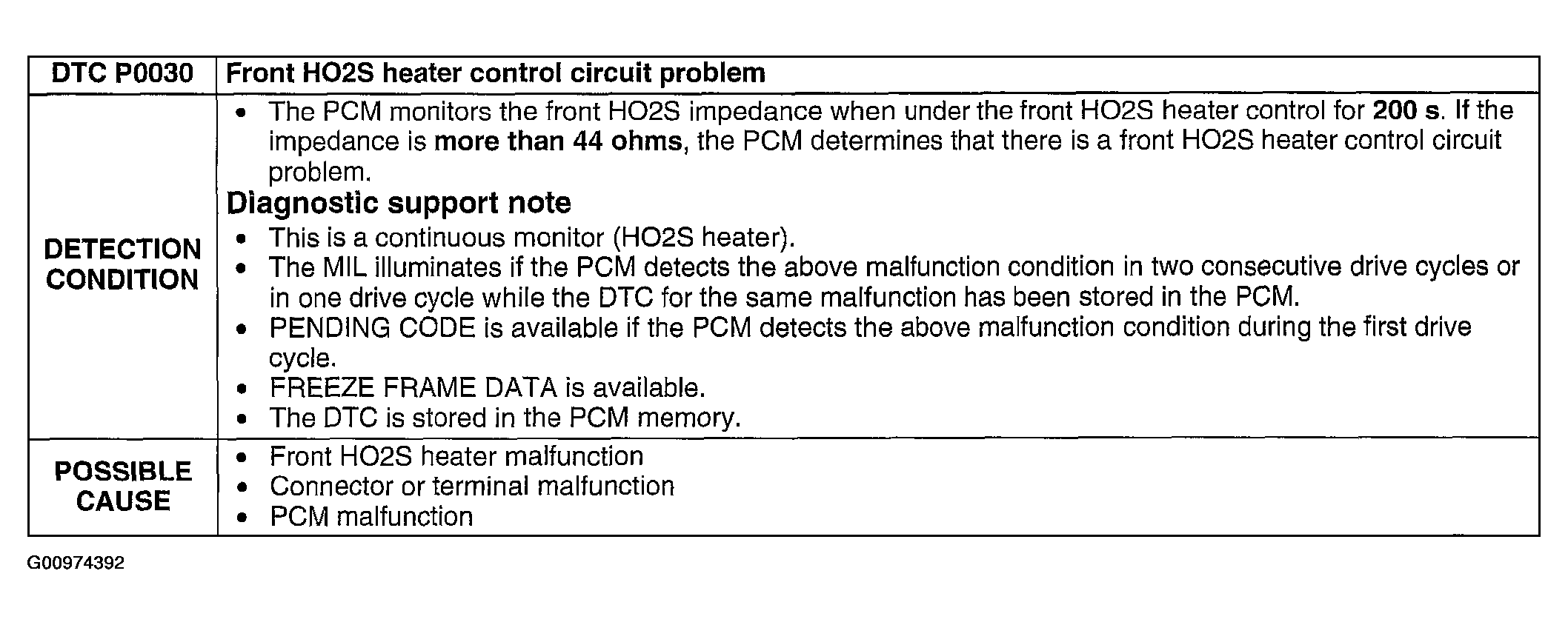

Fig 1: DTC P0030: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
