DTC P0030: Front Ho2S Heater Control Circuit Problem
>>
Diagnostic procedure
Diagnostic procedure

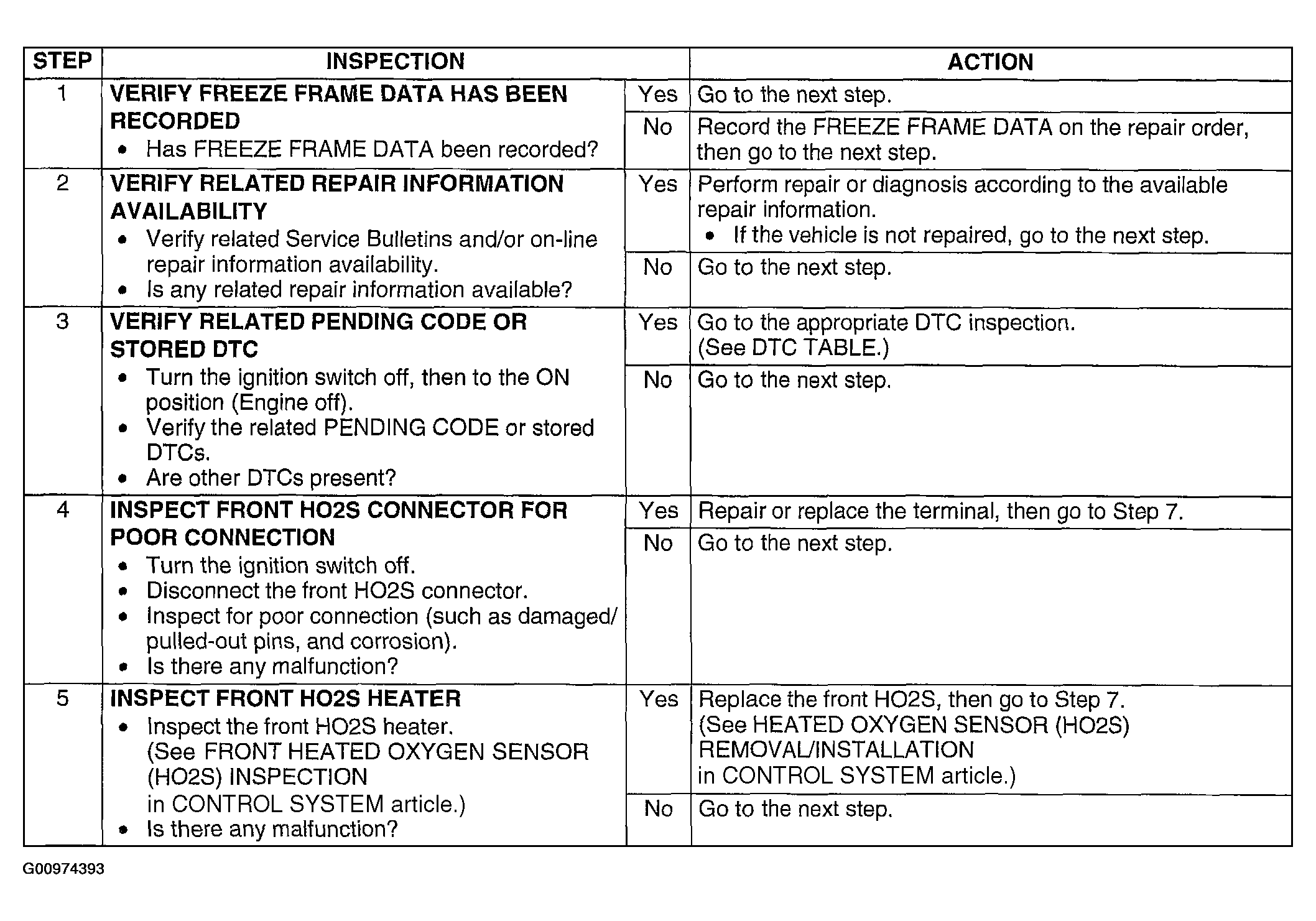

Fig 1: DTC P0030: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

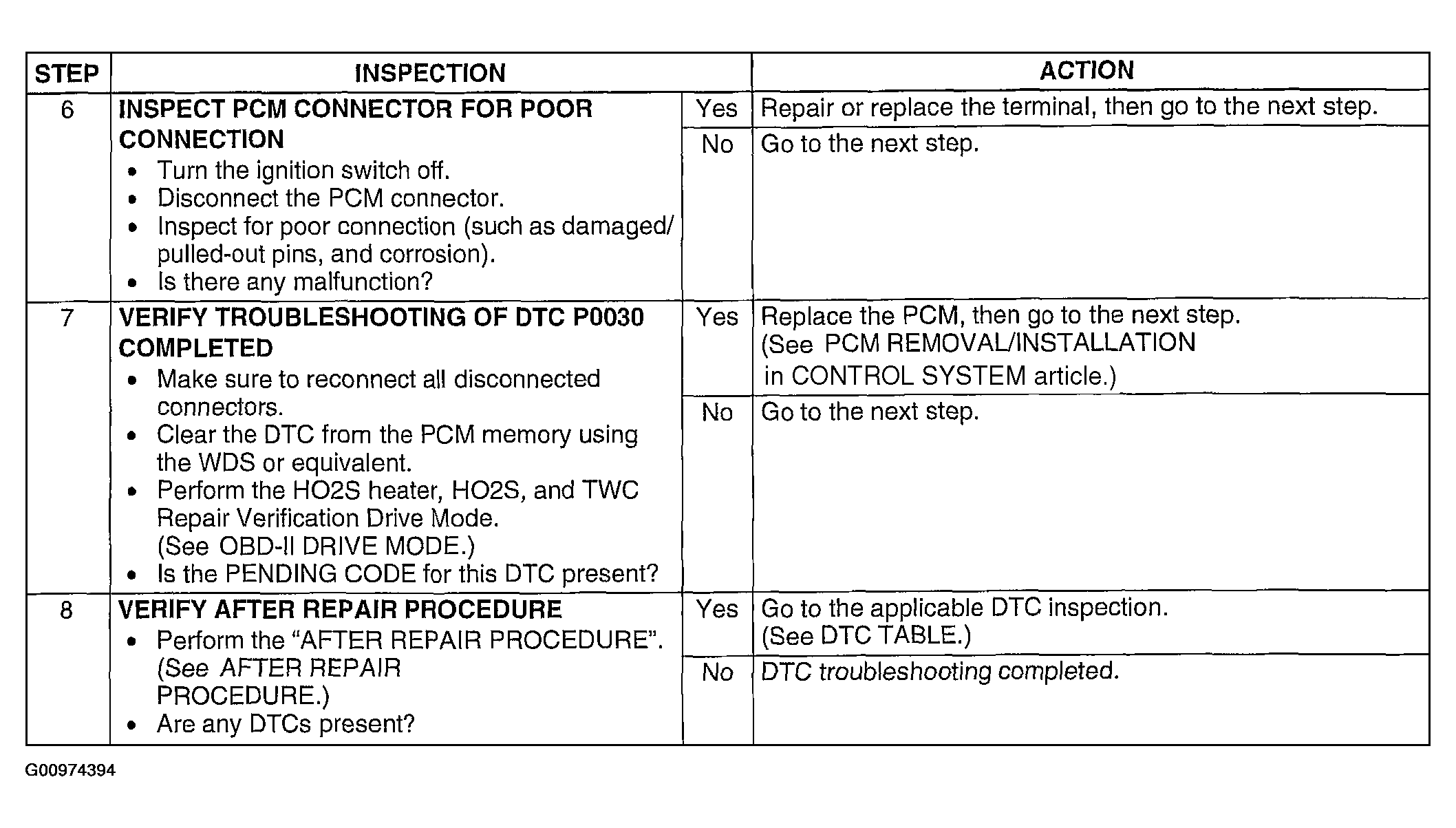

Fig 2: DTC P0030: Diagnostic Procedure Chart (Steps 6-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
