DTC P0016: CKP-CMP Correlation: Notes

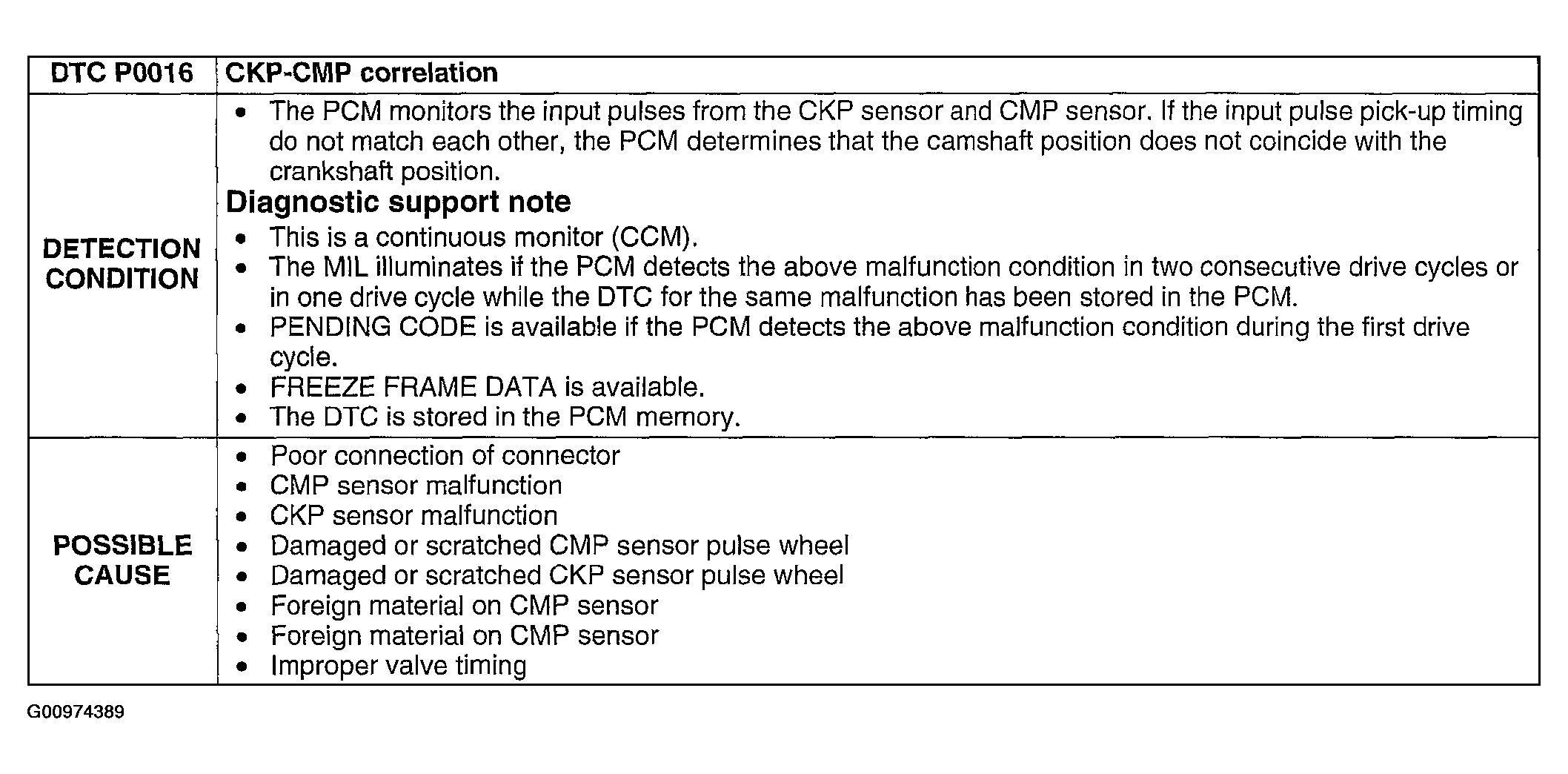

Fig 1: DTC P0016: Detection Condition & Possible Causes Chart
G00974389Courtesy of MAZDA MOTORS CORP.
