Center Panel Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF CENTER MODULE

    1 Screw
    2 Connector
    3 Antenna feeder
    4 Center panel module (See Center Panel Module Removal Note .)

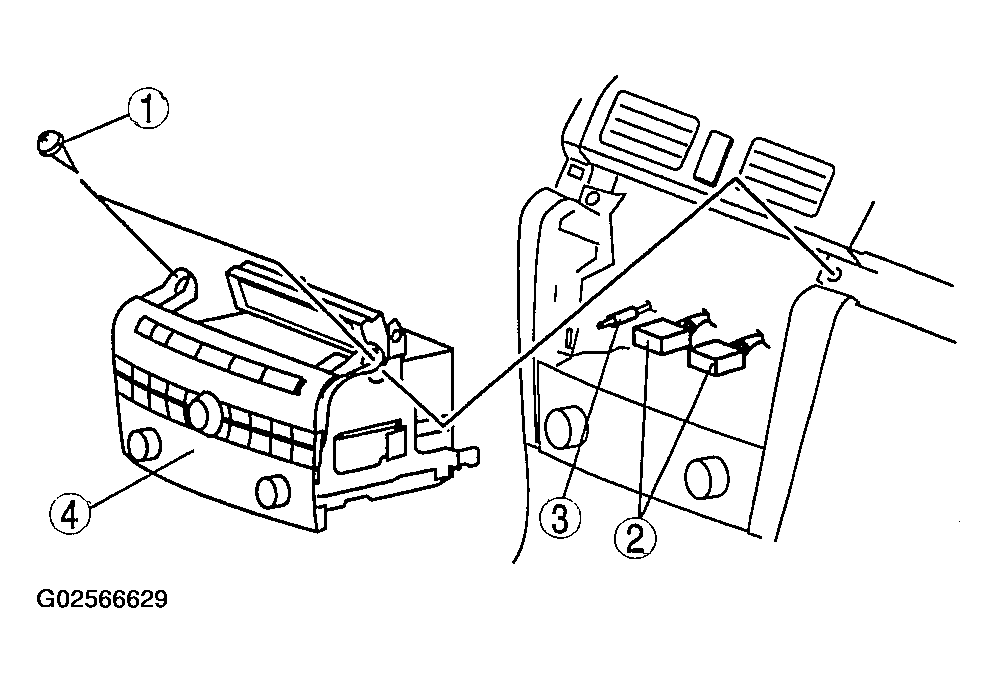

    Fig 1: Removing/Installing Center Panel Module
    G02566629Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
CAUTION:
  • When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
