Diagnostic Trouble Codes Table

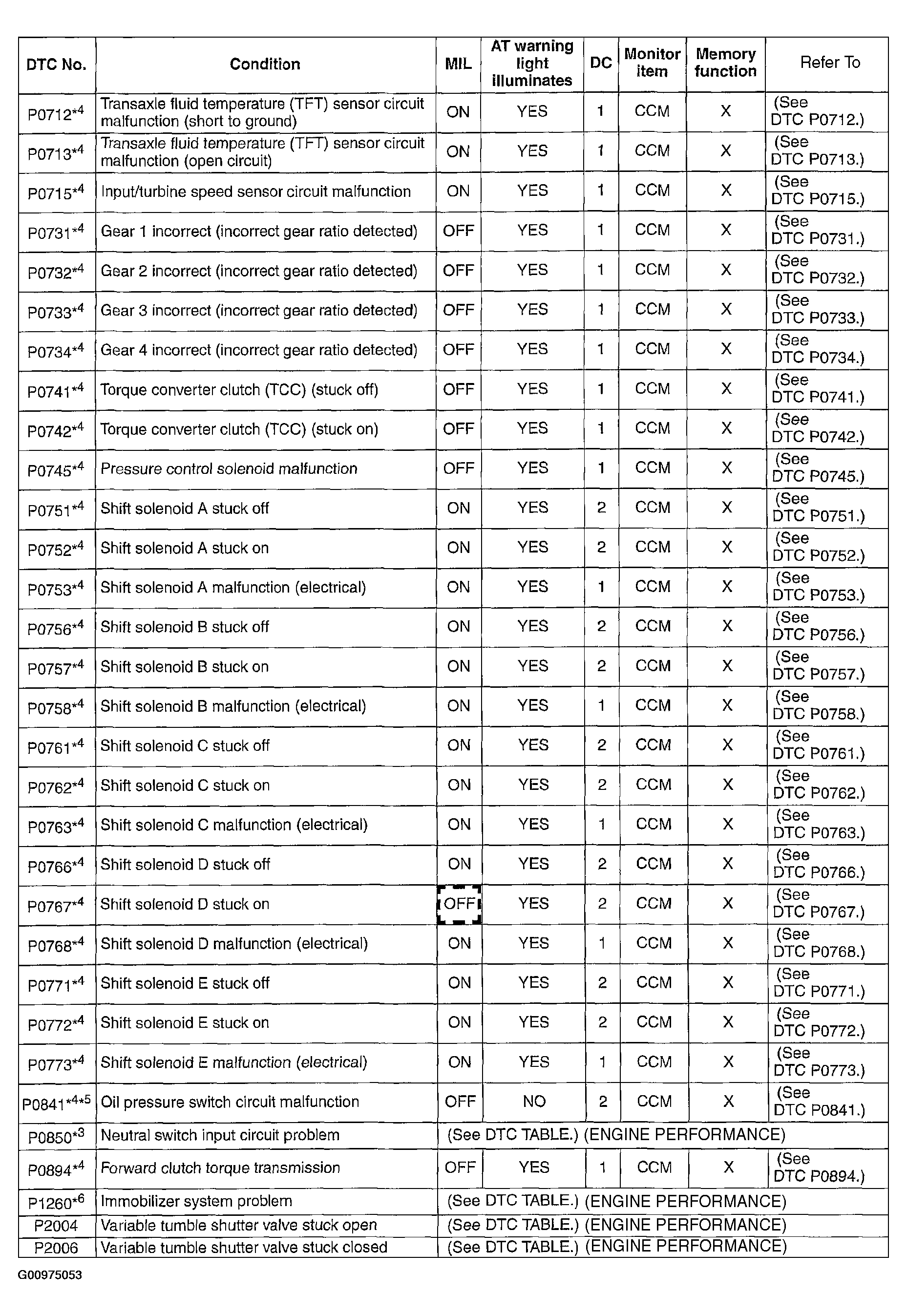

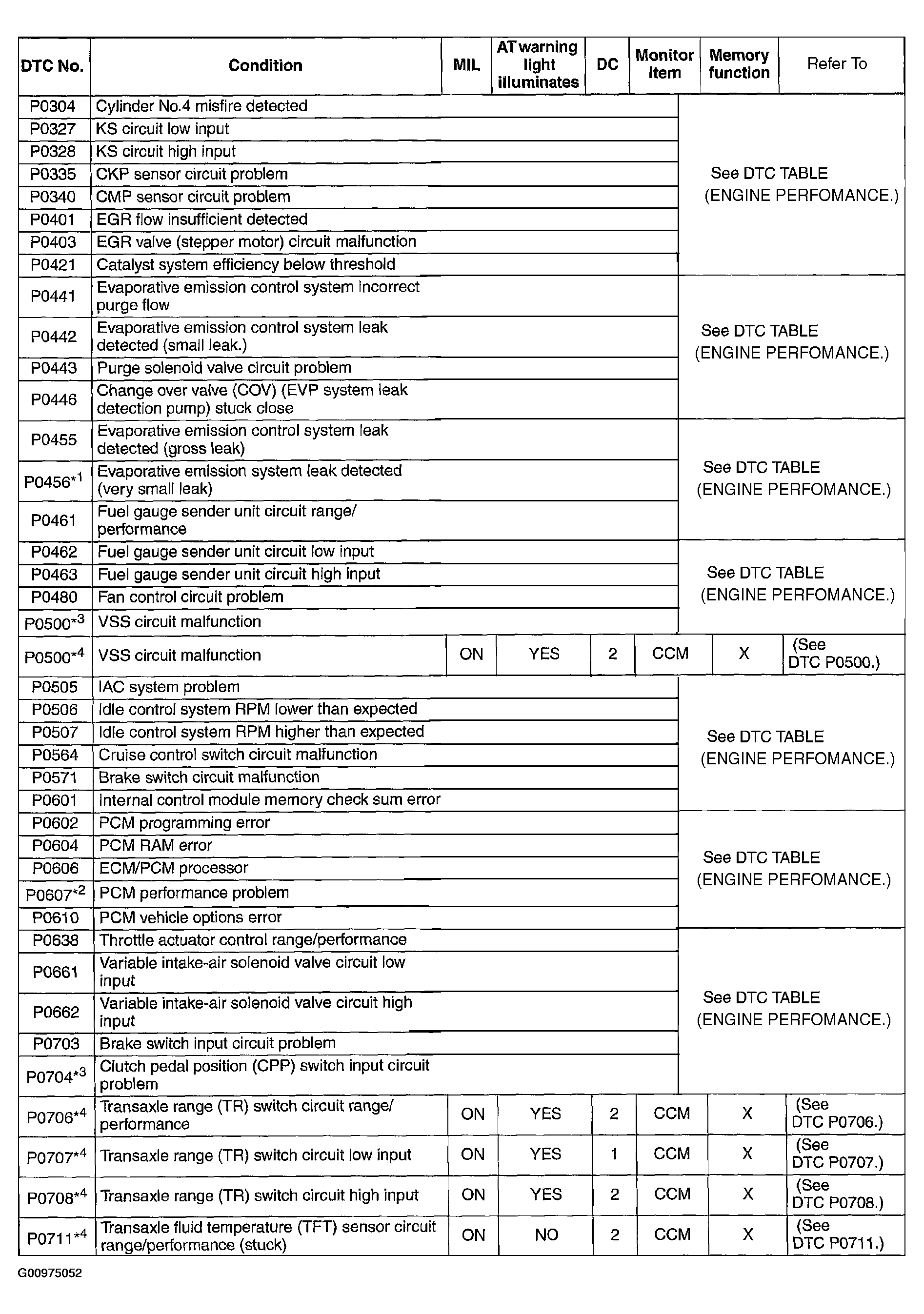

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500 | VEHICLE SPEED SENSOR (VSS) CIRCUIT MALFUNCTION |
| DTC P0706 | TRANSAXLE RANGE (TR) SWITCH RANGE/PERFORMANCE |
| DTC P0707 | TRANSAXLE RANGE (TR) SWITCH CIRCUIT LOW INPUT |
| DTC P0708 | TRANSAXLE RANGE (TR) SWITCH CIRCUIT HIGH INPUT |
| DTC P0711 | TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CIRCUIT RANGE/PERFORMANCE (STUCK) |
| DTC P0712 | TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CIRCUIT MALFUNCTION (SHORT TO GROUND) |
| DTC P0713 | TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CIRCUIT MALFUNCTION (OPEN CIRCUIT) |
| DTC P0715 | INPUT/TURBINE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0731 | GEAR 1 INCORRECT (INCORRECT GEAR RATIO DETECTED) |
| DTC P0732 | GEAR 2 INCORRECT (INCORRECT GEAR RATIO DETECTED) |
| DTC P0733 | GEAR 3 INCORRECT (INCORRECT GEAR RATIO DETECTED) |
| DTC P0734 | GEAR 4 INCORRECT (INCORRECT GEAR RATIO DETECTED) |
| DTC P0741 | TORQUE CONVERTER CLUTCH (TCC) STUCK OFF |
| DTC P0742 | TORQUE CONVERTER CLUTCH (TCC) STUCK ON |
| DTC P0745 | PRESSURE CONTROL SOLENOID MALFUNCTION |
| DTC P0751 | SHIFT SOLENOID A STUCK OFF |
| DTC P0752 | SHIFT SOLENOID A STUCK ON |
| DTC P0753 | SHIFT SOLENOID A MALFUNCTION (ELECTRICAL) |
| DTC P0756 | SHIFT SOLENOID B STUCK OFF |
| DTC P0757 | SHIFT SOLENOID B STUCK ON |
| DTC P0758 | SHIFT SOLENOID B MALFUNCTION (ELECTRICAL) |
| DTC P0761 | SHIFT SOLENOID C STUCK OFF |
| DTC P0762 | SHIFT SOLENOID C STUCK ON |
| DTC P0763 | SHIFT SOLENOID C MALFUNCTION (ELECTRICAL) |
| DTC P0766 | SHIFT SOLENOID D STUCK OFF |
| DTC P0767 | SHIFT SOLENOID D STUCK ON |
| DTC P0768 | SHIFT SOLENOID D MALFUNCTION (ELECTRICAL) |
| DTC P0771 | SHIFT SOLENOID E STUCK OFF |
| DTC P0772 | SHIFT SOLENOID E STUCK ON |
| DTC P0773 | SHIFT SOLENOID E MALFUNCTION (ELECTRICAL) |
| DTC P0841 | OIL PRESSURE SWITCH CIRCUIT MALFUNCTION |
| DTC P0894 | FORWARD CLUTCH POWER TRANSMISSION MALFUNCTION |
