DTC P0707: Transaxle Range (Tr) Switch Circuit Low Input: Notes

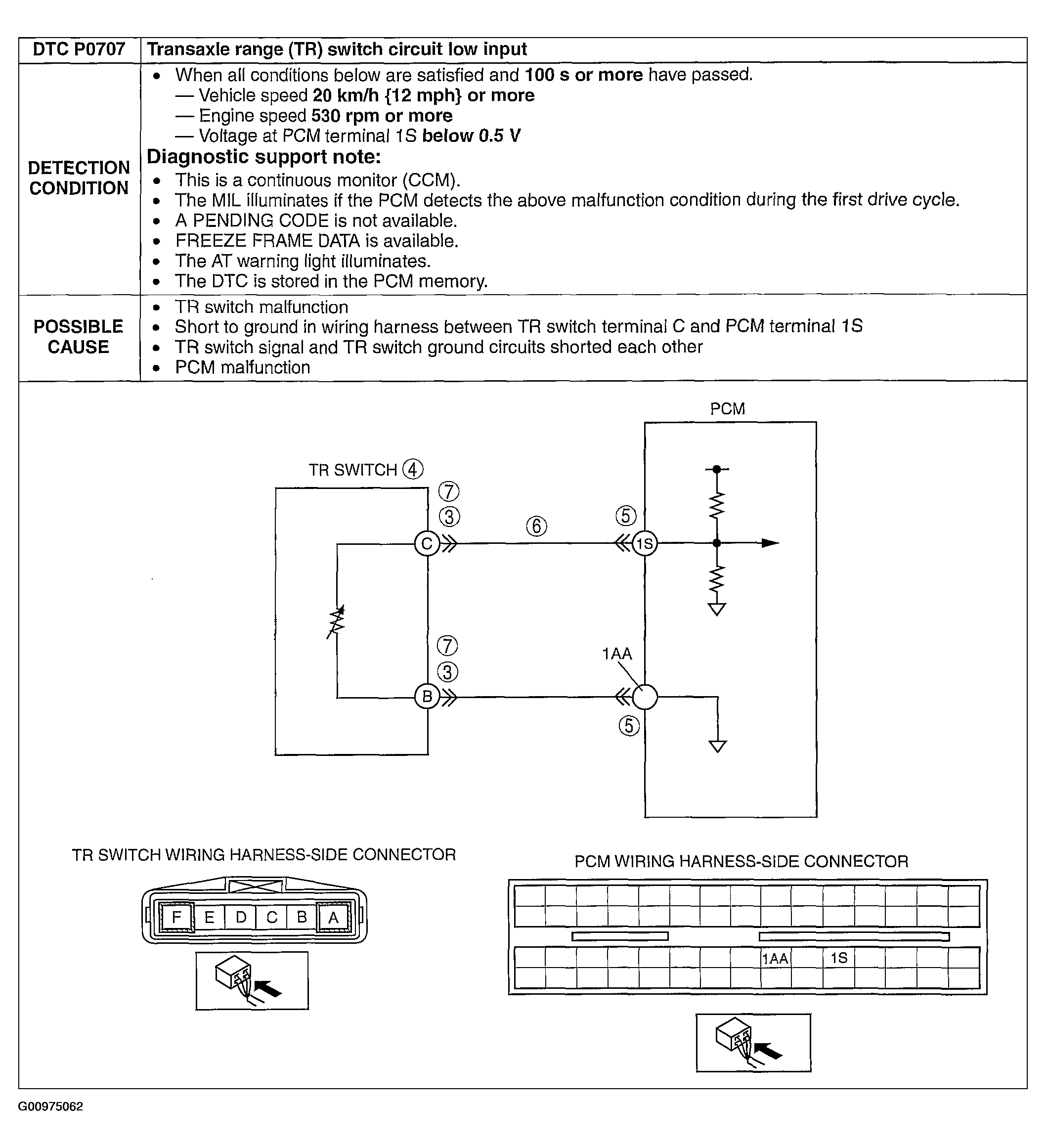

Fig 1: Possible Cause - DTC P0707

G00975062

Courtesy of MAZDA MOTORS CORP.
