3 i, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
On-Board Diagnostic [Automatic Transaxle]
>>
Automatic Transaxle Control System Wiring Diagram
>>
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

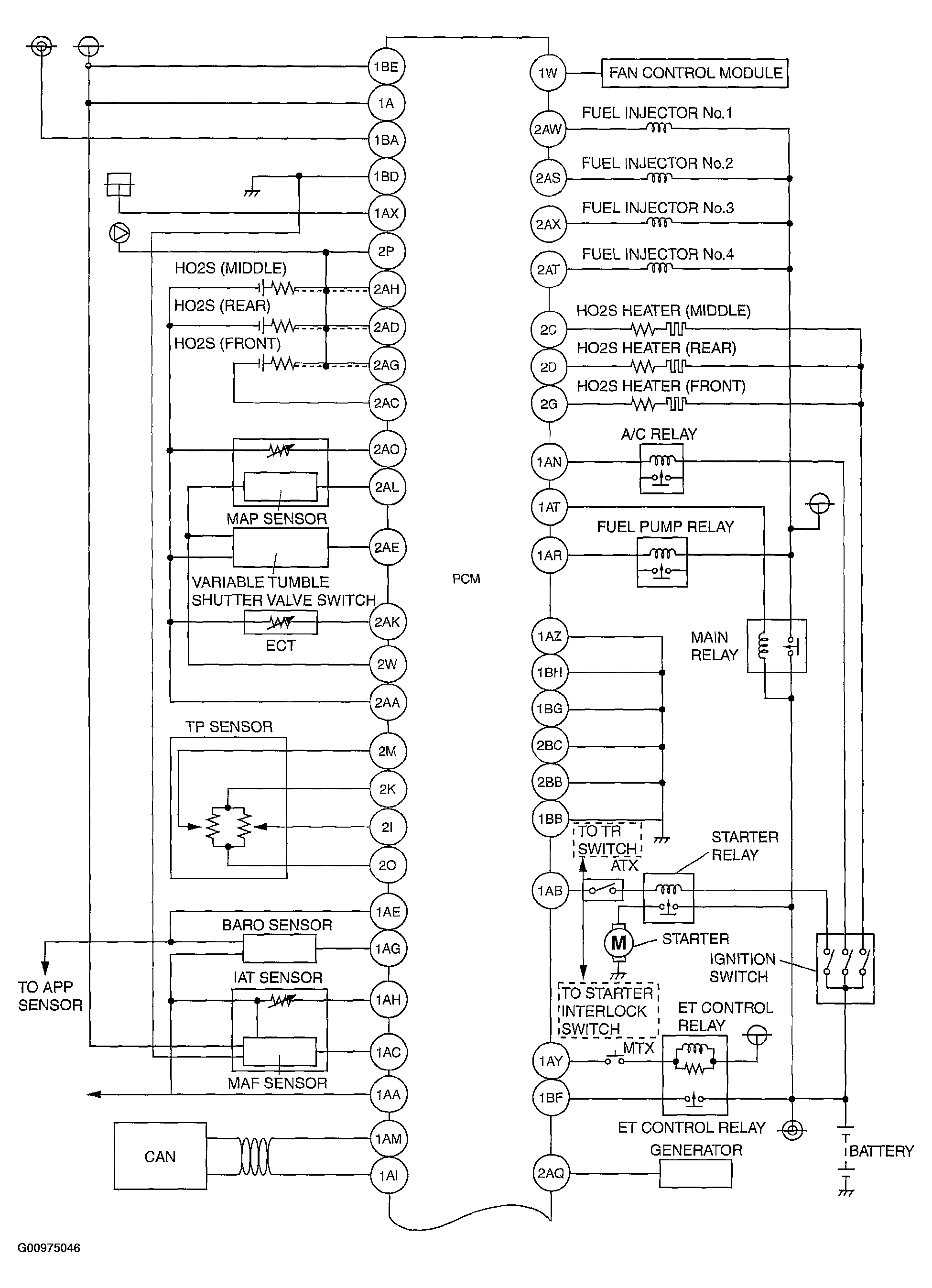

Fig 1: Automatic Transaxle Control System Wiring Diagram (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

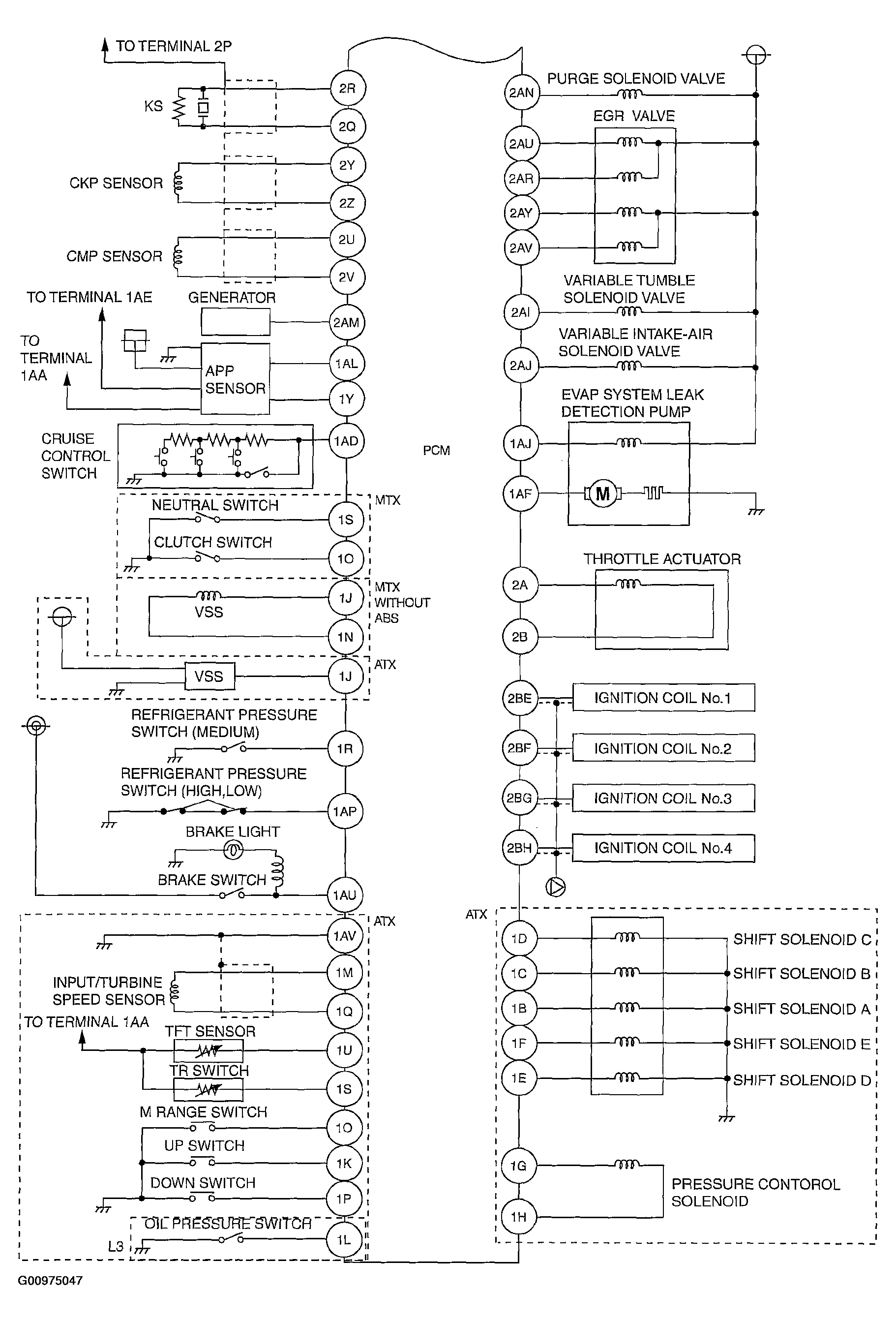

Fig 2: Automatic Transaxle Control System Wiring Diagram (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
