SECURITY ACCESS PROCEDURE CHANGE FOR CODED ACCESS PATS AND ADVANCED KEYLESS SYSTEM - SERVICE TIP

TECHNICAL SERVICE BULLETIN

Reference Number(s): 09-003/06

MAZDA:

Multi-Model

Superceded Bulletin(s): 09-003/06, Date of Issue: January 26, 2006

NOTE: This bulletin supersedes the previous bulletin issued on 01/26/06. The APPLICABLE MODELS and DESCRIPTION have been revised.

APPLICABLE MODEL(S)/VINS

2003-2007 Mazda6

2004-2007 Mazda3

2004-2007 RX-8

2006-2007 Mazda5

2006-2007 Mazdaspeed6

2006-2007 MX-5

2007 CX-7

DESCRIPTION

The MS3 Incode website will require VIN, Part Number, Serial Number and Error Control in addition to the Outcode in order to obtain the appropriate Incode for the subject models. The Incode is then used to grant access to the PATS security. This change has been implemented to enhance the overall security when gaining access to the system.

The IDS/PDS will provide the following for each module affected in PATS security access.

Dealer Code
Technician Name
Technician ID (last 4 digits of SSN)
E-mail
VIN
Part Number
Serial Number
Error Control Number
Request Reason
Model Type
Outcode

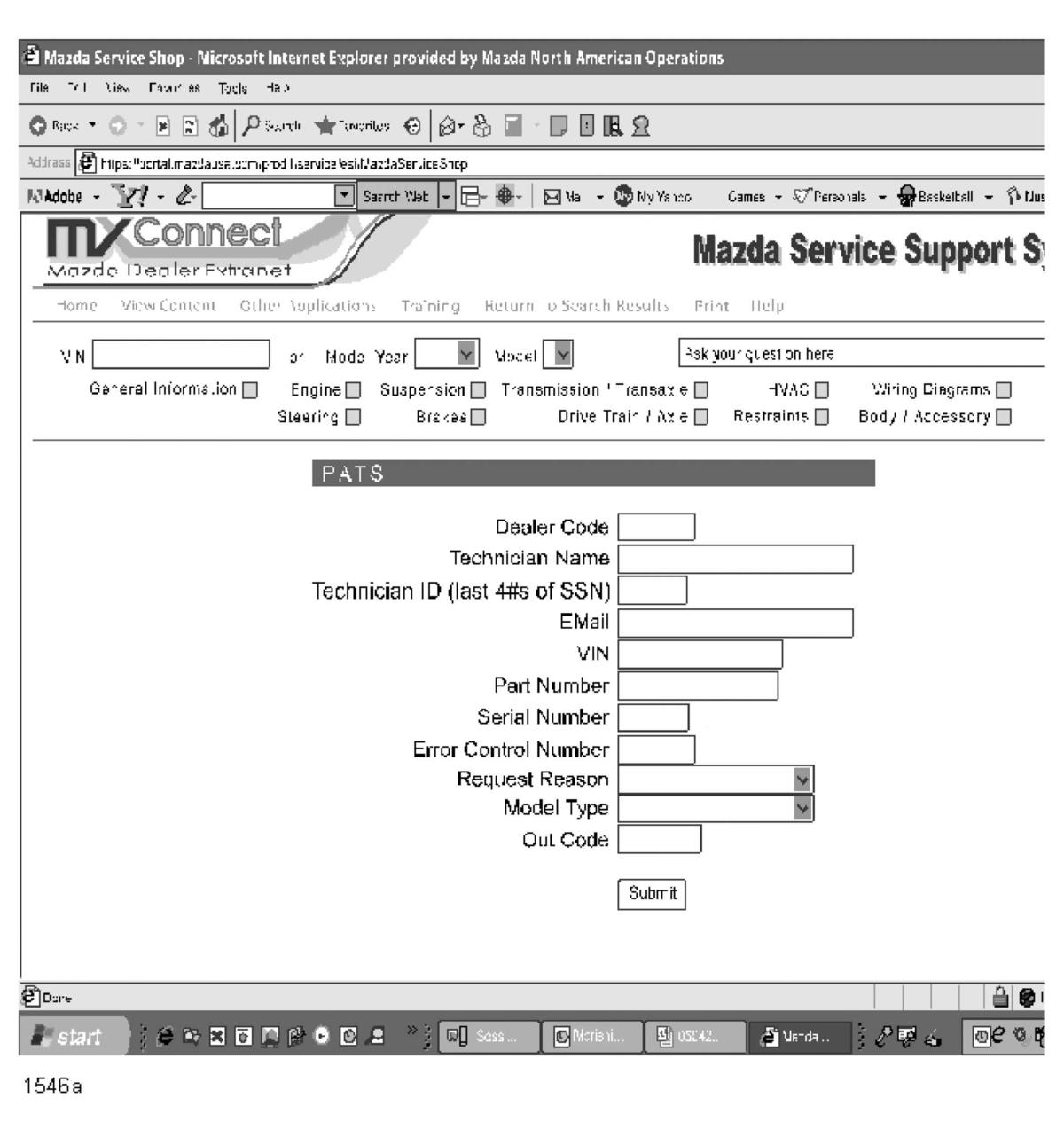

Fig 1: Accessing Pats Incodes

Courtesy of MAZDA MOTORS CORP.

Mazda Incode web site has been updated to reflect PATS application software of IDS/PDS. Please pay close attention to the following for accessing PATS INCODES on Mazda Service Support System (MS3).

You MUST be an authorized Mazda Technician, Senior Technician, Master Technician, Shop Foreman, Service Manager or Service Director. Technician Trainees are not allowed access to the incode information.
Security for access to the INCODE information has been changed. If you are not the technician that initiated the existing MS3 session, and you fit any of the criteria listed above, you must log out of MS3 and re-initiate a new MS3 session using your user ID and password.

Please follow the repair procedure to obtain Incode.

REPAIR PROCEDURE

2004-2007 RX-8, 2004-2007 MAZDA3, 2006-2007 MAZDA5, 2006-2007 MX-5, 2007 CX-7 AND ALL OTHER VEHICLES EQUIPPED WITH EPATS (PATS LOCATED OUTSIDE OF PCM)

Enter security access.
NOTE:
- The following screen is an example of 2004-2007 RX-8. All other EPATS equipped vehicles will have slightly different screen text.

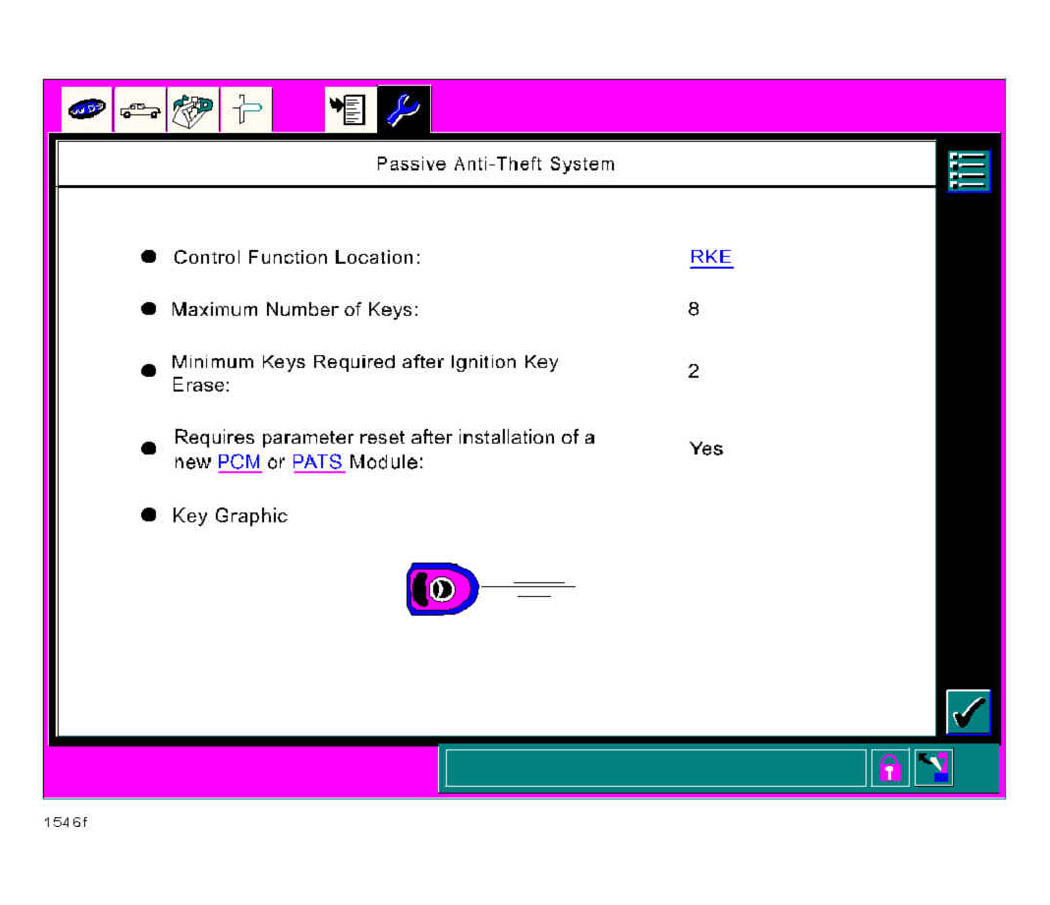

Fig 2: Passive Anti Theft System Display Screen
Courtesy of MAZDA MOTORS CORP.

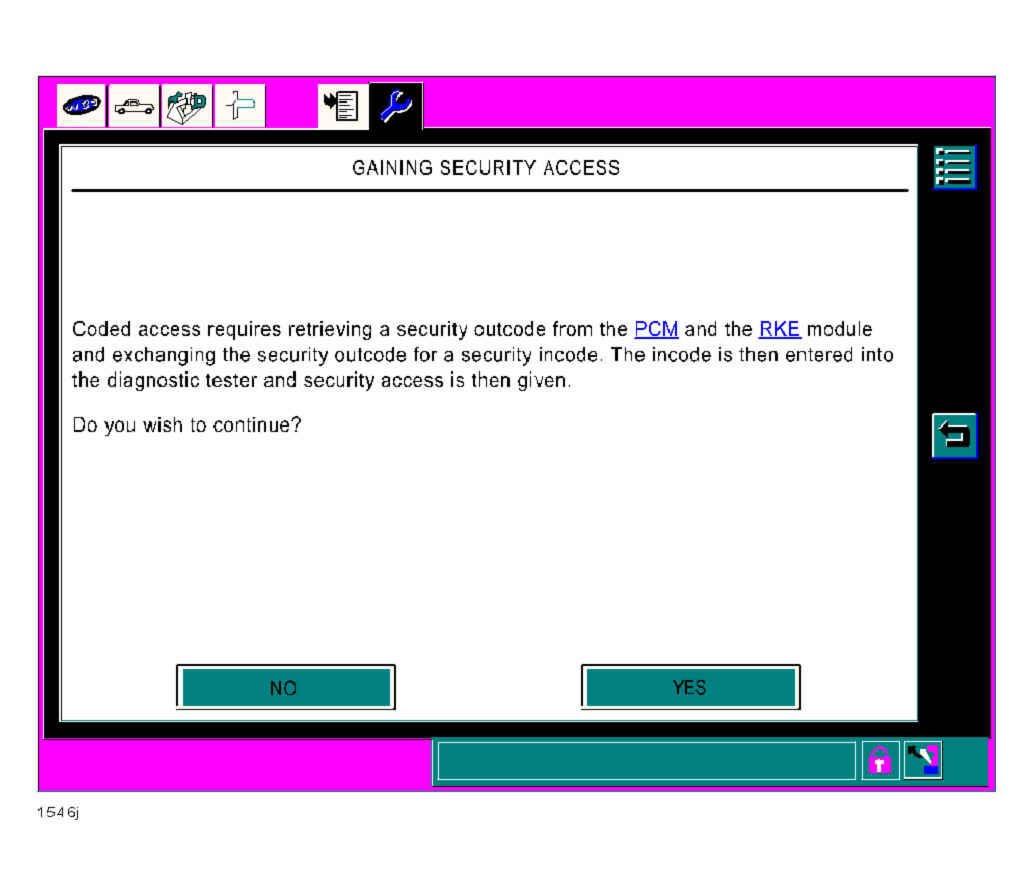

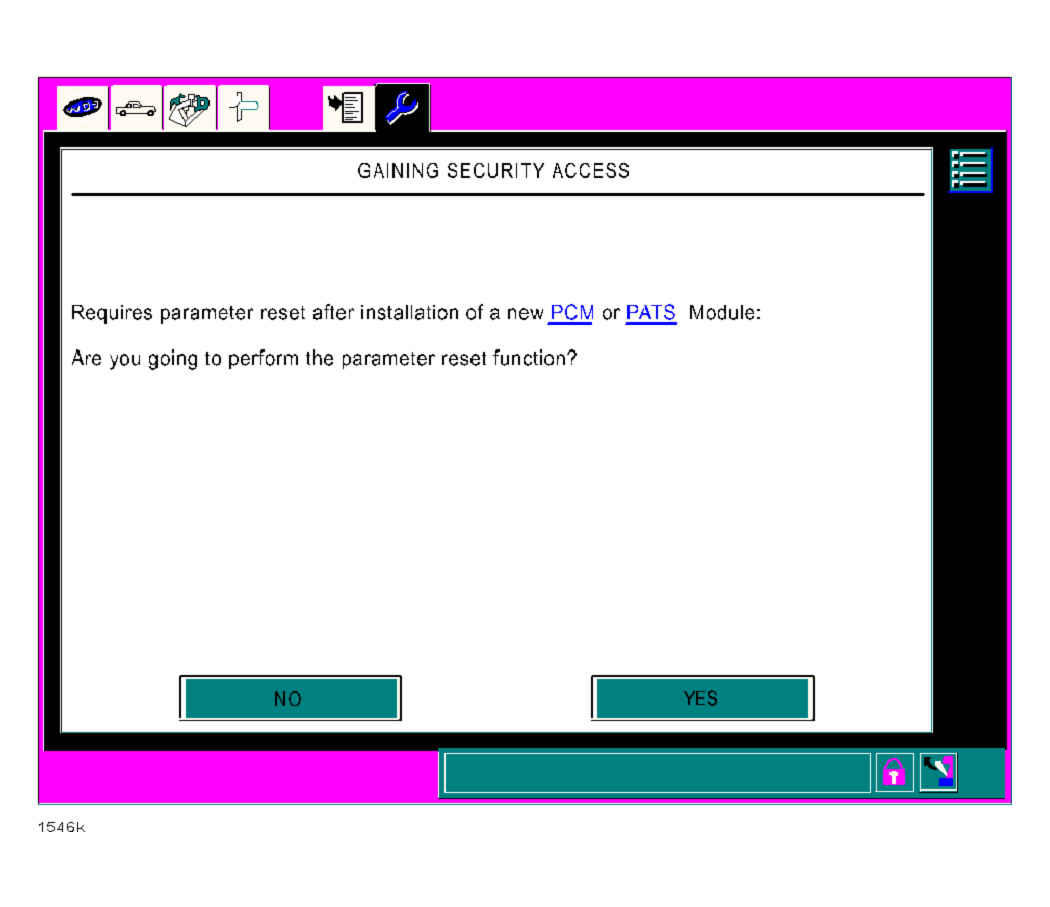

Fig 3: Gaining Security Access Display Screen
Courtesy of MAZDA MOTORS CORP.

Fig 4: Gaining Security Access Display Screen
Courtesy of MAZDA MOTORS CORP.
Confirm VIN.
- If displayed VIN is not appropriate, choose 'NO' and enter a correct VIN on the next screen.

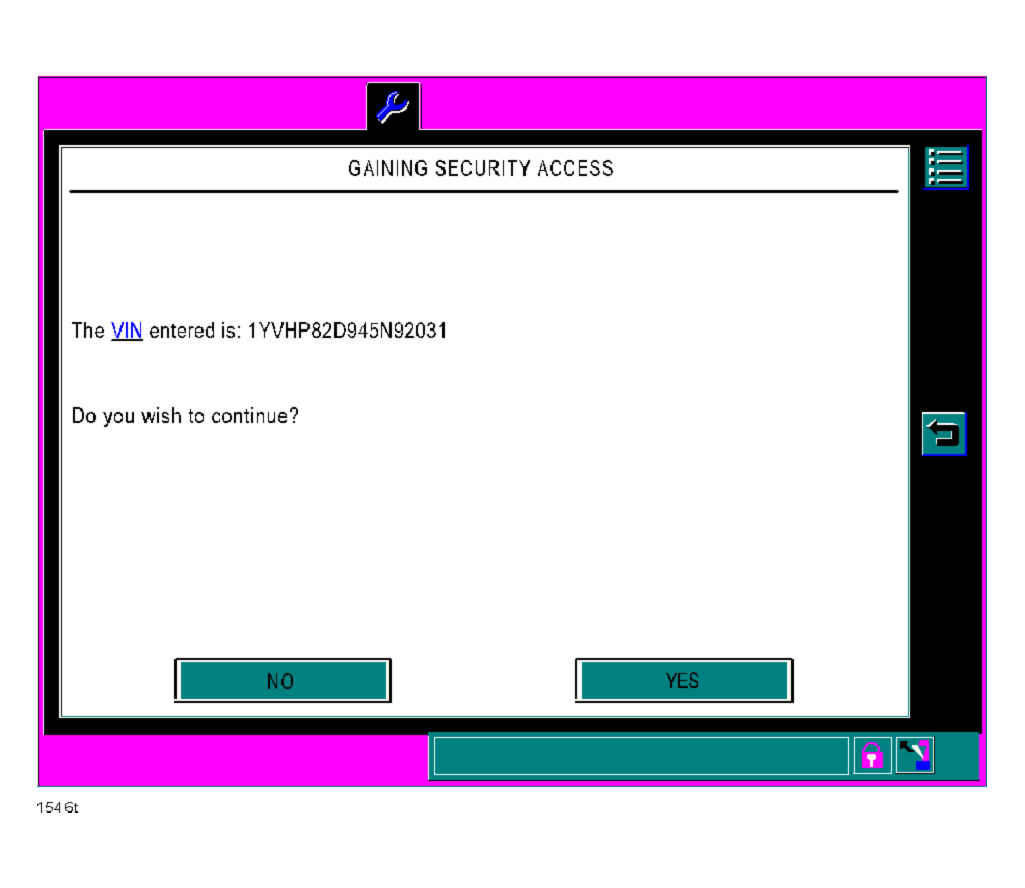

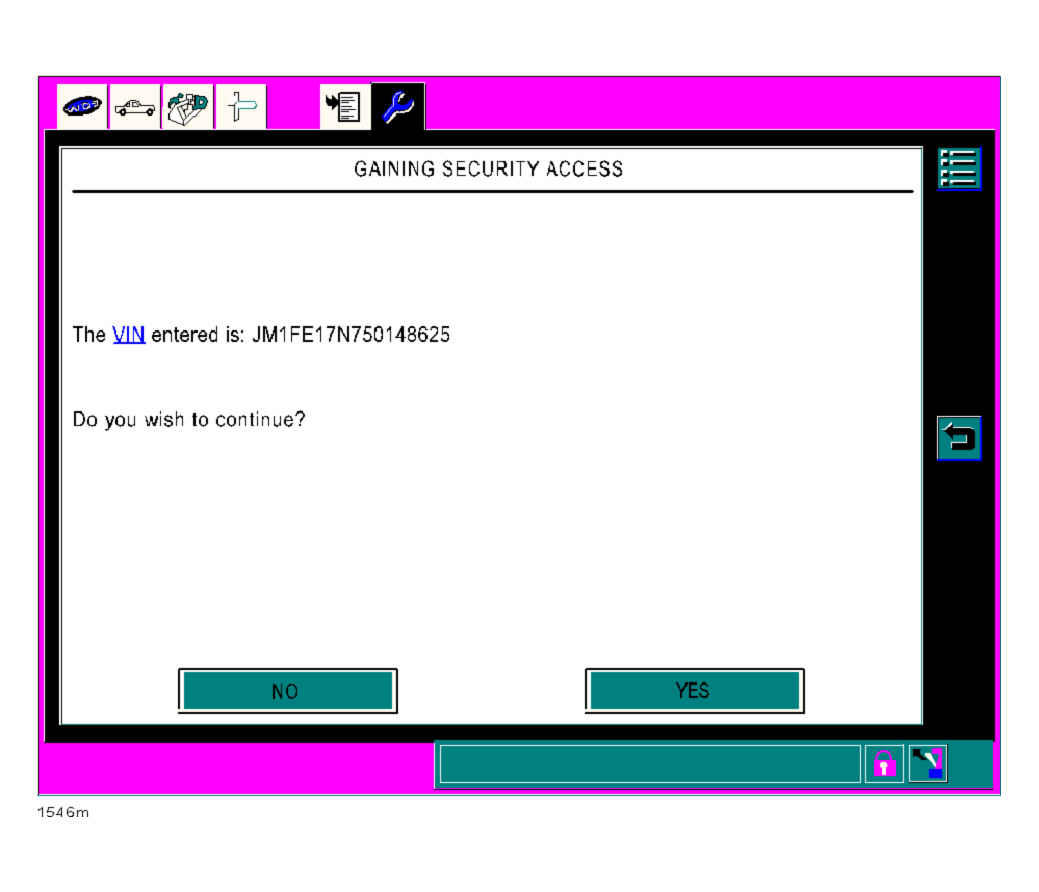

  Fig 5: VIN Number Display Screen
  Courtesy of MAZDA MOTORS CORP.
Provide VIN, Part Number, Serial Number, Outcode and Error Control to obtain Incode on the Incode website.
- In this sample, IDS/PDS tries to access PCM and RKE. In this case, you are required to provide VIN, Part Number and Serial Number shown on the screen and Outcode and Error Control for each module to obtain Incode for each module.

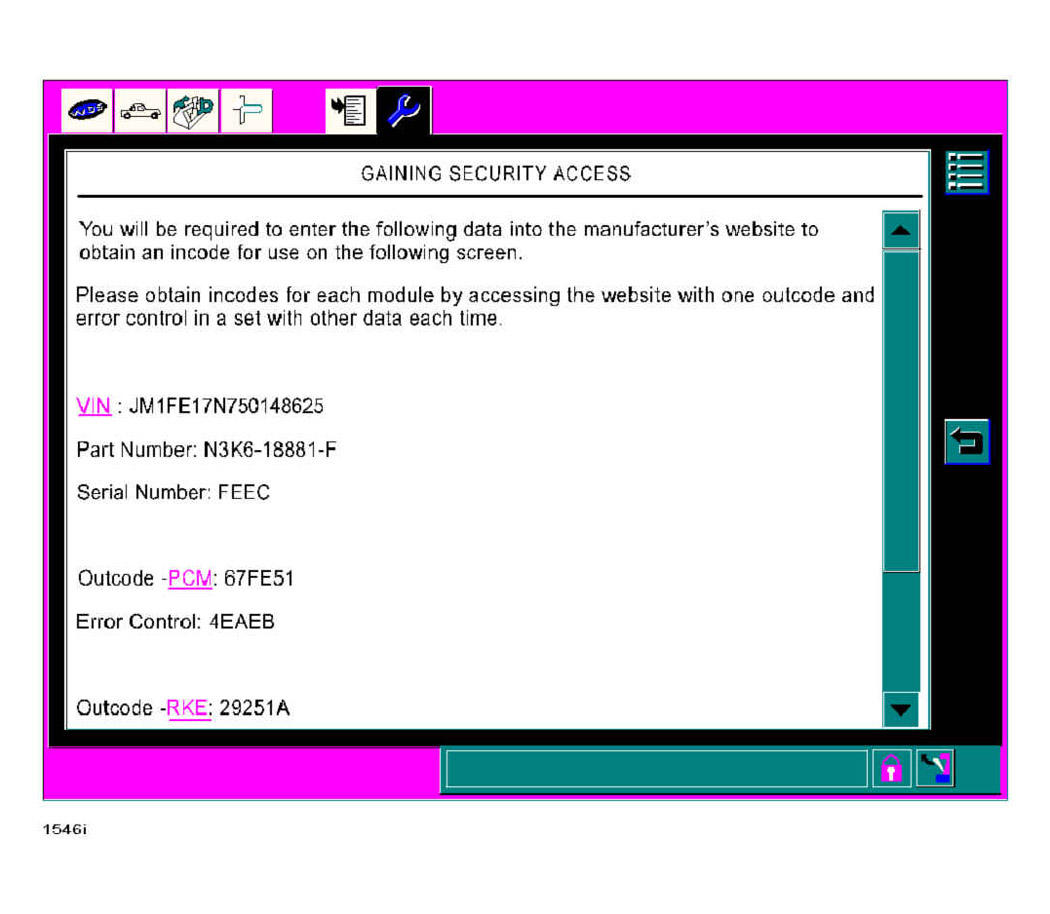

  Fig 6: VIN Number Display Screen
  Courtesy of MAZDA MOTORS CORP.
Enter Incode for each module.

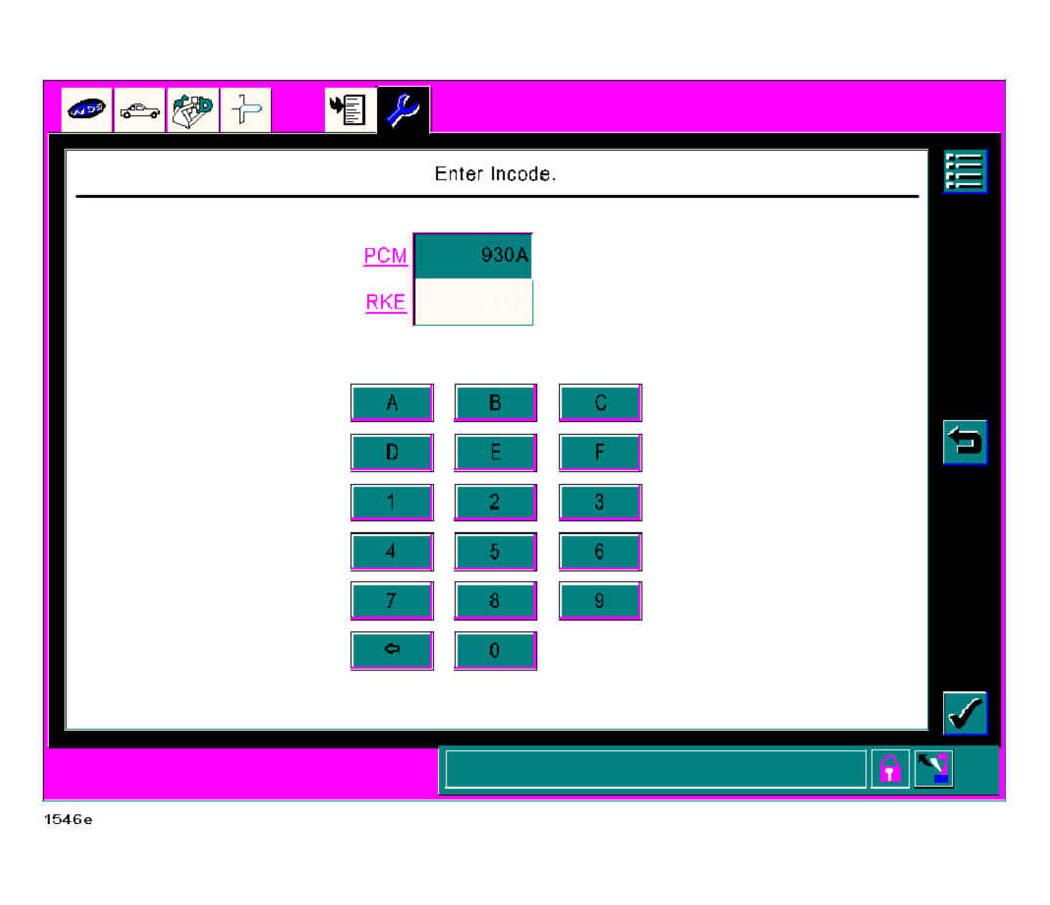

Fig 7: Incode Display Screen
Courtesy of MAZDA MOTORS CORP.
Security access has been achieved.

Fig 8: Security Access Display Screen
Courtesy of MAZDA MOTORS CORP.
Perform immobilizer and advanced keyless functions as normal.

2003-2007 MAZDA6, 2006-2007 MAZDASPEED6, AND ALL OTHER VEHICLES EQUIPPED WITH IPATS (PATS MODULE LOCATED INSIDE OF PCM)

Enter security access.

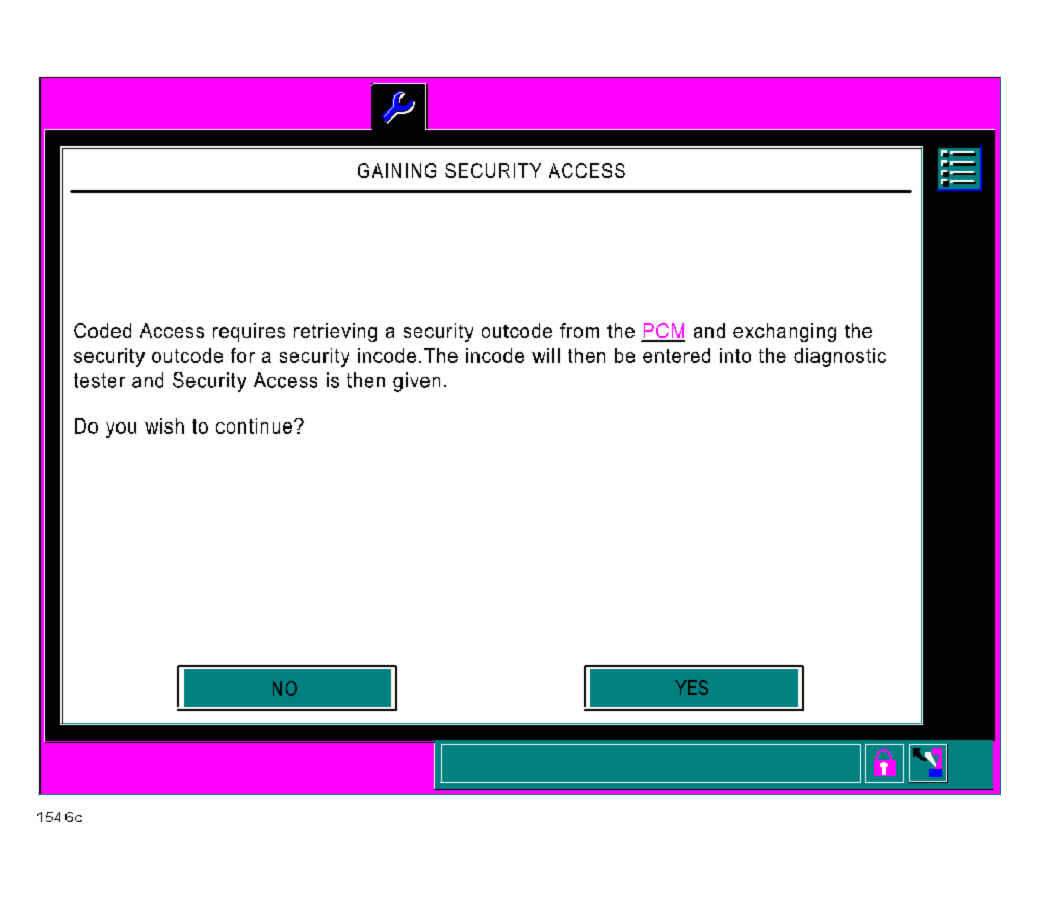

Fig 9: Passive Anti Theft System Display Screen
Courtesy of MAZDA MOTORS CORP.

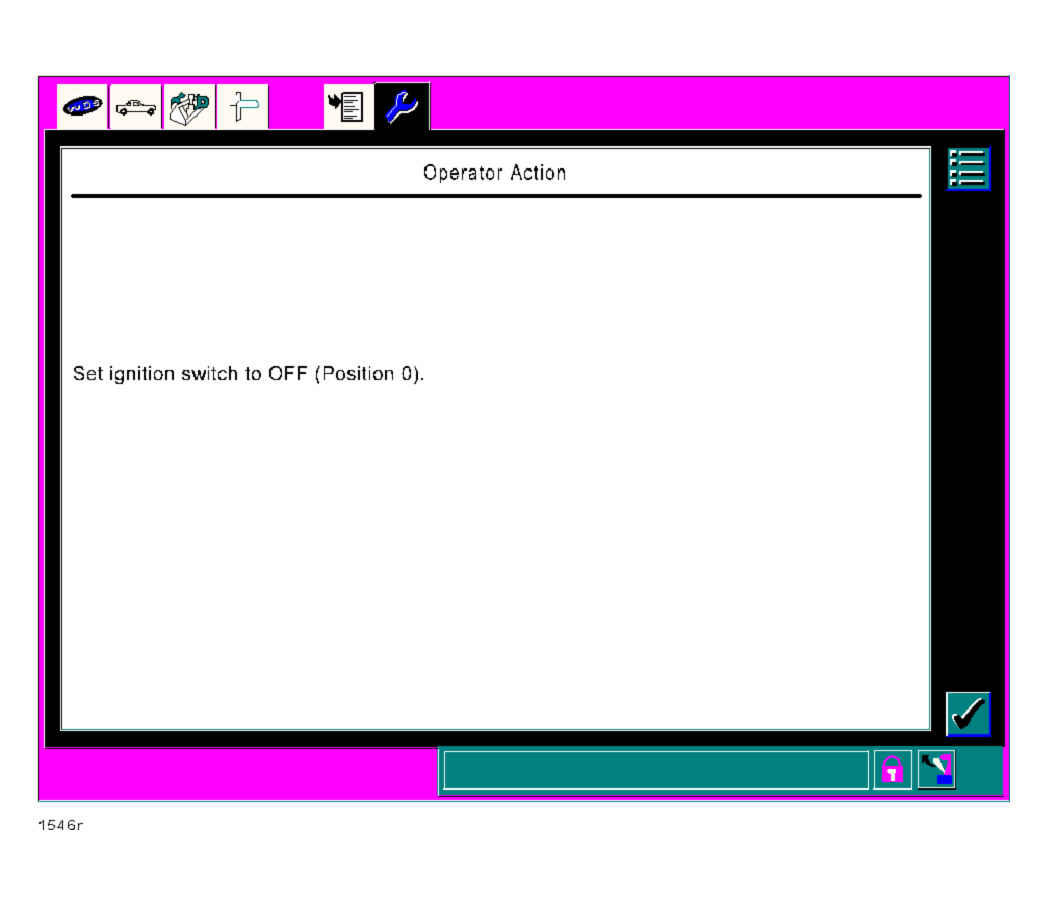

Fig 10: Set Ignition Switch To Off Position Display Screen
Courtesy of MAZDA MOTORS CORP.

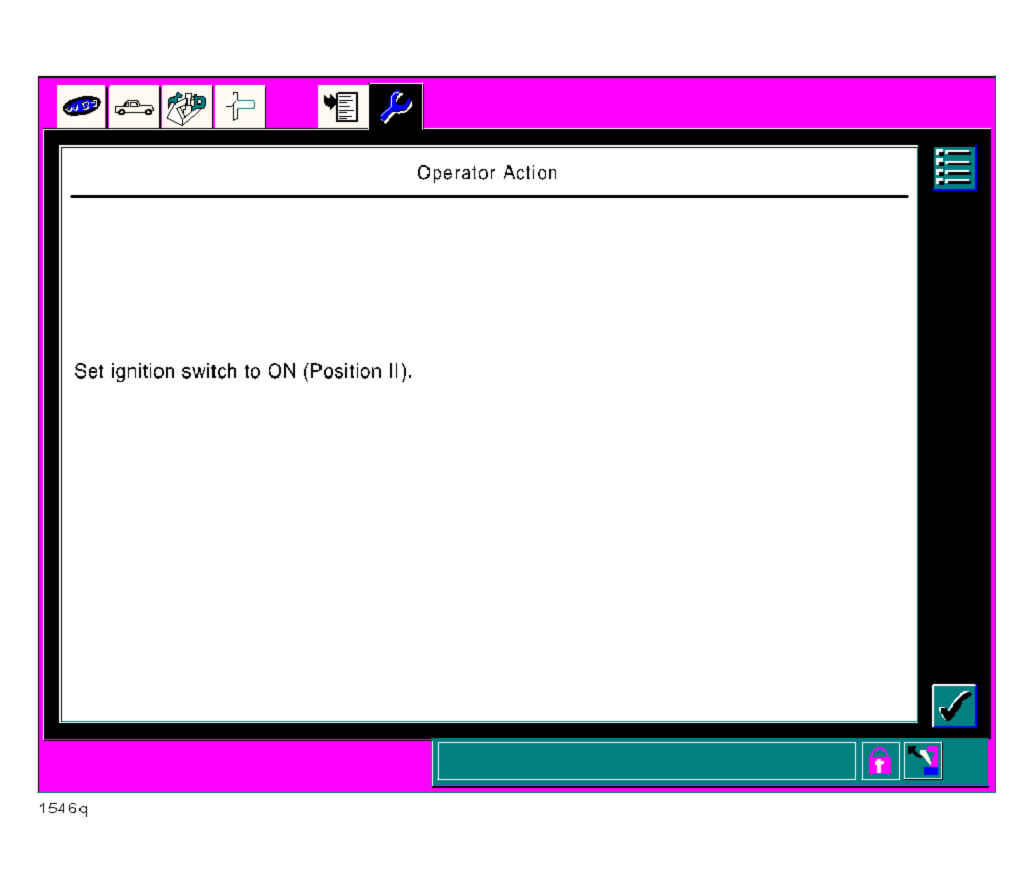

Fig 11: Set Ignition Switch To On Position Display Screen
Courtesy of MAZDA MOTORS CORP.

Fig 12: Set Ignition Switch To Off Position Display Screen
Courtesy of MAZDA MOTORS CORP.

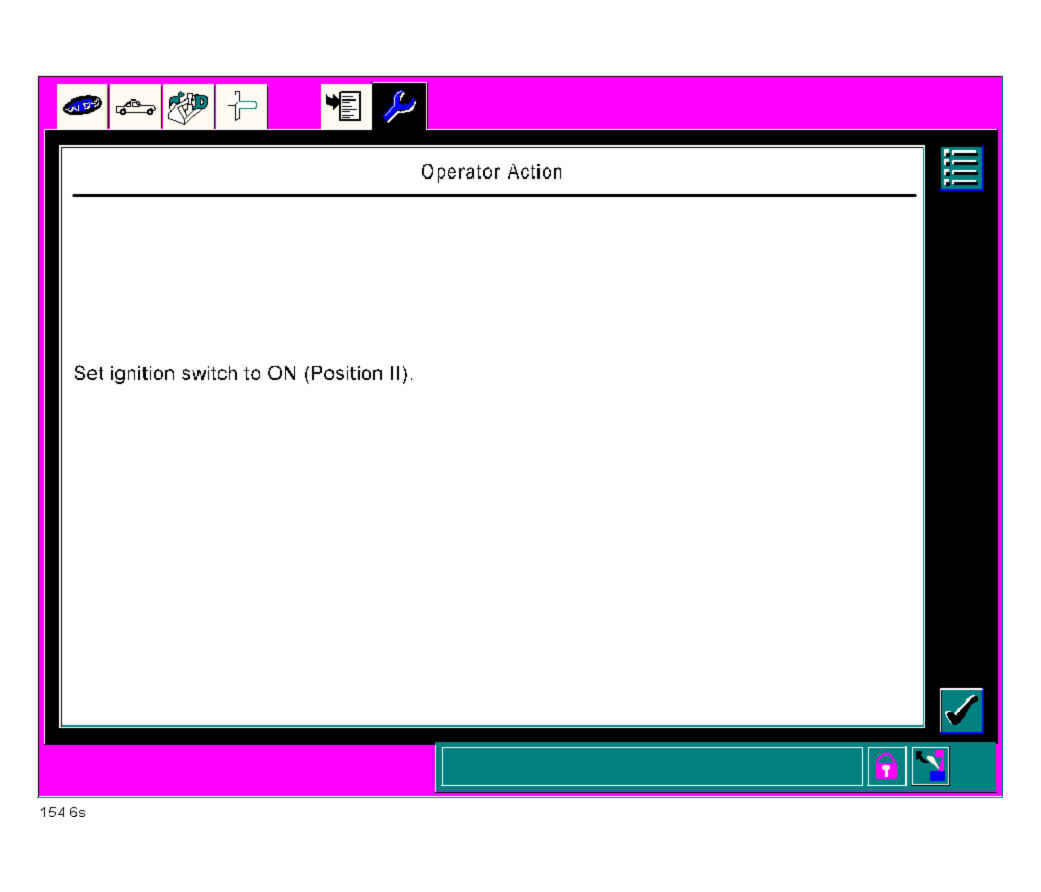

Fig 13: Set Ignition Switch To On Position Display Screen
Courtesy of MAZDA MOTORS CORP.

Fig 14: Diagnostic Test Display Screen
Courtesy of MAZDA MOTORS CORP.
Confirm VIN.
- If displayed VIN is not appropriate, choose 'NO' and enter a correct VIN on the next screen.

  Fig 15: VIN Number Display Screen
  Courtesy of MAZDA MOTORS CORP.
Provide VIN, Part Number, Serial Number, Outcode and Error Control to obtain Incode on the Incode website.
- In this sample, IDS/PDS tries to access PCM. In this case, you are required to provide VIN, Part Number and Serial Number shown on the screen and Outcode and Error Control for PCM to obtain Incode.

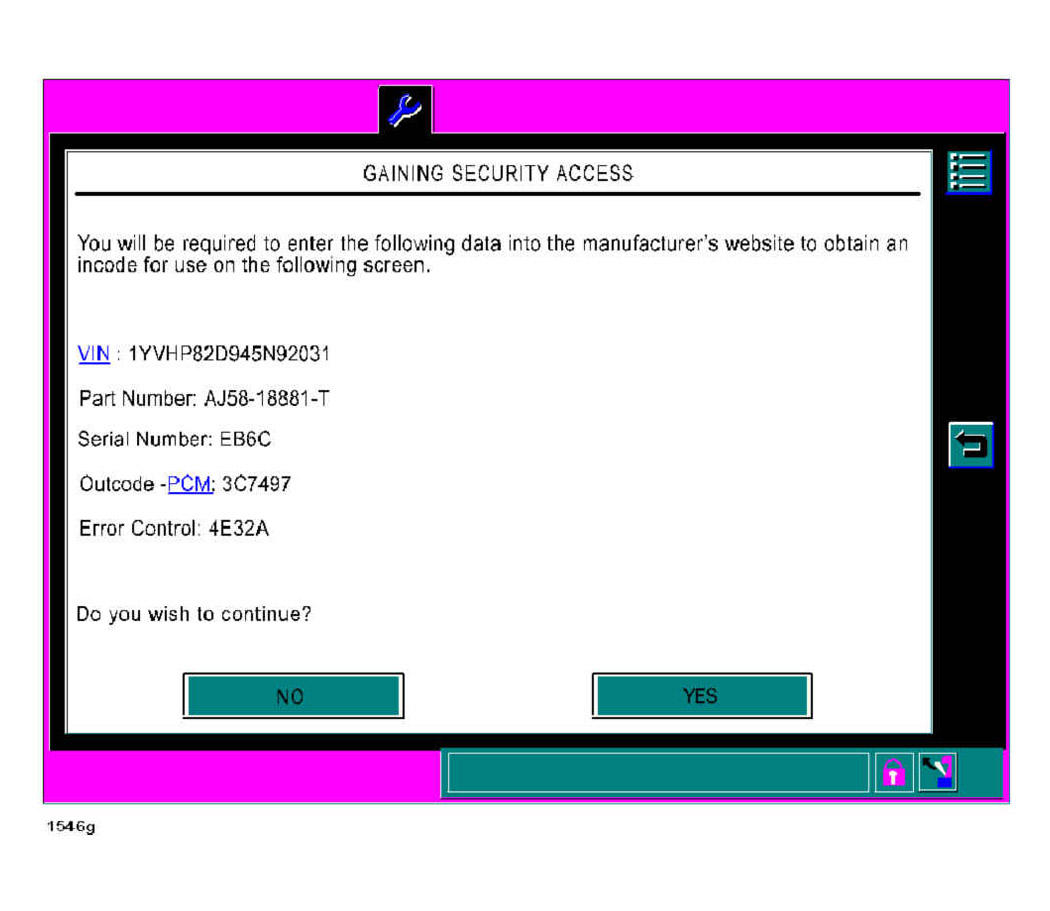

  Fig 16: VIN Number Display Screen
  Courtesy of MAZDA MOTORS CORP.
Enter Incode for each module.

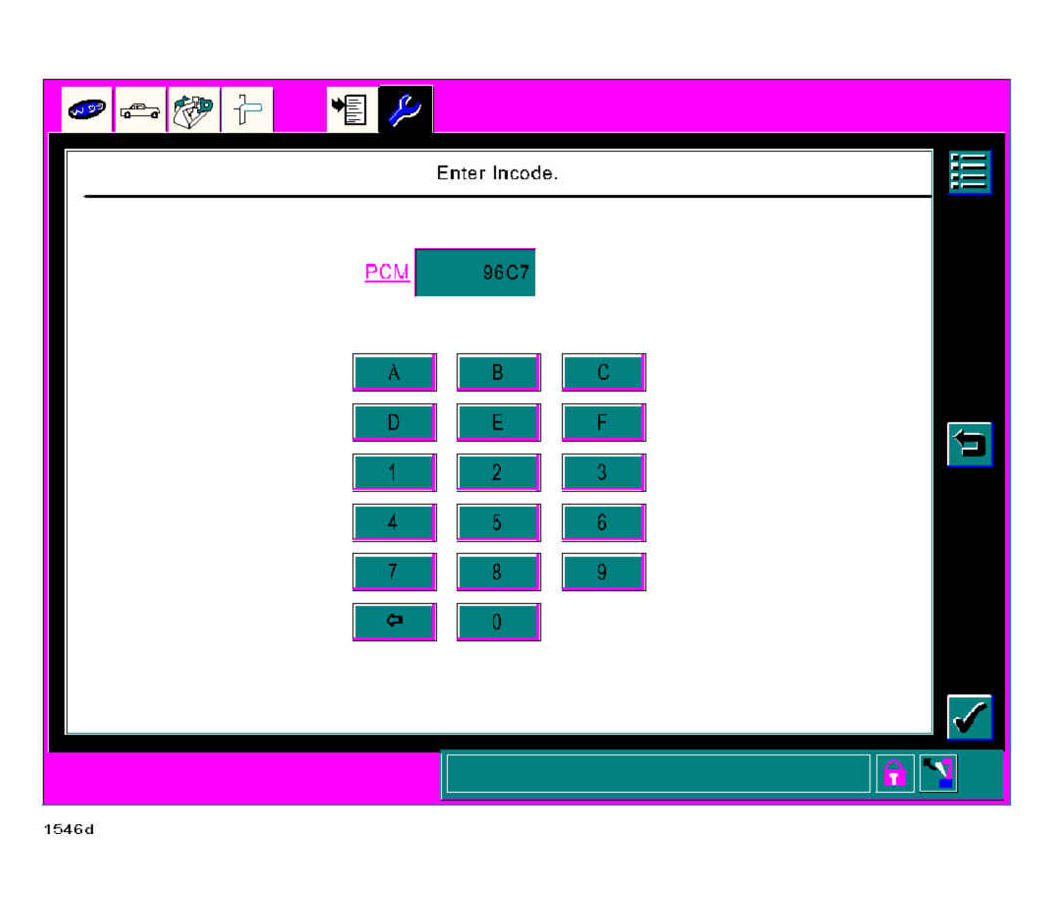

Fig 17: Incode Display Screen
Courtesy of MAZDA MOTORS CORP.
Security access has been achieved.

Fig 18: Diagnostic Test Display Screen
Courtesy of MAZDA MOTORS CORP.
Perform immobilizer functions as normal.
