On-Board System Readiness Tests Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Monitor the OBD-II system operating status using the WDS or equivalent.

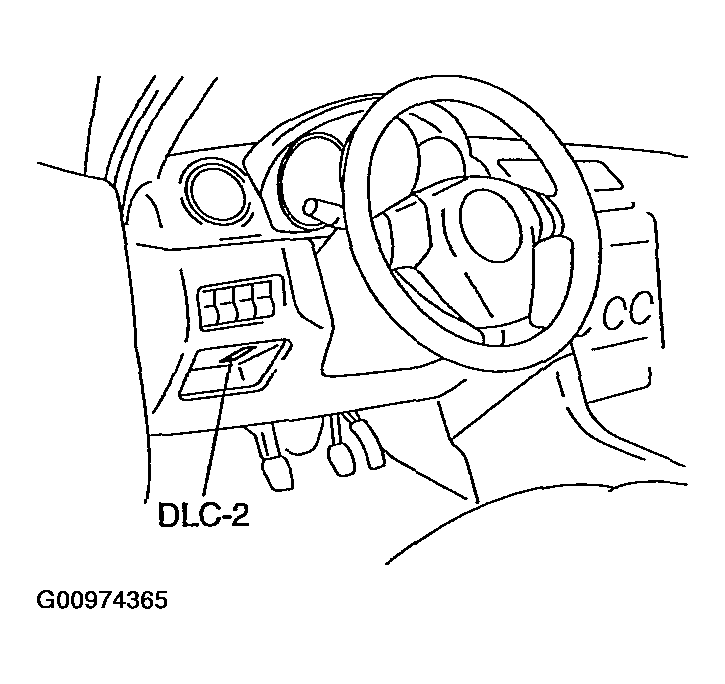

    Fig 1: Identifying DLC-2 Connector Location
    G00974365Courtesy of MAZDA MOTORS CORP.
