Diagnostic Monitoring Test Results Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Access to the diagnostic monitoring test results and read the test results using the WDS or equivalent.

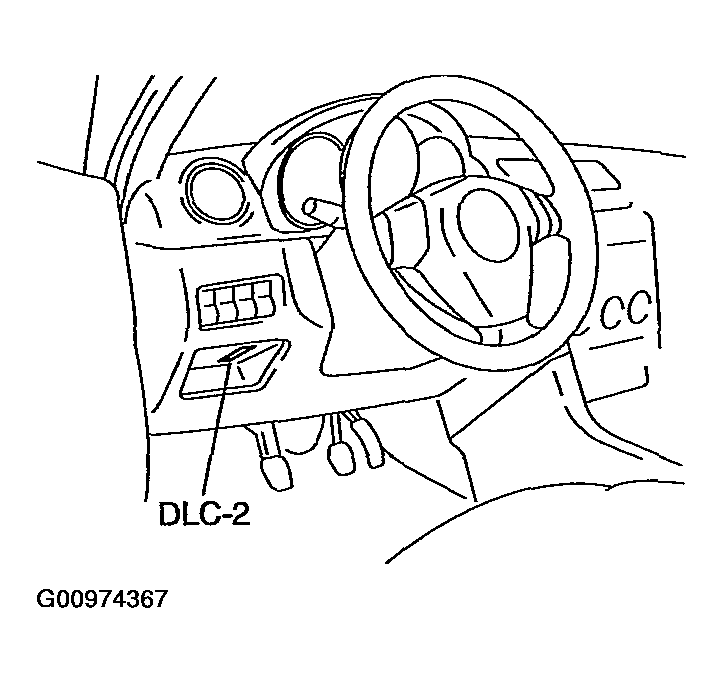

    Fig 1: Identifying DLC-2 Connector Location
    G00974367Courtesy of MAZDA MOTORS CORP.
