Diagnostic procedure

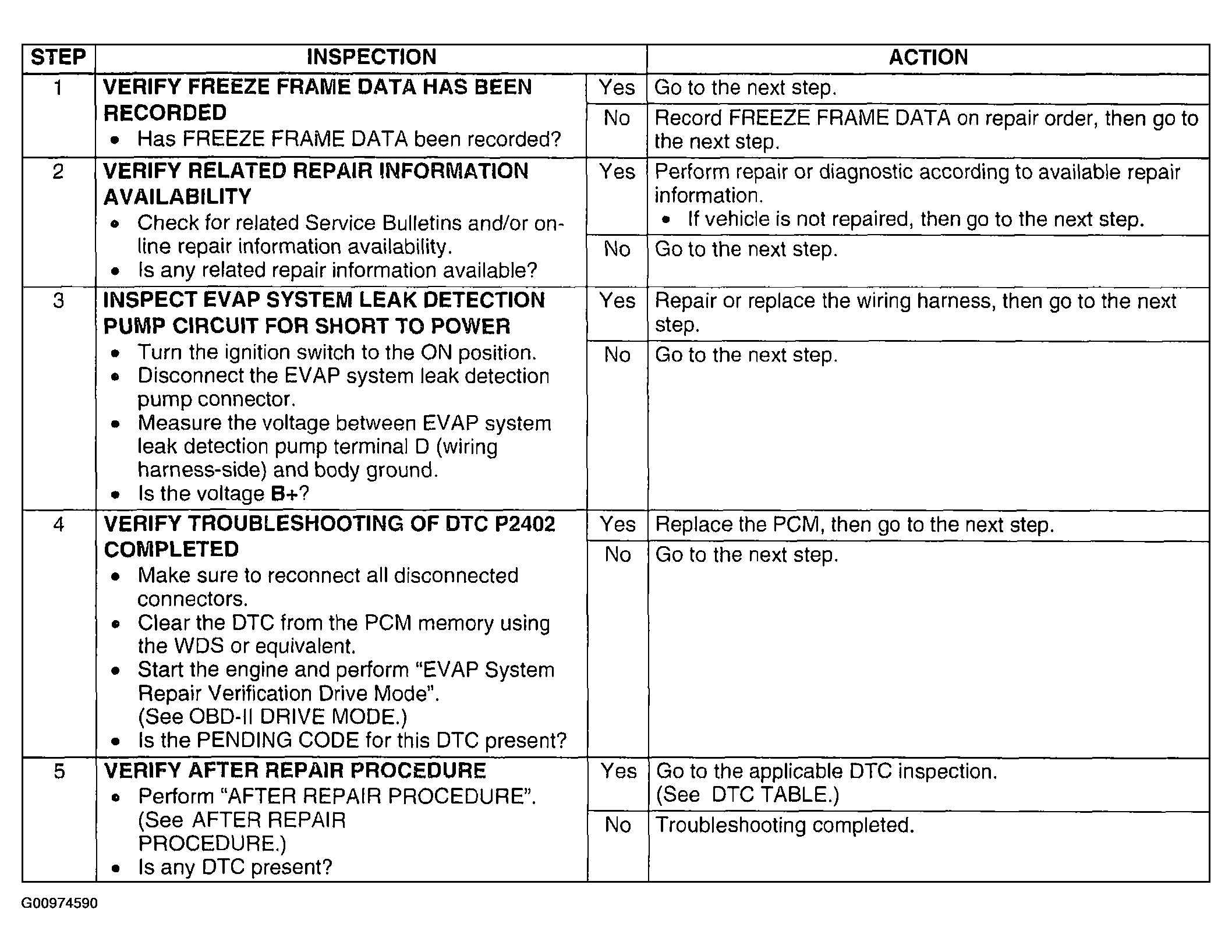

Fig 1: DTC P2402: Diagnostic Procedure Chart (Steps 1-5)
G00974590Courtesy of MAZDA MOTORS CORP.
